INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9008200
SYNOPSIS:

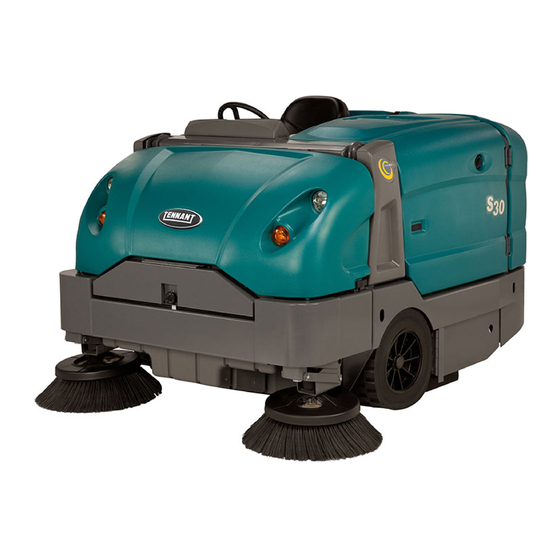

This kit contains the parts needed to install an overhead guard kit on S30, S30 XP, and S30 X4
machines (serial numbers 002100 and above).
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)
PREPARATION:
1. Park the machine on a clean level surface,
turn off the machine, remove the key, and set
the parking brake.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
2. Open the right rear cover.
INSTALLATION:
NOTE: It is recommended that two persons install
this kit, due to it being necessary for two persons
to lift the assembled overhead guard onto the
machine and one person to hold parts while the
other installs the assembly/mounting hardware.
NOTE: Do not completely tighten assembly/
mounting hardware until instructed to do so at the
end of this Instruction Bulletin. All hardware is
tightened after the overhead guard is completely
installed onto the machine.

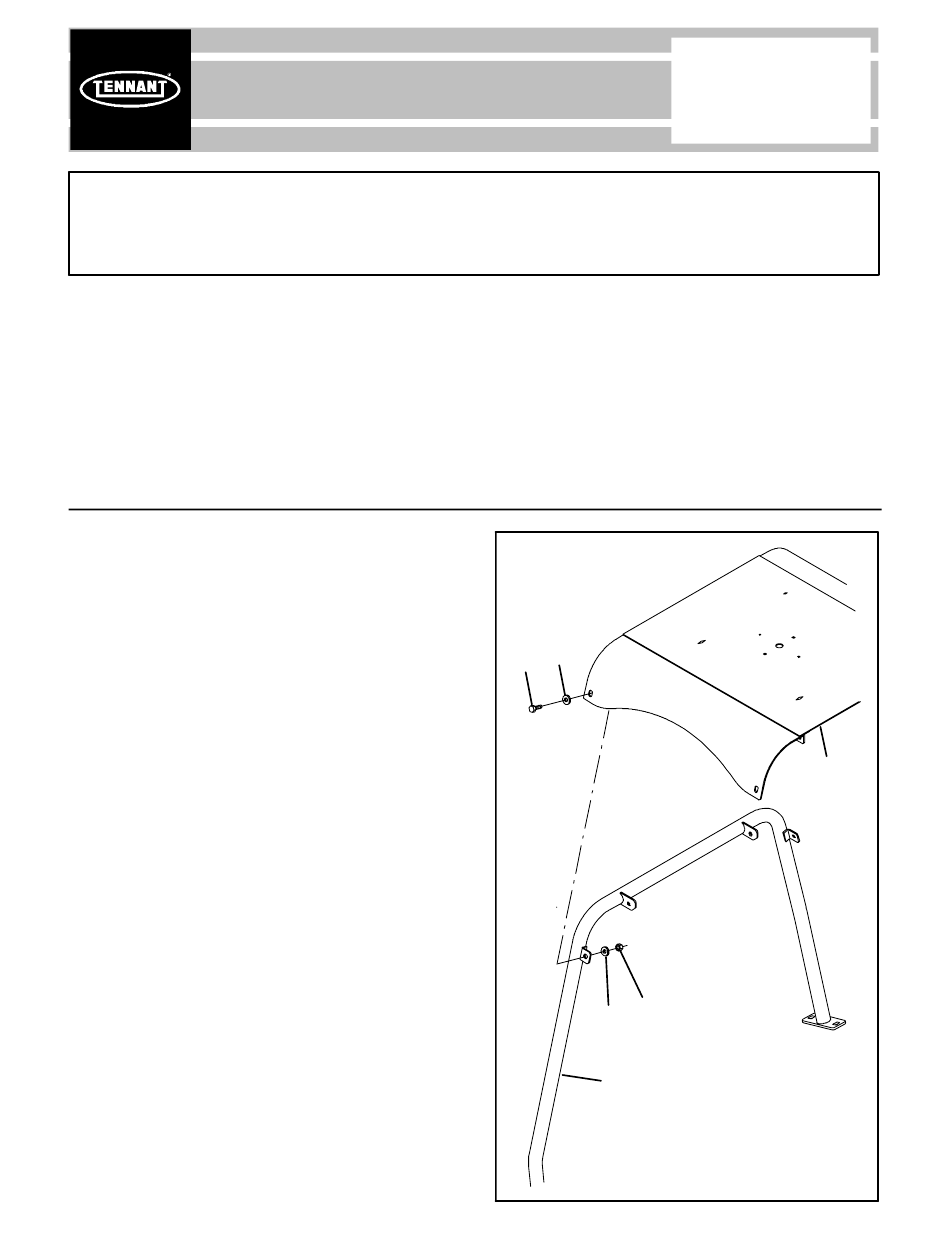

1. Use four hex screws (6), eight flat washers
(8), and four lock nuts (9) to install the right
guard leg (3) onto the overhead guard top (1).
Refer to Fig. 1.
IB 9008211 (10- -2010)
No. 9008211
Machine: S30/S30 XP/
Published: 10- -2010
Rev. 00
8
6
9
8
3
FIG. 1
S30 X4
1
1
