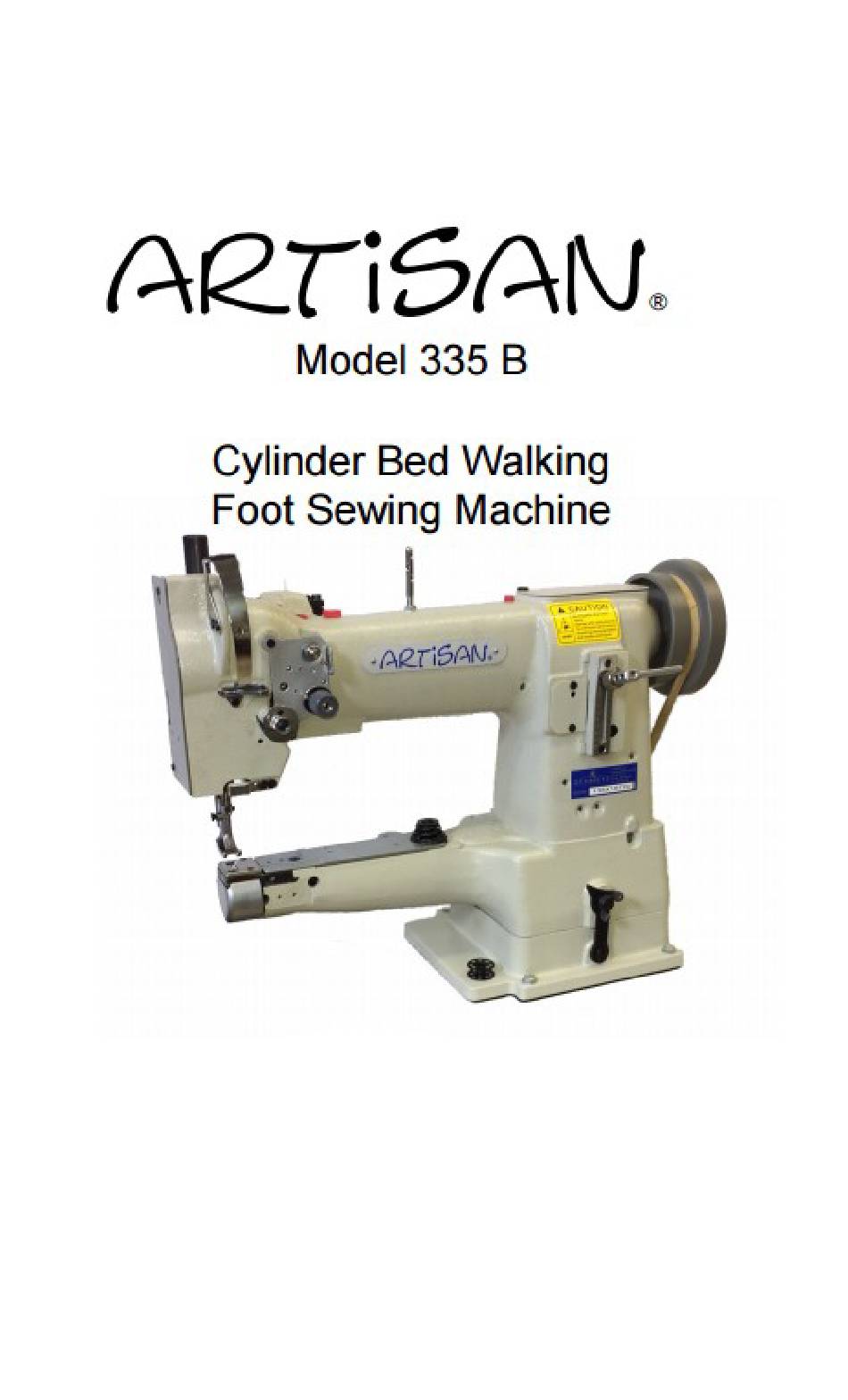

- Page 1 Threading Guide...
- Page 2 Blank on purpose...
- Page 3 Artisan 335B Table of Contents Page 4 Step 1…...Thread stand Page 5 Step 2…..Upper thread post Page 6 Step 3…..Threading Image Page 7 Step 4…..Threading Route Page 8 –11….Closer view of threading Page 12 Step 5…..Threading the libra Page13 Step 6…..Felted thread guide &...
- Page 4 Artisan 335B Step 1 Fig 4-1 The thread stand and thread guide need to be parallel to each other for the correct tension to be maintained. The thread will move off the spool to the back of the guide feeding from...
- Page 5 Artisan 335B Step 2 Fig 5-1 The thread will go thru the top hole then around the pin passing thru the bottom hole as shown in image above.
- Page 6 Artisan 335B Step 3 Fig 6-1 The thread then passes thru the bot- tom tension guide opening as illus- trated above.
- Page 7 Artisan 335B Step 4 Fig 7-1 1. Start from tension post to lower guide opening 2. Through lower opening under rod 3. Over and around ,pulled into top tension screw guide 4. Down and around lower tension guide 5. Over rod 6.
- Page 8 Artisan 335B Fig 8-1 Closer view of operation 1, 2, and 3 from previous page 7...
- Page 9 Artisan 335B Closer view of operation 4, 5, 6, 7, and 8 from previ- ous page 7 1. Around guide all the way up past inter thread hook. Pulling thread all the way into guide groove. Fig 9-1...
- Page 10 Artisan 335B Fig 10-1 Another view of lower guide retainer...
- Page 11 Artisan 335B Fig 11-1 Another view of lower guide retainer...
- Page 12 Artisan 335B Step 5 Fig 12-1 Up through and to thread take-up libra Fig 12-2 Through lower opening on thread take-up libra. Down past the left side of the libra cover.
- Page 13 Artisan 335B Step 6 Fig 13-1 Down through felted thread guide Fig 13-2 Passing through eyelet on the upper part of the center press shaft.
- Page 14 Artisan 335B Step 7 Fig 14-1 Finally down the left side of the needle passing through from left to right the eye of the needle.
- Page 15 Artisan 335B Fig 15-1 Pulling thread down thru center opening and to the rear of the presser foot...
- Page 16 Artisan 335B Notes...
- Page 17 Artisan 335B Notes...
- Page 18 Notes...
- Page 19 Artisan 335B Notes...
