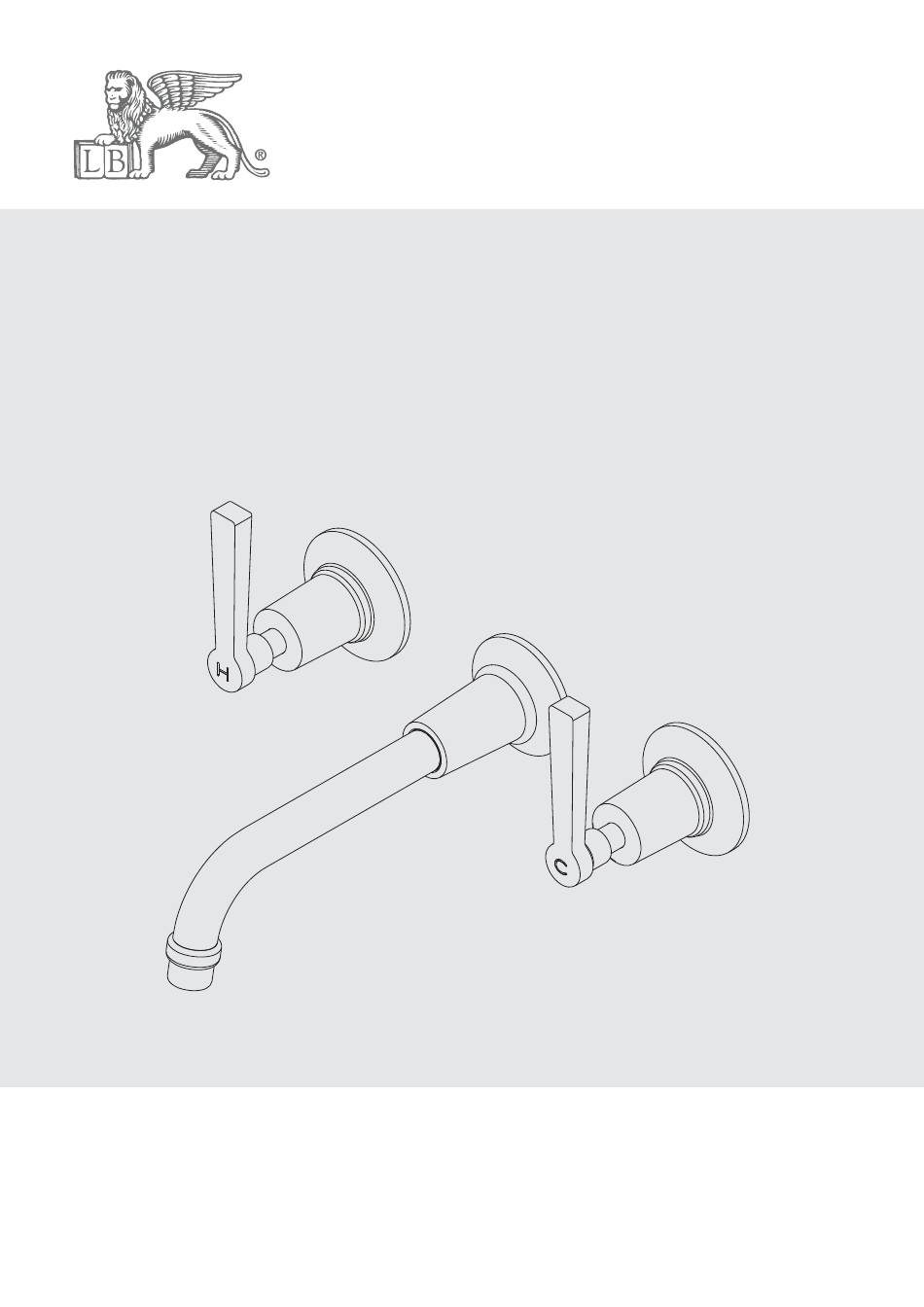

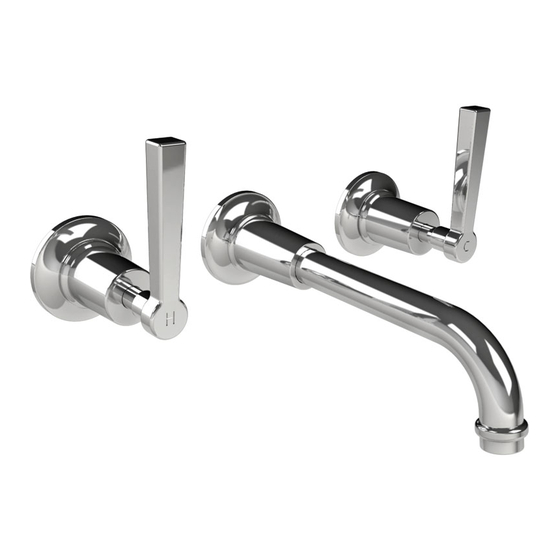

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS M2-1111 LEVER WALL-MOUNTED 3-HOLE BASIN MIXER TRIM TO SUIT R1-4016 ROUGH.
- Page 2 Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...
- Page 3 in Inches (& Millimetres) Ø2 3/8" (Ø60mm) Ø2 3/16" (Ø55mm) 7 15/16" (202.4mm) 3/8" (9mm) 2 3/8" (60mm) Ø1 15/16" 100° (Ø50mm) 3 1/4" 10° (83.2mm) 8" (203.3mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
- Page 4 Steps 1-3 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Once the front wall is finished, remove the protective caps for installing the trim. Disassemble central canopy and spout by loosening the grub screw.
- Page 5 Steps 4-5 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install the handle by fixing screw through the stem extension. After installation, turn on valve to do water checking.
-
Page 6: Exploded View
Exploded view Set screw (292598) O-ring (004640N) Screw (008198) Handle ( C ) (069826C) Screw (008488) O-ring (063066N) Canopy (018014) Stem extension (110473) Canopy (000115) Adaptor (067773) Aerator housing (305856-54) Nut (009620) Clip (012242) Aerator insert (553661N) O-ring (004045) Adaptor (057507) Oil-seal (010519N) Handle ( H ) (069826H) Escutcheon (071325) - Page 7 Fault Cause Rectification Drips from spout. Gasket is misfitted or damaged. Check for gasket placement. Aerator leaks or has an inconsistent Aerator is dirty or misfitted. Unscrew the aerator to check rubber water flow pattern. packing or replace the aerator.
-
Page 8: Safety Tips
Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 9: Guarantee Of Quality
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
