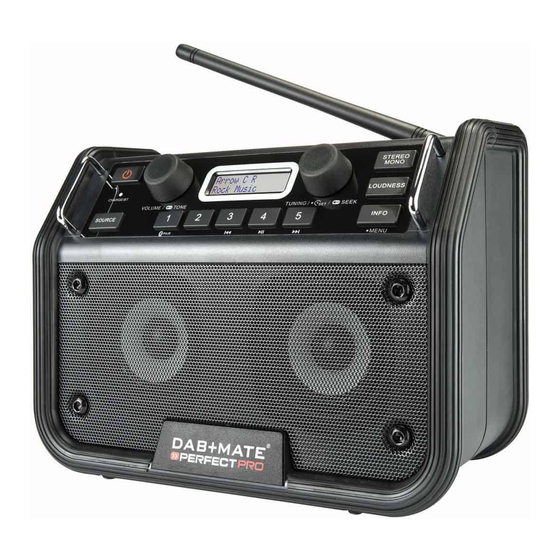

PERFECTPRO DAB+MATE Operating Instruction

Hide thumbs Also See for DAB+MATE:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions
Perfectpro B.V.
Everdenberg 9A
Oosterhout
The Netherlands
3A81bX6L00000
DAB+MATE
Operating instruction
GB
Gebruiksaanwijzing
NL
Bedienungsanleitung
D
Mode d'emploi
F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAB+MATE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PERFECTPRO DAB+MATE

Summary of Contents for PERFECTPRO DAB+MATE

  • Page 1 Perfectpro B.V. Everdenberg 9A Oosterhout Operating instruction The Netherlands Gebruiksaanwijzing Bedienungsanleitung Mode d’emploi DAB+MATE 3A81bX6L00000...
  • Page 2 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Perfectpro B.V. is under license. WARNING! WARRANTY BECOMES VOID ONCE THE DEVICE CABINET HAS BEEN OPENED OR ANY MODIFICATIONS OR ALTERATIONS TO THE ORIGINAL DEVICE HAVE BEEN MADE.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Read these instructions. The Shock Hazard Marking and Associated Graphical Symbol is Keep these instructions. provided on the back of unit. Heed all warnings. Apparatus shall not be exposed to dripping or splashing and no Follow all instructions. objects filled with liquids, shall be placed on the apparatus.

  • Page 4: Controls And Connections

    Controls and connections 1. Source button 10. Preset 5/Fast Forward button 2. Power On/Off button(Power on/Standby) 11. Stereo/Mono button 3. Charging indicator LED/Bluetooth status indicator 12. Loudness On/Off button 4. Preset 1/Bluetooth pairing button 13. Info/Menu button 5. Volume control/Tone control 14.
  • Page 5 Controls and connections 19. FM/DAB+ antenna 20. Handle 21. Power cord storage 22. AC power cord 23. Battery compartment...
  • Page 6 Controls and connections 24. Storage compartment 25. Alkaline/NiMH/NiCad rechargeable battery switch 26. Socket for software upgrade...

  • Page 7: Power The Radio

    Power the radio 1. Installing the batteries, first turn battery cover fixture anti-clockwise to loosen and open the battery cover. Note: Before you insert the batteries, if you use non-rechargeable batteries, make sure the NiMH/Alkaline switch is switched to Alkaline position. 2.

  • Page 8: Charging The Batteries

    I N S TA L L O N LY P R E - C H A R G E D ( TO T H E S A M E V O LTA G E LEVEL) NIMH BATTERIES WITH “LOW SELF-DISCHARGE” CHARACTERISTICS. USE OF ORIGINAL PERFECTPRO BATTERIES IS HIGHLY RECOMMENDED.
  • Page 9 New batteries will only reach their full capacity after some time of use It is advised to use Perfectpro rechargeable batteries as the radio and (several charge – discharge cycles).

  • Page 10: Using The Radio For The First Time

    Using the radio for the first time 1. Place your radio on a flat surface. 2. Straighten up the antenna. 3. Plug the AC power cord into an AC socket. The display will show “Welcome to Digital Radio” for a few seconds.

  • Page 11: Selecting A Station - Dab

    Selecting a station – DAB 1. Press the Power On/Off button to switch on your radio. 2. Press and release the Source button until the DAB mode is selected. The display will show the name of the radio station currently selected. 3.

  • Page 12: Finding New Stations - Dab

    Display mode – DAB Your radio has a range of display options when in DAB mode: 1. Press and release the Info/Menu button to cycle through the various modes. a. Scrolling text (DLS) displays scrolling text messages such as artist/track name, phone in number, etc.

  • Page 13: Manual Tuning - Dab

    Manual Tuning – DAB Manual tuning allows you to tune directly to the various DAB band III channels. 1. Press and hold the Info/Menu button for 2 seconds, display will show “Full scan”. 2. Rotate the Tuning control knob to find “Manual tune”. Press and release the Tuning control knob to enter DAB channels in the list.

  • Page 14: Prune Stations

    Prune stations If you move to a different part of the country, some of the stations which were listed may no longer be available. Also from time to time, some DAB services may stop broadcasting, or may change location or frequency. Stations which cannot be found, or which have not been received for a very long time are shown in the station list with a question mark.

  • Page 15: Manual Tuning - Fm

    Manual tuning – FM 1. Press the Power On/Off button to switch on your radio. 2. Press the Source button to select FM waveband. 3. Rotate the Tuning control knob to tune to a station. The frequency will change in steps of 100 kHz. When the waveband end is reached, the radio will recommence tuning from the opposite waveband end.

  • Page 16: Stereo / Mono Switching

    Stereo / Mono switching If the FM radio station being listened to has a weak signal, some hiss may be audible. It is possible to reduce this hiss by forcing the radio to play the station in mono rather than stereo. 1.
  • Page 17 Preset stations in DAB and FM modes There are 5 memory presets for each DAB/FM wavebands. 1. Press the Power On/Off button to switch on your radio. 2. Tune to the required station as previously described. 3. Press and hold the required Preset button until the display shows e.g. Preset 1 stored. The station will be stored under the chosen preset button.

  • Page 18: Listening To Music Via Bluetooth Streaming

    Source button to select Bluetooth function. “Bluetooth Pairing” will show 3). If ‘DAB+MATE’ shows in your Bluetooth device list but your device cannot on the display. The Bluetooth status indicator on the radio will flash a connect with it, please delete the item from your list and pair the device fast blue to show the radio is discoverable.

  • Page 19: Display Modes - Bluetooth

    Display modes – Bluetooth Your DAB+MATE has a range of display options when in Bluetooth mode. Note that the availability of information depends on the specific media format. 1. Press and release the Info/Menu button to cycle through the different options.

  • Page 20: Disconnecting Your Bluetooth Device

    Playing a previously-paired Bluetooth source device The DAB+MATE can memorize up to 2 sets of paired Bluetooth source devices, when the memory exceed this amount, the earliest paring device will be over written from the device. If your Bluetooth source device already paired with the DAB+MATE previously, the unit will memorize your Bluetooth source device and it attempts to reconnect with a Bluetooth source device in memory which is last connected.

  • Page 21: Equalizer Function

    Equalizer function 1. Press the Power On/Off button to switch on your radio. 2. Press and hold the Volume/Tone control to enter the EQ setting menu. 3. Rotate the Volume/Tone control to select your required mode. Then press the Volume/Tone control to confirm the selection.

  • Page 22: Clock Time Setting

    Clock time setting Setting the time format 1. Press the Power On/Off button to turn on the radio. 2. Press and hold the Info/Menu button to access the menu for the current mode. Rotate the Tuning control knob to select “System” and press the Tuning control knob to enter the system settings menu.

  • Page 23: Automatically Updating The Clock

    Automatically updating the clock Your radio will normally update the clock automatically using the DAB or FM signal. If no signal is available, then you need to set the time manually. After a power failure the radio will then set its clock the next time that you turn on the radio in DAB or FM mode.

  • Page 24: Setting The Clock Manually

    Setting the clock manually 1. With your radio switched on, press and hold the Info/Menu button to access the menu for the current mode. 2. Rotate the Tuning control knob to select “System” and press the Tuning control knob to enter the system settings menu.

  • Page 25: Language Selection

    Language selection By default your radio will display all menus and messages in English. You can choose your preferred language. 1. Press the Power On/Off button to switch on your radio. 2. Press and hold the Info/Menu button to access the menu for the current mode. 3.

  • Page 26: Socket For Software Upgrade

    USB upgrade port. You should not attempt to update your radio unless it is recommended to you by Perfectpro Customer Services. Updating the software may remove all radio station presets and settings from your radio.

  • Page 27: Software Version

    Software version The software display cannot be altered and is just for your reference. 1. With your radio switched on, press and hold the Info/Menu button to access the menu for the current mode. 2. Rotate the Tuning control knob to select “System” and press the Tuning control knob to enter the system settings menu.

  • Page 28: Auxiliary Input Socket

    Charging MP3 player or mobile phone WARRANTY DAB+MATE is capable of charging a MP3 media player or mobile phone This radio has a 2 year limited warranty. via USB slot when the radio is in power on or standby mode and in DAB/ FM, Bluetooth, AUX IN mode.

  • Page 29: Specifications

    Specifications Power Requirements Electronic features: AC Power: AC 100-240V 50/60Hz 18W Speaker: 3” x 2, 8 ohm, 12W full range waterproof-stereo Batteries: 6 x UM-2(C size, LR14) Output Power: 3W+3W 10% T.H.D. @ 1 kHz @ battery 9V Alkaline or NiMH/Nicad battery 5W+5W 10% T.H.D.
