Quickstart Guide
DIGISKY
Exposure Meter for Flash and Ambient Light
Essentials
Preparations required for use of the exposure meter
and its basic functions are described in these instructions.
Please check that the exposure meter and accessories
as detailed below are included in the box. If the contents
are incomplete, please contact your local dealer.
▪
DIGISKY exposure meter
▪
V070A rechargeable battery
▪
Power supply and USB connector cable
▪
Carrying strap
▪
Quickstart guide
The latest version of the detailed operating instructions
can be found and downloaded from the product page at
www.gossen-photo.de
. Please download these and read
them carefully.
The DIGISKY is always delivered with the latest firmware.
Should a newer version be available, you can download
it together with the SkyRefresh update program and a
detailed update instructions from the product page.
Afterwards you can do the update of the meter yourself.
1.18/10.19
Contents
Page
15448
2
3
4
5
6
7
8
9
10
11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGISKY and is the answer not in the manual?

Questions and answers

Related Manuals for Gossen MetraWatt DIGISKY

Summary of Contents for Gossen MetraWatt DIGISKY

  • Page 1: Table Of Contents

    . Please download these and read them carefully. The DIGISKY is always delivered with the latest firmware. Should a newer version be available, you can download it together with the SkyRefresh update program and a detailed update instructions from the product page.

  • Page 2: Preparation

    Use the V070A rechargeable battery and the USB battery charger included with the exposure meter. Switch your DIGISKY off or wait until the exposure meter is switched off automatically. Unscrew the battery cover at the back of the meter with a (Philips) recessed head screwdriver, and then pull it down and out of the housing.

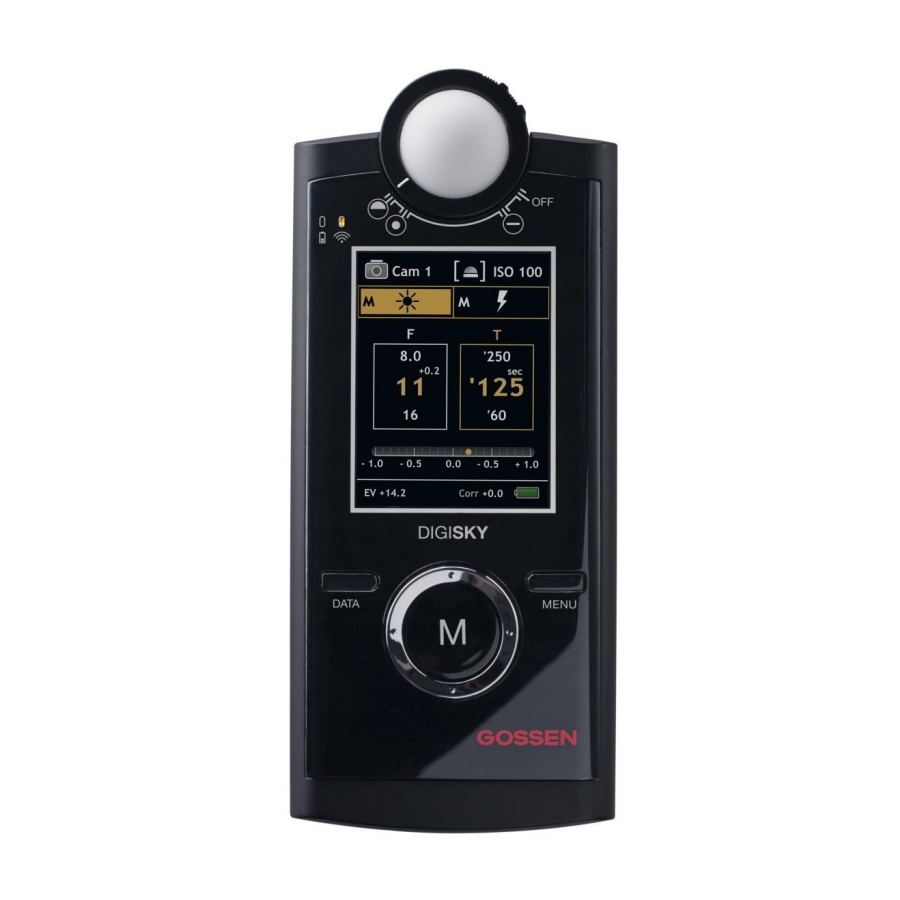

  • Page 3: Meter Overview

    Meter Overview Diffuser ring for incident light / User Retractable reflected light measurement, Cam 1 diffuser head Meter cell for Cam 2 for spherical/ reflected light speed Cam 3 flat /reflected measurement Movie measurement Incident light Spherical diffuser Switch device off Reflected light Incident light, flat diffuser...

  • Page 4: Navigation

    Navigation Main Menu Use the ring controller Press and hold menu key to select a user to select a menu to select a setting Use the ring controller Press the measurement key to select a submenu to confirm Use the measurement key to select a value to exit the menu GOSSEN...

  • Page 5: Turn On

    Spherical incident light measurement RF Function Selection: All / Group . Reflected light measurement Radio Flat incident light Use DATA key and ring measurement controller DIGISKY off to select all or groups GOSSEN Foto- und Lichtmesstechnik GmbH...

  • Page 6: Ambient Light

    Ambient Light Use the ring Use the ring controller controller to set time / f-stop to select the desired value Press the measurement key to make a measurement. Contrast measurement: press and hold the measurement key. Contrast measurement: use the data key to display the average, minimum and maximum value. GOSSEN Foto- und Lichtmesstechnik GmbH...

  • Page 7: Flash Light

    Flash Light Radio Use the ring Use DATA key and controller ring controller to select flash groups All / ST G1 to G4 (Elinchrom) to select the desired A to D (Phottix) synchronization LP 1 to LP40 speed. (Broncolor) Press the measurement key Approx.

  • Page 8: Movie

    Movie Movie Settings f-stop, sector angle, sensitivity etc. are set in the main menu. Use the menu key EV analog display to switch the Measured value display from with correction f-stop value to photometric Illuminance, value. luminance Shutter CINE angle speed Press the measurement key to perform a measurement.

  • Page 9: Fcc & Ic (Usa)

    The following data, required for the fulfillment of FCC and IC regulations, are referred to the meter mentioned in this document. Product name: DIGISKY Model number: H260A...

  • Page 10: Safety Precautions

    Safety Precautions In the event of malfunctioning, switch the light meter off immediately. If the event that smoke develops or unusual odors become apparent, which are caused by either the measuring instrument or the power supply, disconnect from mains power immediately and remove the rechargeable battery from the instrument in order to prevent possible fire.

  • Page 11: Disposal Note

    Disposal Note This icon indicates that this product must be disposed of separately. The following must be observed by users in European countries: ▪ This product may only be disposed of separately at a designated collection point. It may not be disposed of with household trash.
  • Page 12 Printed in Germany – Subject to change without notice GOSSEN Foto- und Lichtmesstechnik GmbH I Lina-Ammon-Str.22 I D-90471 Nürnberg I Germany Telefon: +49 911 800621-0 I Fax: +49 911 800621-29 I E-Mail: info@gossen-photo.de www.gossen-photo.de GOSSEN Foto- und Lichtmesstechnik GmbH...
