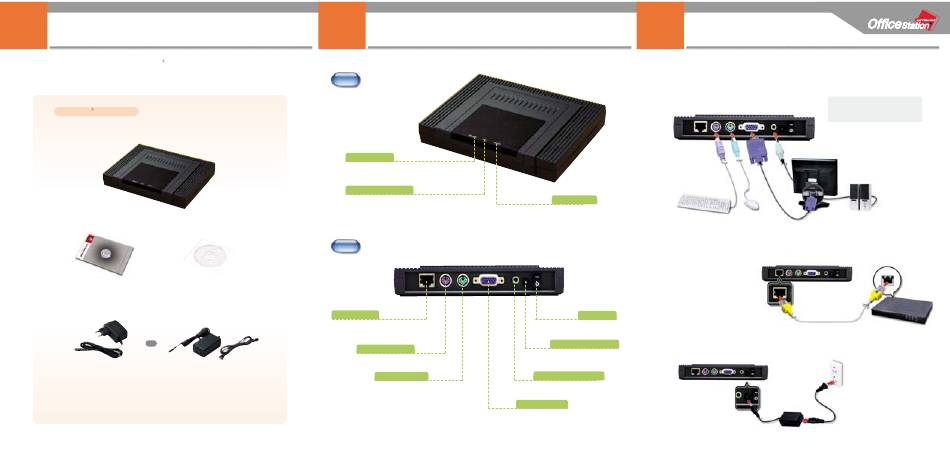

NComputing OfficeStation L110 Quick Installation Manual page 2

1
Check Your Package Contents
※Before you set up and operate your OfficeStation (L110) terminal, read and follow the safety
instructions in your User's Guide
OfficeStation (L110) System
Quick Installation Guide Software Installation CD
or
AC Power Adapter AC Power Adapter + AC Power Cable
2
Hardware Overview
Front
Power Indicators
Lights up when the system is on.
LAN Operation Indicator
Blinks when OfficeStation communicates with Host PC.
Lights up when OfficeStation configuration is
ready communicate with Host PC.
Rear
LAN (RJ45) Port
To connect OfficeStation to the Host PC,
plug the network cable into the Host PC.
PS/2 Keyboard Port
Connection for a PS/2 keyboard.
PS/2 Mouse Port
Connection for a PS/2 type mouse.
Connection for an external monitor.
3
Quick Setup
1
Connecting the peripheral device to OfficeStation(L110).
Ready Indicator
2
Connect Ethernet cable from
OfficeStation to switch/router
(or PC directly).
Power Switch
Turns On/Off the system.
3
Connect Power Adapter.
Power Inlet(DC-IN) Jack
Connection for AC power adapter.
Speaker/Headphone Jack
Connection for speakers or headphone.
VGA Monitor Port
Note
You can easily connect all ports and jacks
with OfficeStation turned over.
> >
continued
