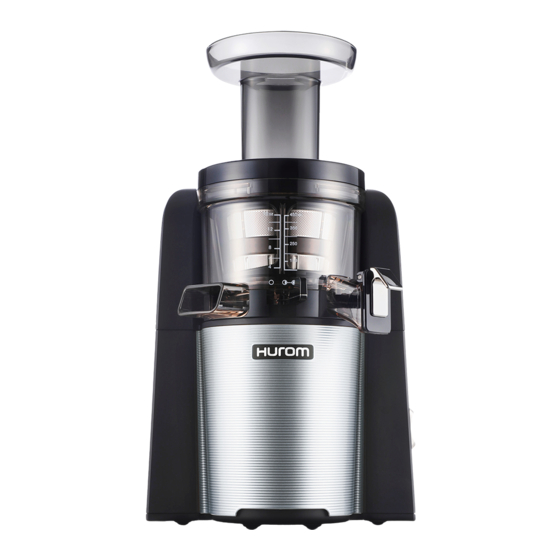

HUROM HV Series Manual

Slow juicer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
02
Precautions for safe use
08
How to use
12
How to trim the
ingredients! / Use by
strainer types
16
Before Requesting for
Repair
Hurom Juicer Household Use (Warranty Included)
1. Read 'Precautions for safe use' (Page 2) and use the appliance properly.
2. After finish reading the manual, keep it in a convenient location for future reference.
3. Do not use it abroad which has different power supply and voltage.
4. Any quality improvements are subject to change without notice.
HV Series
04
Terms for Parts
09
Cautions during
operation
13
When squeezing screw
stops during operation /
Caution when using
operation button
20
Before Requesting for
Repair
06
How to assemble
10
How to use control
lever[by mode / by
ingredients (Juicing)]
14
How to Clean

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HV Series and is the answer not in the manual?

Questions and answers

Related Manuals for HUROM HV Series

Summary of Contents for HUROM HV Series

  • Page 1 Before Requesting for Repair Repair Hurom Juicer Household Use (Warranty Included) 1. Read ‘Precautions for safe use’ (Page 2) and use the appliance properly. 2. After finish reading the manual, keep it in a convenient location for future reference. 3. Do not use it abroad which has different power supply and voltage.

  • Page 2: Precautions For Safe Use

    Precautions for safe use 1. You should read <Precautions for safe use>. 2. You should follow <Precautions for safe use>. 3. Precautions are classified as following. Warning When violating the labeling requirement, it may cause serious injury or death. DO NOT PLUG OR UNPLUG WITH WET HANDS. It may cause electric shock or injury.
  • Page 3 Caution When violating the labeling requirement, it may cause serious injury or damage to the appliance. DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an injury or a failure. WHEN A GAS LEAK IS DETECTED, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WINDOW IMMEDIATELY FOR AIR VENTILATION.
  • Page 4 Terms for Parts 01. Pusher Hopper Chute 02. Hopper Safety Sensor ( ) 03. Squeezing Screw Screw axis 04. Fine Strainer 05. Coarse Strainer 06. Spinning Brush Silicone Brush Brush holder 07. Chamber Chamber packing Pulp Outlet Juice Outlet Control Lever Juice cap packing Juice Cap...
  • Page 5 08. Body Safety Sensor ( ) Shaft Body bump Operating Switch Power Cord Chamber Rack 09. Juice Container Chamber Rack can't be separated after assembling. How to use 10. Pulp Container 11. Cleaning Brush 12. Small Cleaning Brush...

  • Page 6: How To Assemble

    How to assemble Assemble the strainer under Put the assembled part in Assemble the the groove of spinning brush proper place by moving left screw like the just like from the picture. and right in the chamber just like the picture no.1. If they are not completely Put the auger b assembled, the chamber set will not...
  • Page 7 e squeezing After putting the hopper on Mount the chamber set on the e picture. the chamber, turn it clockwise body. until it is locked completely. by turning it to fit in Make sure the lever is placed in rush grooves. position.

  • Page 8: How To Use

    How to use Place the control lever into CLOSE ) position before operating. The chamber will not be assembled with body if the control lever is not into CLOSE( ) position. Press [ON] button to start. 작동스위치 Press [ON] 정회전 누름...

  • Page 9: Cautions During Operation

    Cautions during operation Ingredients which needs caution. It may cause damage or failure. - Fruits with hard seeds such as persimmon, Japanese apricot, lemon, plum, peach etc. that are hard to chew with our teeth should be taken out before extraction. - For stalk vegetables with strong fiber such as water parsleys, celery etc.

  • Page 10: How To Use Control Lever By Mode

    How to use control lever by mode The control lever is between the juice cap and pulp outlet. The control lever has various functions and can help to extract juice by characteristic of ingredients except extract function. Preparation/Extraction mode For general ingredients, the extraction rate is good when you close ( ) the control lever during operation.
  • Page 11 How to use control lever by ingredients (Juicing) Use the control lever by the properties of each ingredients, you can make a more delicious juice. Ingredients Apple, pear, melon, watermelon, strawberry, blueberry, orange, grapefruits, lemon, mango, plum, peach, cherry, persimmon, pineapple, wheat-grass, parsley, celery, dandelion, carrot, ginger, potato, beet, tomato, paprika, broccoli, cauliflower, cabbage, kale, spinach, Cooked sweet potato and pumpkin, Cone.
  • Page 12 How to trim the ingredients! * This is a reference about how to trim the ingredients, so if you have allergy please choose your own proper ingredients. * Please refer to the recipe book for the product usage of each ingredient. For juicing Apple, pear, kiwi, Fruits like apple, pear, kiwi, oriental melon, etc.

  • Page 13: When Squeezing Screw Stops During Operation

    When squeezing screw stops during operation Press [REV] button on the operating switchfor about 2~3 seconds and stop it. Repeat this 2~3 times. [REV] is the button to push back the ingredients upward. [REV] only works while pressing the button, and the rotation of the squeezing screw stops If you release the button.

  • Page 14: How To Clean

    How to Clean Clean the parts Unplug the power cord with dry hands after the unit has been completely stopped. Remove the chamber set from the main body. Twist the hopper to open and lift up the parts in order to disassemble the unit. Use a cleaning brush and wash the chamber set under running water.
  • Page 15 Juice Cap Packing Open the juice cap, hold the chamber and juice cap with one hand, and remove the juice cap packing with your other hand to disassemble. Please be careful not to drop or damage the juice cap and chamber when disassembling the unit. Chamber Packing Pinch the chamber packing with two fingers and twist to separate.

  • Page 16: Before Requesting For Repair

    Before Requesting for Repair If you need additional information, please contact your local Customer Service Center or visit www.hurom.com. When applying for after-sales service, please have the manufacturer’s serial number or bar code available. 01. The main body itself will not work.
  • Page 17 06. Do not insert too many ingredients 07. Do not use in ways other than press- at once. ing on the pusher in the inlet. If you insert an excessive amount of ingredi- It may cause damage, injury, etc. ents or thick ingredients, the unit may stop. 08.
  • Page 18 MEMO...
  • Page 19 MEMO...

  • Page 20: Warranty

    Hurom provides warranty for ten (10) years for the motor and two (2) years for other parts from the date of purchase by the original purchaser. Coverage is valid only with proof of purchase from an Authorized Local Distributor.
