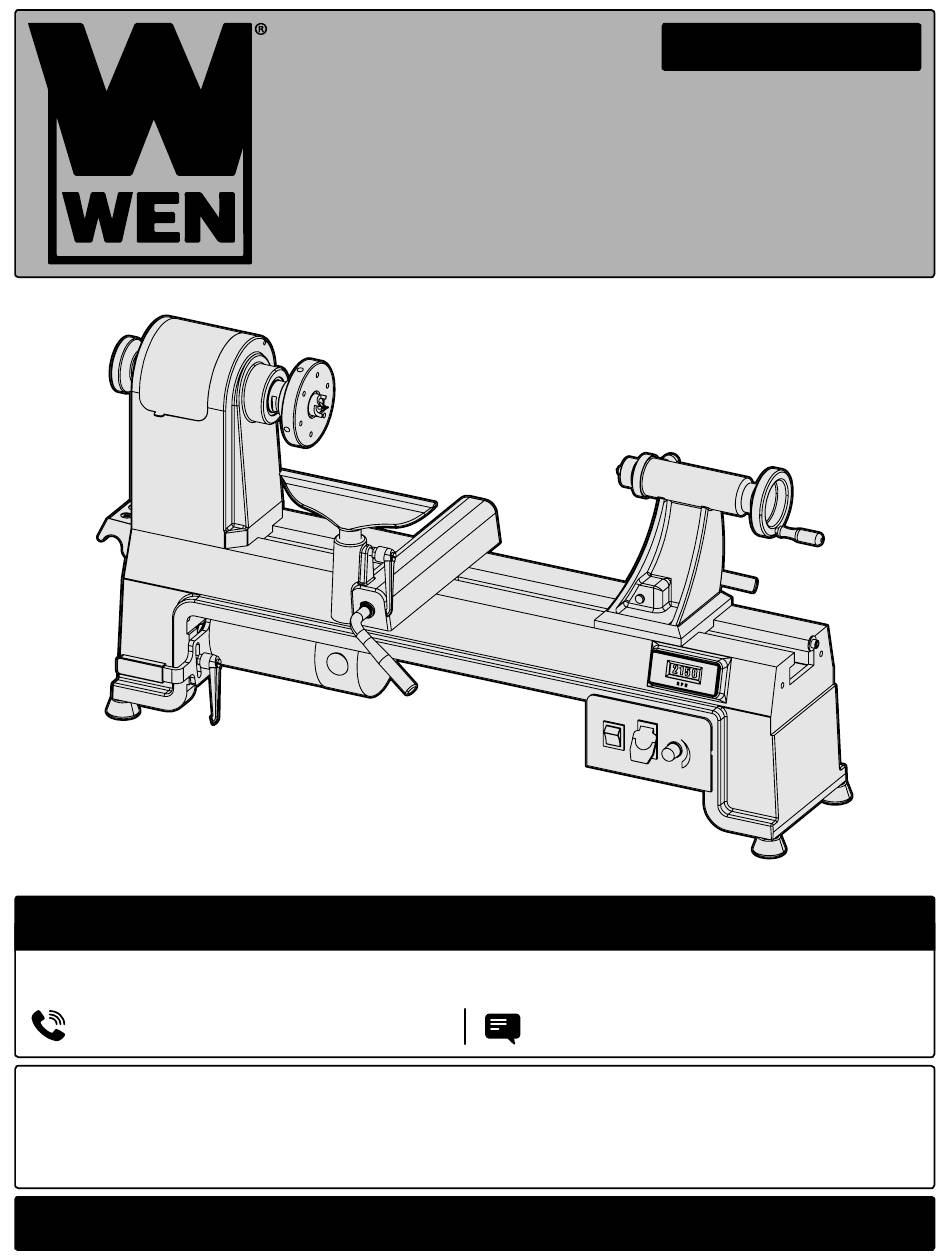

MODEL 34034
14" x 20" VARIABLE
SPEED WOOD LATHE
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 34034 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 34034

Summary of Contents for Wen 34034

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Specific Rules for Your Lathe ................6 Electrical Information ..................8 BEFORE OPERATING Unpacking & Transportation ................9 Know Your Lathe .................... 10 Assembly & Adjustments ................10 OPERATION &...

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing a WEN Lathe. We know you are excited to put your tool to work, but first, please take a mo- ment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Specific Rules For Your Lathe

    SPECIFIC RULES FOR YOUR LATHE WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. TURNING SAFETY PERSONAL SAFETY 1. This lathe is designed and intended for use by prop- 1.
  • Page 7 SPECIFIC RULES FOR YOUR LATHE WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. PREPARING THE LATHE 3. Ensure hands are away from the turning area. 1. When transporting the lathe, carry it by the base or 4.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 9: Before Operating

    UNPACKING & TRANSPORTATION WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure to follow the safety instructions may result in serious personal injury. UNPACKING With the help of a friend or trustworthy foe, carefully remove the Lathe from the packaging. Make sure to take out all contents and accessories.

  • Page 10: Know Your Lathe

    KNOW YOUR LATHE TOOL PURPOSE Lathes are tools that turn your workpiece so you can cut, shape, and sand them. Refer to the following diagrams to become familiarized with all the parts and controls of your Lathe. The components will be referred to later in the manual for assembly and operation instructions.
  • Page 11 ASSEMBLY & ADJUSTMENTS WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your tool. Failure to follow the safety instructions may result in serious personal injury. M8x15 mm Fig.

  • Page 12: Operation & Maintenance

    ASSEMBLY & ADJUSTMENTS INSTALL THE FACE PLATE Fig. 5 When installing the face plate for turning bowls and plates, mount the workpiece onto the face plate prior to installing the face plate on the headstock (see "Mount The Workpiece Onto The Face Plate" on page 19). To install the face plate: 1.
  • Page 13 ASSEMBLY & ADJUSTMENTS ADJUST THE TAILSTOCK Fig. 9 1. Loosen the tailstock locking lever (Fig. 9 - 3) and slide the tailstock along the lathe bed into the desired position. Retighten the locking lever. 2. Loosen the quill locking handle (Fig. 9 - 2) just enough to unlock the tailstock quill.
  • Page 14 ASSEMBLY & ADJUSTMENTS ADJUST THE SPEED Fig. 13 Your variable speed lathe has three speed ranges: Low 250-720 RPM, Medium 600-1700 RPM, and High 1200- 3550 RPM. Always start at slower speeds for rough cuts and larger workpieces. Use faster speeds for refined cuts and detailed work.

  • Page 15: Operation

    OPERATION TURNING TOOLS If possible, select only quality high-speed steel turning tools. High-speed steel tools hold an edge and last longer than ordinary carbon steel. As one becomes proficient in turning, a variety of specialty tools for specific applica- tions can be acquired. The following tools provide the basics for most woodturning projects. Smoothing Bowls 45°...
  • Page 16 OPERATION WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your tool. Failure to follow the safety instructions may result in serious personal injury. MOUNT THE WORKPIECE BETWEEN SPINDLES Spindle turning takes place between the centers of the lathe, with the workpiece being held between the spur center in the headstock and the live center in the tailstock.
  • Page 17 OPERATION NOTE: The following operation instructions serves as a beginning point for some common lathe operations. Practice on scrap material to become familiarized with the operation process and make the necessary adjust- ments before working on your workpiece. SPINDLE TURNING - ROUGHING OUT CUT Roughing out is the first step of the lathe operation, which uses the large roughing gouge tool to smooth out sharp corners to make the workpiece cylindrical.
  • Page 18 OPERATION SPINDLE TURNING - CREATING BEADS Making a parting cut for the desired depth and location of your bead. 1. Place the parting tool on the tool rest and move the tool forward to make the full bevel of the tool come into contact with the workpiece.
  • Page 19 OPERATION SPINDLE TURNING - SANDING THE WORKPIECE Adjust the lathe to a slower speed for sanding and finishing. High speed can build friction while sanding and cause burns in some woods. The cleaner the cuts, the less sanding will be required. So try to make the cuts as refined as you can before moving to the sanding process.

  • Page 20: Troubleshooting Guide

    OPERATION TO SHAPE THE INSIDE OF A BOWL OR PLATE Turn off the lathe and move the tailstock out of the way. Mount the workpiece onto the face plate and install the face plate onto the headstock (see "Install The Face Plate" on page 12). Adjust the tool rest in front of the workpiece to be just below the centerline and at the right angle to the lathe’s turning axis.
  • Page 21 4. Improper tool being used. 4. Use correct tool for operation. 5. Lock nut needs adjusting. 3. Tighten lock nut (Part No. 34034-052). Tailstock moves when 3. Remove the tailstock and clean the surfaces locked and pressure is 4. Lathe bed and tailstock mating with a cleaner.

  • Page 22: Maintenance

    WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts. Use of other parts may be hazardous or induce product failure.

  • Page 23: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST...
  • Page 24 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 34034-001 Foot 34034-046 Handwheel Handle Belt Tension Lock Lever, 34034-047 Set Screw 34034-003 M8X20 34034-048 Tailstock Lock Lever 34034-004 Washer 34034-050 Tailstock Clamp Bolt 34034-006 Head Cap Screw, M6X16...

  • Page 25: Warranty Statement

    (2) years from date of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for pro- fessional or commercial use.
  • Page 26 NOTES...
  • Page 27 NOTES...
  • Page 28 THANKS FOR REMEMBERING v.2019.07.23...
