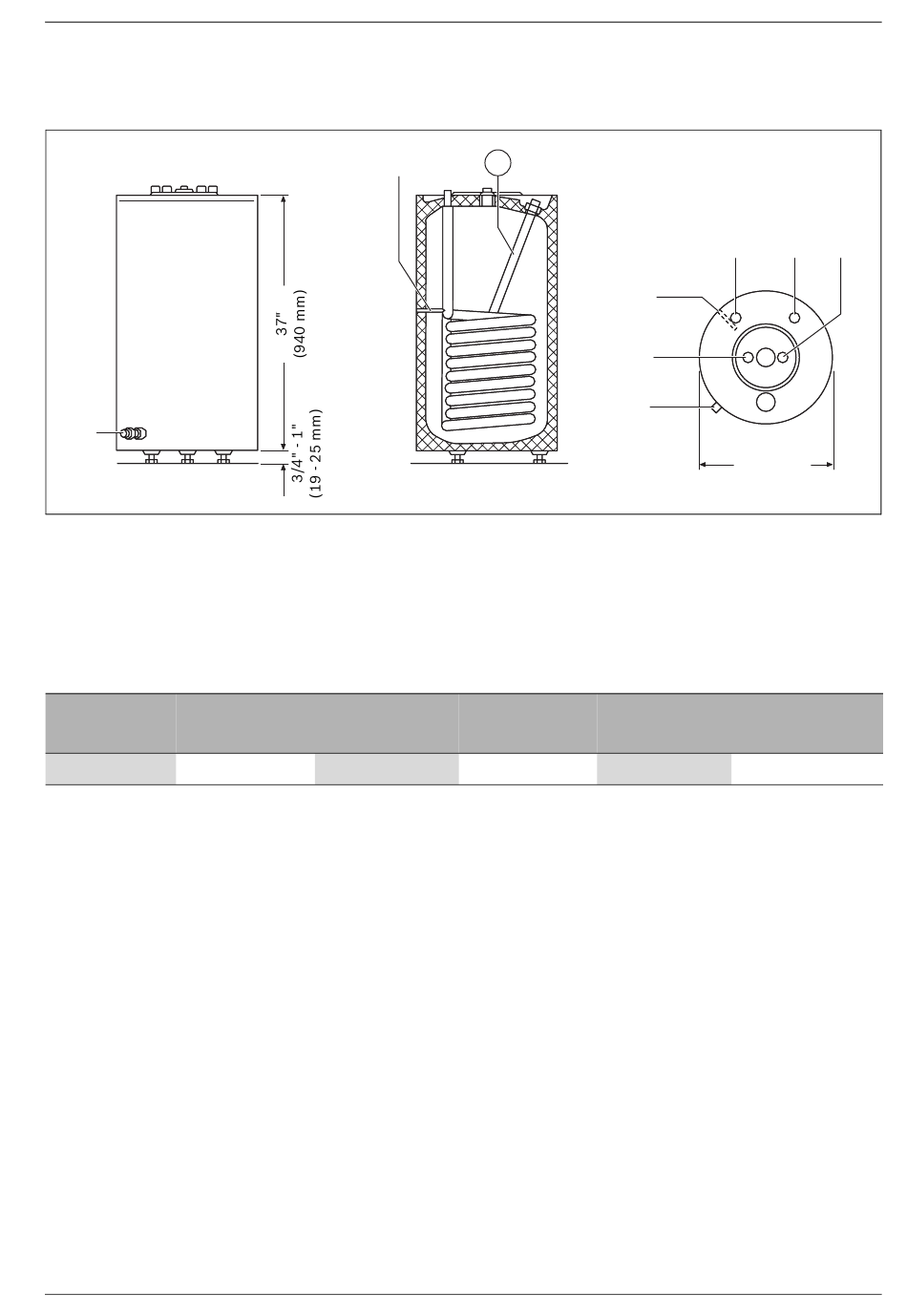

Dimensions and connections

EL
Fig. 4
Dimensions and connections
1
Magnesium anode
AB
Hot water outlet
EK
Cold water inlet
VS
Tank coil supply
RS
Tank coil return
MB
Hot water temperature sensor or Aquastat
EL
Drain
Type
VS
120
NPT ¾ "
Table 2
Dimensions and connections
6 720 648 071 (2012/03)
1
MB
RS
EK/AB
NPT ¾ "
NPT ¾ "
Dimensions and connections
VS
MB
AB
EL
20"
20"
(508 mm)
6 720 648 100-13.1ITL
Sacrificial
Weight (empty)
anode
Lbs (kg)
G 1"
158 (72)
RS
EK
7
