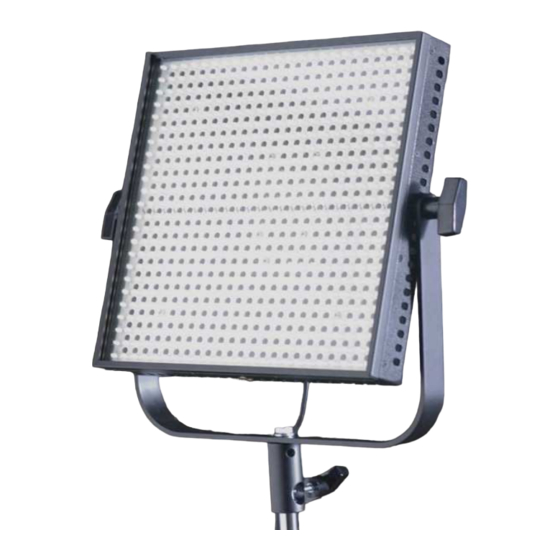

Litepanels 1x1 Instructions

Litepanels 1x1 - Instructions
®
Litepanels power supply options
Attach the mounting bracket via the 2 captive screws to the bottom, at the back of the
Litepanels 1x1 fixture housing and insert the power supply. With the power switch in the
"OFF" position, attach the power supply (AC Adapter) at the lowest dimmer setting. The
right angle DC connector plugs into the power input jack at the back of the Litepanels
1x1 fixture. Connect the AC Adapter power cord to a 100-240VAC wall outlet or
extension cord. Set the power switch in the "ON" position and rotate the dimmer knob to
the desired light level.
***Do not power the AC Adapter through a dimming device***
Do not use 12V or 30V battery power input.
A 12V battery is an insufficient power source. With the fixture left on, the 1x1 control
board will overheat and cause damage to the electronic components.
A 12V power supply (AC Adapter) can experience similar circumstances. Use only the
24VDC power supply included in the kit. It is set at the optimum level.
A 30V+ battery input source will cause failure and damage to the 1x1 control board.
Backpack Power Cell - An optional 4amp/hour Litepanels battery will power the 1x1
for up to 2 hours; recharge takes 1:45 hrs. The battery is secured via the 2 captive screws
to the bottom, at the back of the housing. Attach the DC plug after mounting the
Litepanels battery.
