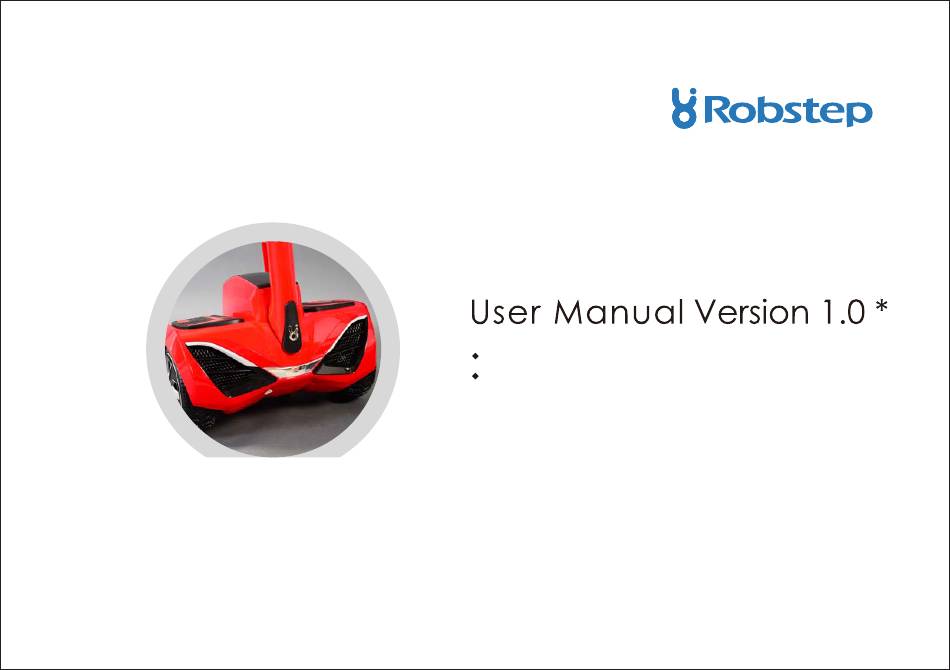

- Page 1 Thank you for choosing Robstep M2 This manual is designed to help you assemble, Robstep M2 use and maintain quickly * Subject to further update...
-
Page 2: Table Of Contents
2.1 Model Description ······················································································································································2 2.2 Serial Number of Products ·············································································································································2 2.3 Principle of Operation ··················································································································································3 3. Information about Remote Controller for Robstep M2 ································································ 3 3.1 Overview of Remote Controller·······································································································································3 3.2 Startup of Remote Controller ··········································································································································4 3.3 Detailed Description on Screen of Remote Controller ·············································································································5 3.4 Introduction to Working Modes of Transporter Body ··············································································································6... - Page 3 7. Maintenance and Servicing of Robstep M2 ···········································································22 7.1 Handling Notes ······················································································································································22 7.2 Maintenance··························································································································································22 7.3 Cleaning ······························································································································································23 7.4 Storage ································································································································································23 8. Parameters of Robstep M2 ·······························································································24 9. Front, Top and Left Views and Size of Robstep M2··································································25 10. Fault Treatment···········································································································26...
-
Page 4: Overview
For detailed and comprehensive information, please watch the video tutorial for safe driving. ◆ You can download the video tutorial for safe driving and the file of this manual at the official website of Robstep Robot Co., Ltd. ( www.robstep.com) -
Page 5: Description Of Warning Signs
1, has greatly improved experience, safety, appearance, etc., and provides better driving experiences to the user. ◆ Robstep M2 is suitable for private trips, work inspection, indoor stadiums, tourism and entertainment, trips by car or subway, etc., to facilitate the trips of the user. -
Page 6: Principle Of Operation
. 3 Information about Remote Controller for 3.1 Overview of Remote Controller ◆ The remote controller for Robstep M2 is a chargeable device with the functions of information display and control, the maximum remote control distance is 10 m, and you can remote control and monitor the operating conditions of within this range. -
Page 7: Startup Of Remote Controller
◆ It is necessary to charge the remote controller for startup when the remote controller fully charged is powered off for more th an 10 days. 3.2 Startup of Remote Controller ◆ The remote controller for Robstep M2 starts up when you hold down the "... -
Page 8: Detailed Description On Screen Of Remote Controller
3.3 Detailed Description on Screen of Remote Controller ◆ Indicator of connection between the ◆ Indicator to mute remote controller and the transporter transporter body body (it flashes for connecting, and stops flashing for a successful connection) ◆ Indicator of USB charging of the remote controller ◆... -
Page 9: Introduction To Working Modes Of Transporter Body
The mode is suitable for situations that the user is not riding or the road is bad for riding, and Assistant Mode Robstep M2 assists the user when the user tows it.The transporter body automatically exits the mode after idling for 10 seconds Sleep Mode Under the mode, the system is powered off. -
Page 10: List Of Key Functions
10 minutes; if the transporter body is under the sleep mode (R ostep M2 is under the idle status for more than 18 hours or the keys of the remote controller are pressed), the remote controller will be powered off automatically. -
Page 11: Information About Robstep M2
Information about Robstep M2 4.1 Main Parts ◆ A whole Robstep M2 mainly comprises the handle, a stretch rod, the transporter body, the battery, wheels, etc. The transporter body comprises a display panel, a grip, a foot pad, etc. Handler... -
Page 12: Information About Display Panel
Indicator of startup Indicator of WIFI Indicator of system operation Indicator of faults 4.3 Foot pad ◆ When the transporter body is started up, it automatically keeps balance if the user steps on the foot pad of Robstep M2. -
Page 13: Battery
4.4 Battery ◆ This section mainly introduces the specifications, correct charging method, serving method, safety notes, etc. of the battery o f Robstep 4.4.1 Specifications of Battery e t t e t t e t t a t l 2.0kg (only for reference, be subject to actual 3.0kg (only for reference, be subject to actual... - Page 14 ◆ The user should hear voice prompts and operate correspondingly for safety when driving. 4.4. Steps to Charge Battery ◆ Open the charge port on the transporter body of Robstep M2. ◆ Insert one end of the charging cable into the charge port on the transporter body of make sure the charge port is dry) and insert the plug of the charger into the power socket.
- Page 15 4.4. Ultra-high or Ultra-low Temperature of Battery ◆ Robstep M2 has the maximum operating efficiency when the temperature of the battery is within the range described in the batter y specification.When the temperature of the battery is too high or too low during driving, the system triggers a safety warning.
- Page 16 ◆ Please do not come in contact with any substance leaking from the battery. ◆ Please only use the charger provided by Robstep to charge Robstep M2. ◆ The battery of Robstep M2 should be transported and treated with the prior approval of local laws.
-
Page 17: Safety Notes For Robstep M2
5.2 Maximum Driving Distance The maximum driving distance of Robstep M2 is affected by many factors, such as: ◆ Road condition: The driving distance will increase if you drive the transporter on smooth roads; and the driving distance will s horten if you drive the transporter on hilly or bumpy roads. -
Page 18: Driving Under High Or Low Temperature Environment
5.5 Speed Limit ◆ Robstep M2 can keep the balance of the driver when the driving speed is lower than the limit. When the speed is higher than the l imit, the handle of Robstep M2 automatically inclines toward the driver, and the driver can control the speed within the safety limit. -
Page 19: Abnormal Conditions
Robstep M2 if you do not stop, Robstep M2 can not keep balance due to low capacity, and the driver may suffer injury. ◆ When the capacity of the battery decreases to the minimum, please stop driving.If you continue to drive... -
Page 20: Steps To Drive Robstep M2
◆ Please wear a safety helmet and protective clothing before driving Robstep M2. ◆ Please do not wear sharp objects to avoid injury during driving. ◆ Robstep M2 is a traveling tool for one person, and only one person can stand on the transporter body during using. ◆... -
Page 21: Steps To Drive
6.2 Steps to Drive Step 1: Start Robstep M2 First, please use the remote controller for startup.Then, the indicators of remaining capacity, startup and system on the displ ay panel light up, and the transporter body produces a voice prompt indicating normal startup. - Page 22 During driving, you can lean slightly forwards and backwards to change the center of gravity, and when the transporter body brakes slowly and does not move forwards, you should control the center of gravity and keep balance to stop Robstep M2.
-
Page 23: Driving Practice
◆ Robstep M2 is a traffic tool designed for smooth roads. During driving, the user should pay more attention to road conditions, especially crossing speed control bumps and grass among buildings, and the user need to learn to avoid obstacles by drive practice. -
Page 24: Correct Driving Posture
6.4 Correct Driving Posture WARNING ◆ Please drive following the guide for correct operation, and practice frequently. ◆ When the traffic is heavy, please get off and walk to reduce the occurrence probability of accidents as much as possible. -
Page 25: Maintenance And Servicing Of Robstep M2
◆ Lift the transporter body with one hand, and grip the foot of the lever for the next grade of the handle with the other hand to lift Robstep M2 for handling.Please do not use the casing of the transporter body as the bearing point for handling.You can also use the rear rack of Robstep (a secondary handling part) to handle easily. -
Page 26: Cleaning
Notes before Cleaning: ◆ Please make sure the power supply and the charging cable of Robstep M2 are disconnected. ◆ Wipe the casing with soft cloth to clean Robstep M2. WARNING ◆ Please do not clean Robstep M2 with water or other liquids.If water or other liquids penetrate the transporter , electronic parts in Robstep M2 may have permanent damage. -
Page 27: Parameters Of Robstep M2
The whole size refers to the size when the control lever stretches to the greatest extent. Battery or 6.6Ah Lithium Battery The standard battery configuration of M2 is Charging Requirements 110-240vAC-60hz the 4.4 battery. You can choose a 6.6 h battery to increase the cruising distance, but the net weight will increase by around 1Kg. -
Page 28: Front, Top And Left Views And Size Of Robstep M2
. 9 Front, Top and Left Views and Size of 53 CM 45.5 CM 107 CM 140 CM... -
Page 29: Fault Treatment
10. Fault Treatment When Robstep M2 has a fault or you suspect a fault that you cannot repair, please contact the service center of Robstep for repair. WARNING ◆ When you drive 2, you may collide or fall if you lose control of 2. - Page 30 Website: www.robstep.com This product is insured by the People's Insurance Company of China.
