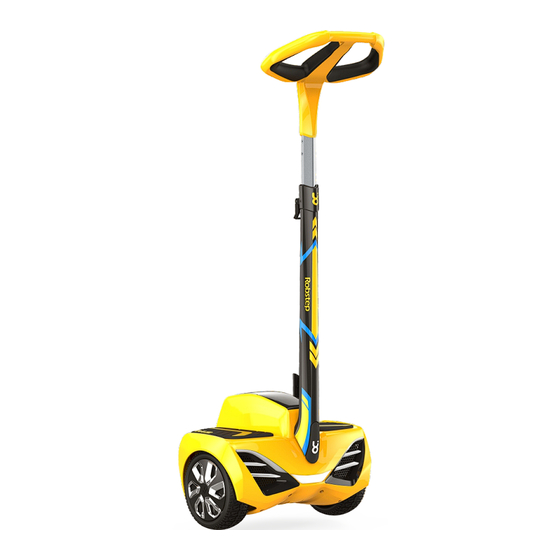

◆ Thank you for choosing and buying Robstep M2
◆ This manual is designed to help you assemble,
use and maintain Robstep M2 quickly

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RobstepM2 and is the answer not in the manual?

Questions and answers

Related Manuals for Robstep RobstepM2

Summary of Contents for Robstep RobstepM2

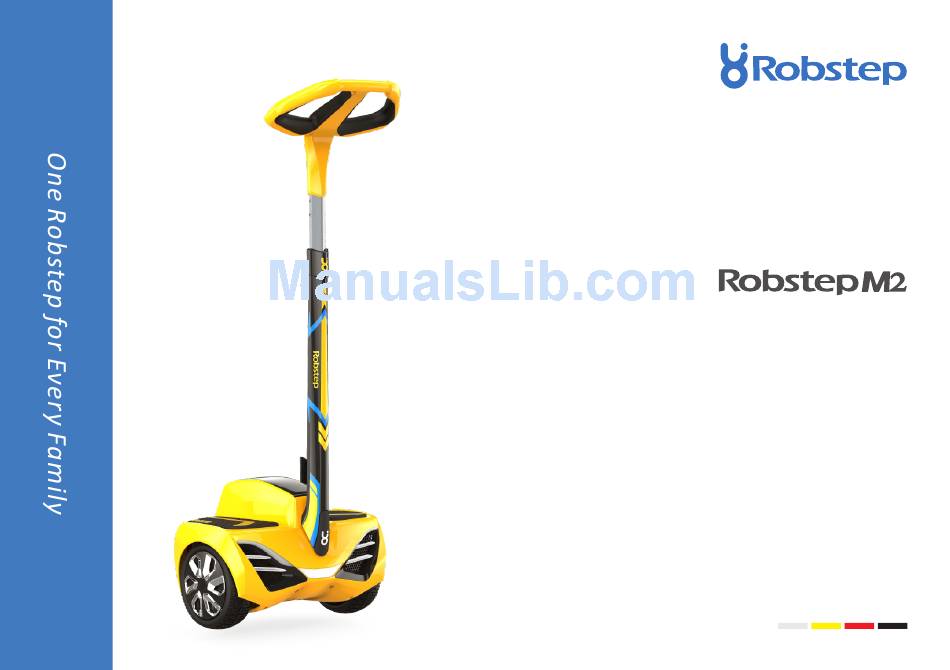

  • Page 1 Manual ◆ Thank you for choosing and buying Robstep M2 ◆ This manual is designed to help you assemble, use and maintain Robstep M2 quickly...
  • Page 2 3.2.3 Description on Key Functions of Remote 3.2.4 Detailed notes to the operation of remote control keys Introduction to Working Modes of Transporter Body 4.Information about Robstep M2 4.1 Main Parts 4.2 Information on the handle grip display interface 4.2.1 Working principle of the displayed handle grip 4.2.2 Function of the touch-keys...
  • Page 3 6.4 Correct Driving Posture 7.Maintenance and Servicing of Robstep M2 7.1 Handling Notes 7.2 Maintenance 7.3 Cleaning 7.4 Storage 8.Parameters of Robstep M2 9.Front, Top and Left Views and Size of Robstep M2 10.Fault Treatment Wishing you a pleasant user experience...

  • Page 4: Overview

    ◆ You can download the video tutorial for safe driving and the PDF file of this manual at the official website of Robstep Robot Co., Ltd. (www.robstep.com). These videos provide important information of products and guide you use Robstep M2 safely.To avoid injury, please drive Robstep M2 as specified in the video tutorial for safe driving.

  • Page 5: Description Of Warning Signs 2

    2.2 Serial Number of Products ◆ Every Robstep M2 has a unique serial number, which is used for quality tracing, insurance claim and claim for missing. Please retain the serial number.

  • Page 6: Principle Of Operation 3

    Robstep (Robstep M2 and the user). When the user stands on Robstep M2 correctly, Robstep M2 can match well with their body, and a power device controls the wheels to move forward or backward to keep balance when the body slightly inclines forward or backward.
  • Page 7 ◆ It is necessary to charge the remote controller for startup when the remote controller fully charged is powered off for more than 10 days. 3.1.1 Startup ◆ The remote controller for Robstep M2 starts up when you hold down the " "...
  • Page 8 3.1.2 Detailed Description on Screen of Remote Controller ◆ Indicator of connection ◆ Indicator to mute between the remote controller transporter body and the transporter body (it flashes for connecting, and ◆ Indicator of USB ◆ Indicator of remaining capacity of the remote controller ◆...
  • Page 9 3.2.3 Description on Key Functions of Remote Function Name Function ◆ Hold down the key to mute or ◆ Hold down the key for 4 Power-off Mute Key unmute the transporter body seconds to power off the (prompts such as errors, remote controller warnings, etc.

  • Page 10: Remote Control Type 2 2

    3.2 Remote Control Type 2 ◆ This type of remote control is powered by replaceable batteries, and its maximum remote-control distance is 10 m. In this range, Robstep M2 can be controlled remotely in operation. 3.2.1 Description of key functions...

  • Page 11: Detailed Notes To The Operation Of Remote Control Keys

    The mode is suitable for situations that the user is not riding or the road is bad for Assistant Mode riding, and Robstep M2 assists the user when the user tows it.The transporter body automatically exits the mode after idling for 10 seconds Sleep Mode Under the mode, the system is powered off.

  • Page 12: Information About Robstep M2

    4.Information about Robstep M2 4.1 Main Parts ◆ A whole Robstep M2 mainly comprises the handle, a stretch rod, the transporter body, the battery, wheels, etc. The transporter body comprises a display panel, a grip, a foot pad, etc. Displayed handle...

  • Page 13: Information On The Handle Grip Display Interface

    4.2 The information on the handle grip display interface (this part is optional; use according to your configuration) ◆ M2 with a displayed handle grip is aimed at giving users a better driving experience, and the touch intelligence operations are stylish, fashionable and high-tech. Light ON means a warning prompt Optical Sensing Light ON means the main body is locked...
  • Page 14 ◆ When M2 is in shutdown/locked/charging status, the handle grip will shut off its display without any key operations within 1 minute and enter sleep status without any key operations within 30 minutes ◆ The handle grip will enter into sleep status when the battery charge is low NOTE ◆...

  • Page 15: Information About Display Panel 1

    Indicator of remaining capacity Indicator of startup Indicator of WIFI Indicator of system Indicator of faults 4.4 Foot pad ◆ When the transporter body is started up, it automatically keeps balance if the user steps on the foot pad of Robstep...
  • Page 16 4.5 Batter y ◆ This section mainly introduces the specifications, correct charging method, serving method, safety notes, etc. of the battery of Robstep M2. 4.5.1 Specifications of Batter y Battery Type 4.4Ah Lithium Battery 6.6Ah Lithium Battery Charging Time Around 4 hours...
  • Page 17 ◆ Open the charge port on the transporter body of Robstep M2. ◆ Insert one end of the charging cable into the charge port on the transporter body of Robstep M2 (make sure the charge port is dry), and insert the plug of the charger into the power socket.

  • Page 18: Battery Specifications

    ◆ When you find the battery is damaged, leaks, has a peculiar smell or warms up, please do not use.If Robstep M2 is out of battery, please stop using immediately and charge it.
  • Page 19 ◆ If you will not use Robstep M2 for a period of time, please store it after full charge and charge it every three months or more frequently. ◆ When the battery is used up, please charge it in time, or the battery may be damaged due to over-discharge.

  • Page 20: Safety Notes For Robstep M2

    ◆ Please do not use Robstep M2 to injure persons or damage property. ◆ Please do not change parts of Robstep M2 at random. If you change them, the performance of Robstep M2 will be affected or even Robstep M2 will be damaged, causing serious injury.

  • Page 21: Driving Under High Or Low Temperature Environment

    5.5 Speed Limit ◆ Robstep M2 can keep the balance of the driver when the driving speed is lower than the limit. When the speed is higher than the limit, the handle of Robstep M2 automatically inclines toward the driver, and the driver can control the speed within the safety limit.
  • Page 22 WARNING ◆ Please do not drive erratically or turn on a slope, or the balance angle of Robstep M2 may be offset to affect driving safety. 5.6 Abnormal Conditions ◆ When the system generates a prompt for depleting the battery or safe stopping, please stop driving Robstep M2; if you do not stop, Robstep M2 can not keep balance due to low capacity, and the driver may suffer injury.

  • Page 23: Steps To Drive Robstep M2

    ◆ Please do not wear sharp objects to avoid injury during driving. ◆ Robstep M2 is a traveling tool for one person, and only one person can stand on the transporter body during using. ◆ When you practice driving, please do it on a spacious and flat indoor or outdoor site with the area of at least 5m*5m.At the same time, please make sure the site is safe and spacious, the ground is flat, and no car, pedestrian, pet, bicycle or other obstacle interfere the practice.

  • Page 24: Steps To Drive

    6.2 Steps to Drive Step 1: Start Robstep M2 First, please use the remote controller for startup.Then, the indicators of remaining capacity, startup and system on the display panel light up, and the transporter body produces a voice prompt indicating normal startup.
  • Page 25 Step 4: Control the transverse direction of Robstep M2 When you swing the handle of Robstep M2 to the left, Robstep M2 turns left; when you swing the handle to the right, Robstep M2 turns right.

  • Page 26: Driving Practice

    Large acceleration and deceleration may cause slippage of wheels and injury to persons. ◆ When you get off, please do not pull the handle backwards, try to keep the balance of Robstep M2, and avoid backward movement of the transporter body to injure the user.
  • Page 27 6.4 Correct Driving Posture WARNING ◆ Please drive following the guide for correct operation, and practice frequently. ◆ When the traffic is heavy, please get off and walk to reduce the occurrence probability of accidents as much as possible.

  • Page 28: Handling Notes

    ◆ Lift the transporter body with one hand, and grip the foot of the lever for the next grade of the handle with the other hand to lift Robstep M2 for handling.Please do not use the casing of the transporter body as the bearing point for handling.You can also use the rear rack of Robstep (a secondary handling part) to handle easily.

  • Page 29: Cleaning

    ◆ The user may not disassemble Robstep M2 without permission, or we regard that the user waives the warranty of this product. ◆ If you will not use Robstep M2 for a period of time, please store it after full charge and charge it every three months or more frequently.

  • Page 30: Parameters Of Robstep M2

    8.Parameters of Robstep M2: Remarks Robstep M2 Maximum Cruising The maximum cruising speed can be 15km/h Speed configured by an application. During driving, the transporter keeps dynamic Cruising Distance 20km balance and runs at a speed larger than the maximum cruising speed in a short time.

  • Page 31: Front, Top And Left Views And Size Of Robstep M2

    9.Front, Top and Left Views and Size of Robstep M2 53 CM 45.5 CM 107 CM 140 CM...

  • Page 32: Fault Treatment

    10. Fault Treatment When Robstep M2 has a fault or you suspect a fault that you cannot repair, please contact the service center of Robstep for repair. Wishing you a pleasant user experience The version of this M2 manual: V1.1. All the information in the manual (until the date when this manual is printed) is up-to- date information.
  • Page 33 Dongguan Robstep Robot Co., Ltd. Customer service hotline: +86-769-2662-1018 Official site: www.robstep.com Email: info@robstep.com Address: Building 2, Songhu Huake Industrial Park, 6 South Gongye Road, China Songshan Lake National Hi-Tech Industry Development Zone...
  • Page 34 FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
