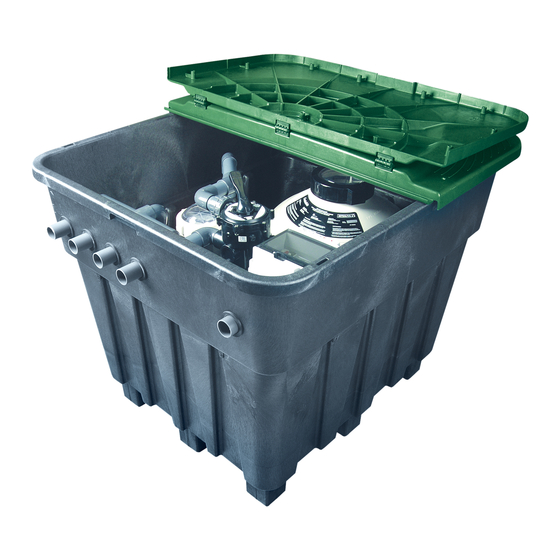

Astralpool KEOPS Instruction Manual

In-ground and semi in-ground compact housing
Hide thumbs Also See for KEOPS:

Advertisement

Quick Links

Download this manual
I N STRUCTIO N MA N UAL
IN-GROUND AND SEMI IN-GROUND
COMPACT HOUSING

Advertisement

loading
Need help?

Need help?

Do you have a question about the KEOPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Astralpool KEOPS

Summary of Contents for Astralpool KEOPS

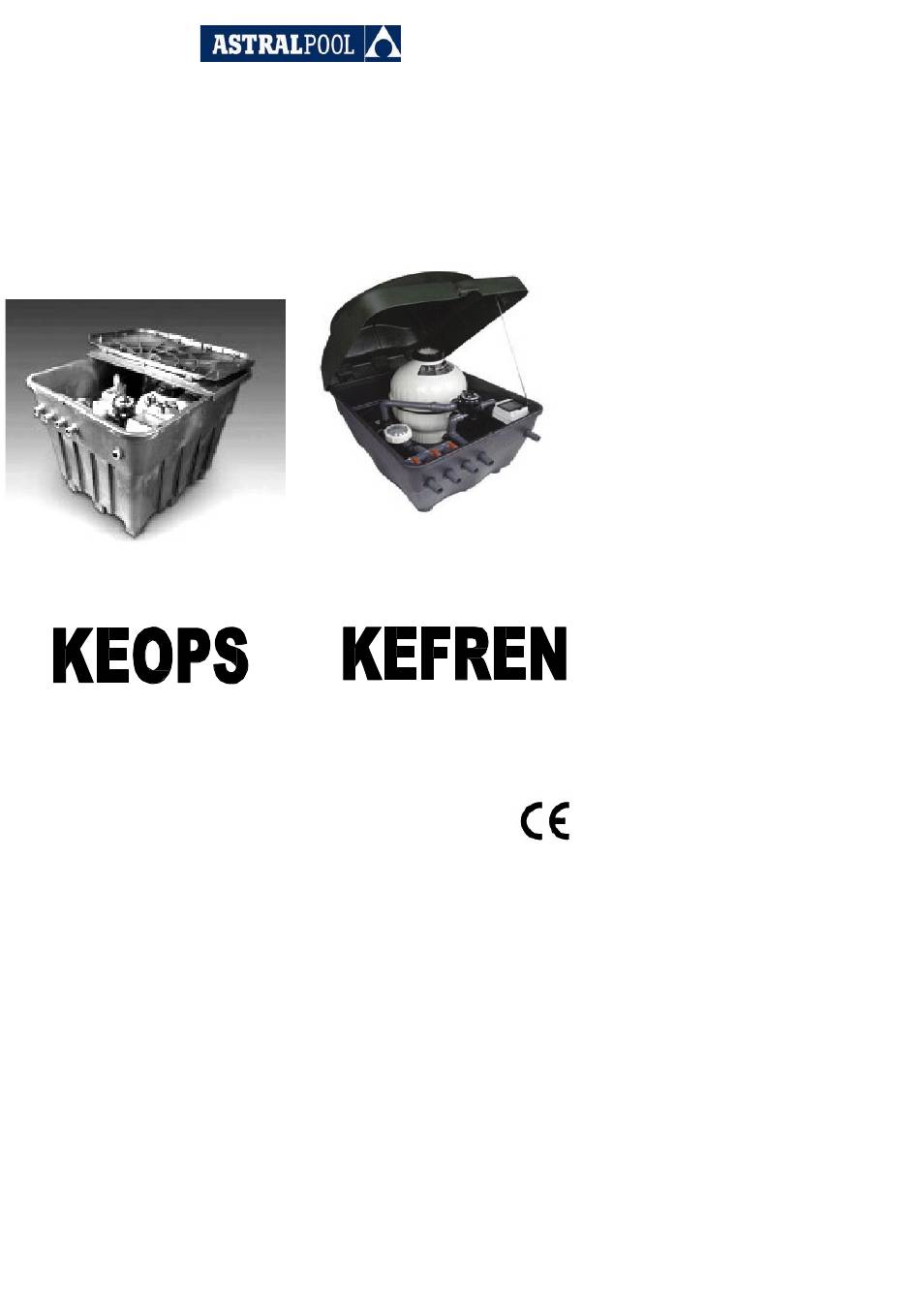

  • Page 1 I N STRUCTIO N MA N UAL IN-GROUND AND SEMI IN-GROUND COMPACT HOUSING...

  • Page 2: General Characteristics

    IMPORTA N T: The instruction manual that you are holding in your hands contains important information about the safety measures to adopt during installation, start-up and maintenance. Thus, it is extremely important that both the installer and the user read the instructions before beginning setup: 1.
  • Page 3 3.2. Make a properly levelled concrete slab. KEOPS KEFREN 3.3. Position the unit. 3.4. Do the excavation to prepare for laying the intake and output pipes to the pool and the electrical supply. The intake and output pipes must rest on a bed of sand.
  • Page 4 IMPORTANT: Fill the side of the housing w ith gravel. In the case of very soft ground, build retaining w alls or, in the KEOPS housing, install the inner metal reinforcement (ref. 31105R1000).
  • Page 5 IMPORTANT ATTENTION – VE R Y IMPO R TANT This equipment cannot be connected to a regular plug. This equipment requires proper electrical installation. This must be done by a specialist, following all the standards on electrical safety in force in each country. The supply to the unit must always be protected by a highly-sensitive differential.
  • Page 6 ELECTRICAL CONNECTION (ONLY FOR MODELS WITH ELECTRICAL CONTROL BOX) For safety reasons, place terminals that are appropriate to the section of the cables on the ends of the cables to be connected. Use cable H07RNF. ATTENTION! CONNECT THE EARTH L EA D-IN WIR E WITH TH E MOTOR P UM P EA RTH WIR E...
  • Page 7 4. START-UP 1. Only in the KEOPS housing. Remove the t w o covers from the housing to begin start-up. Unscre w the scre w s that attach the cover to the housing, before lifting it. 2. Open the filter and fill it half w ay w ith w ater. Protect the diffuser in the interior of the filter so sand does not get into it.
  • Page 8 7. Start up the pump and do a filter w ash. Perform the w ashing operation until the w ater comes out clean and clear in the w indo w of the selector valve. 8. Turn off the pump. Position the selector valve to rinse and run the pump for about 15 seconds. Stop the pump again and put the selector valve in the filter position.
  • Page 9 5. USER MANUAL ATTENTION ALWAYS STOP THE PUMP BEFORE CHANGING THE POSITION OF THE SELECTOR VALVE. 5.1. FILTRATION With the pump stopped, put the selector valve handle on FILTER. Start up the pump. Periodically check the manometer during operation, w hich w ill indicate the degree of saturation of the filter.
  • Page 10 5.3. RI N SE After doing a WASH of the filter and before returning the equipment to filtration, it is advisable to run a RI N SE to prevent the first quantity of w ater that is still cloudy from going directly into the pool. To do this, w ith the pump stopped, put the selector valve on RI N SE.

  • Page 11: Warranty

    WARRANTY All of our products come with a TWO YEAR warranty from the date of delivery. Our warranty includes in-factory repair and replacement or on the after-sale service of defective pieces. The parts replaced or repaired under this warranty will not extend the warranty of the original product, but they will have their own warranty.
