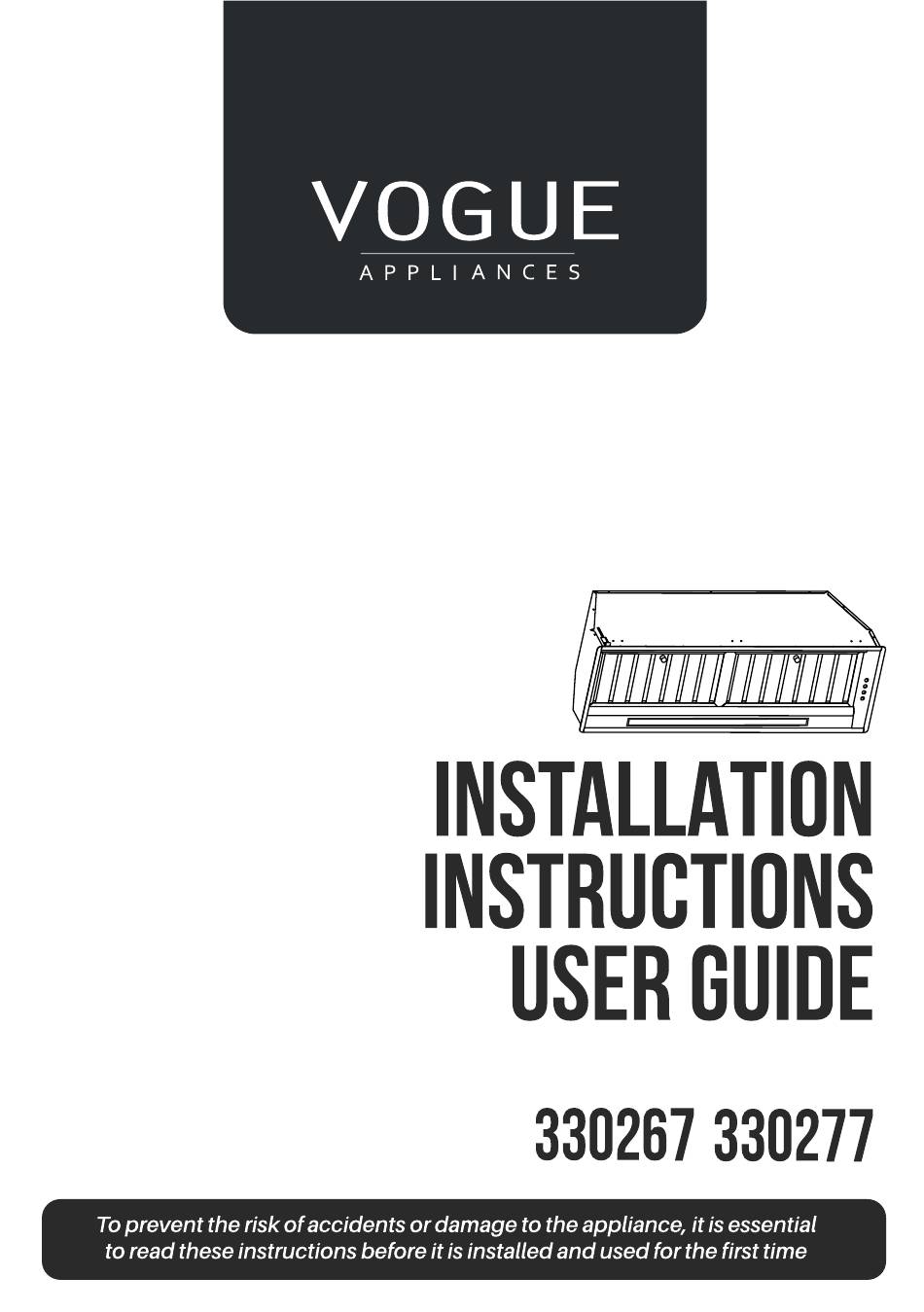

- Page 1 VOGUE Rangehood Integrated 520mm & 850mm...
-
Page 2: Recommendations And Suggestions
Dear Customer, By following the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Product Specification & Technical Parameters Model 330276/330277 Rated Voltage 220~240V Rated Power Frequency 50Hz Light Power LED 4W x 1 / LED 10W x 1... -
Page 3: Using The Rangehood
NOTE: Two or more people are required to install or move this appliance. Failure to do so can cause physical injuries. USING THE RANGEHOOD • The rangehood has been designed only for internal domestic use. • Never use it for purposes other than what it has been designed for. •... -
Page 4: Stainless Steel Baffle Filters
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) to prevent back drafting. -
Page 5: Operation Of Controls
DIMENSIONS OPERATION OF CONTROLS The hood is operated using the electronic switch on the front panel. The light switch turns the lamps on and off. The blower switch turns the blower on to three speed settings: 1 - LOW SPEED 2 - MEDIUM SPEED 3 - HIGH SPEED LOCATION ABOVE COOKTOP... -
Page 6: Installing The Duct Work
INSTALLING THE DUCT WORK (DUCTED HOODS ONLY) Caution: To reduce the risk of fire, metal ductwork is preferred. 1. Decide where the ductwork will run between the hood and the outside. 2. A straight, short duct run will allow the hood to perform most efficiently. -
Page 7: Installing The Rangehood
INSTALLING THE RANGEHOOD NOTE: At least two people will be required to mount the hood. 1. Before beginning the installation remove all plastic film, the filters & the oil catcher which is held in with 2 thumb screws. When it is removed there are 3 cut outs to provide access to the screw mounting holes.
