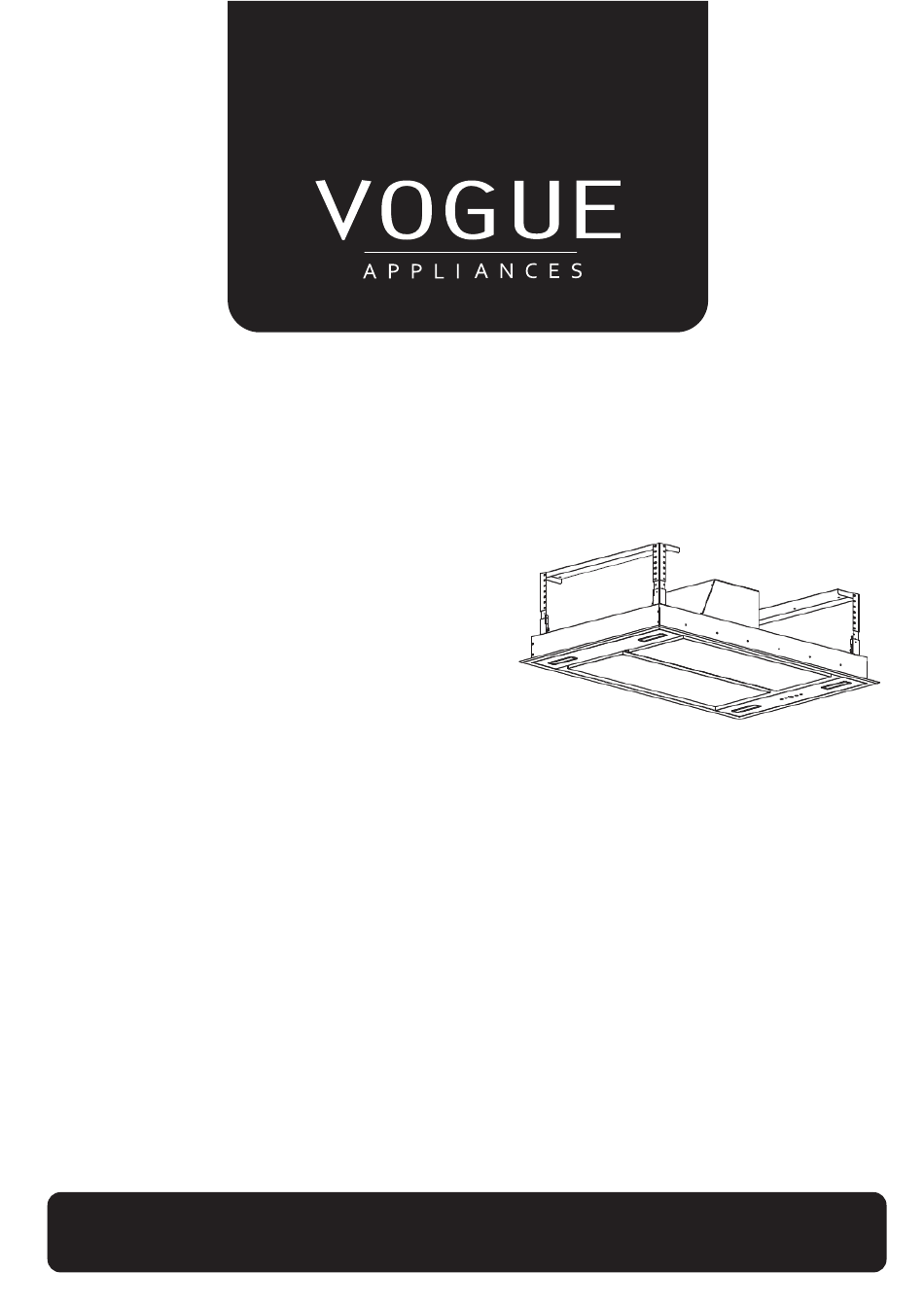

- Page 1 INSTALLATION INSTRUCTIONS USER GUIDE VOGUE Ceiling Rangehood 1100mm 330286 To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the f irst time...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS INSTALLATION START USING YOUR RANGEHOOD REMOTE CONTROL TROUBLESHOOTING MAINTENANCE AND CLEANING ENVIRONMENT PROTECTION... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. Never to do: • Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy! •... - Page 4 Always to do: • Warning: Before obtaining access to terminals, all supply circuits must be disconnected. • Always put lids on pots and pans when cooking on a gas cooker. • When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed.
-
Page 5: Installation
INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap,the outlet may be various according to different models and configuration. To mount the V-flap 1 you should: • Mount two half-parts 2 into the body 6 • A pin 3 should be top oriented; • The axis 4 should be inserted in the holes 5 on body; • Repeat all the operations for the 2nd half-part INSTALLATION 1. Before installation, turn the unit off and unplug it from the outlet. - Page 6 6. As Pic 9 shown, choose the direction of the outlet 1 / 2 / 3 / 4 a. Refer to Pic 7,open the decorative plate in order,and take out the filter. b. Refer to Pic 8,unscrew and take away the 4 pcs ST4*8mm screws that on the panel decorative strip. c. Unscrew the 8pcs machine silk from the bottom of the cabinet housing and rotate it by 90°/180°/270° to choose the direction of the outlet, then screw the 8 pcs machine silk to fix the housing well; d. Install the panel decorative strip and filter well apply to the reverse order of a/b steps above,meanwhile, install the expansion pipe to the outlet(refer to pic 10).
- Page 7 8. After installing the housing to the hanging board, use cross screwdriver or straight screwdriver to adjust the screw of the angle iron bracket, direct the housing level position and height till it is suitable. Adjust method: Adjust rang of the angle iron Bracket is 0-25mm, clockwise twist the screw of the 4 angle iron bracket, slightly move the housing upwards;...
-
Page 8: Start Using Your Rangehood
START USING YOUR RANGEHOOD Electronic button with LED display & remote After connecting to power, the control panel will be lighted and the buzzer will sound once. The output is off and the hood enter into standby mode. On/Off Switches the ventilation on and off. Switches the light on and off. Please note the Lamp is not under control of Light the on/off button. The motor has the low speed, mid. speed and high speed. When the hood is working with low speed, LED display will show 1. -
Page 9: Remote Control
REMOTE CONTROL Lighting press button once, the light is on, press again, the light is off. The lighting button it is controlled separately and will not affect any other functions. Turning on/ Increasing motor speed key the motor has low, mid, high totally 3 levels. Press one time,the motor will work at low speed (Turning on). When the hood works at low speed, touch again,the motor changes to mid speed. Base on the middle speed condition, touch again, the motor is running in the high speed. -
Page 10: Troubleshooting
TROUBLESHOOTING FAULT POSSIBLE CAUSE SOLUTION Fan switch turned off Select a fan switch position. Light on, but motor does not Fan switch failed Contact service center. work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not work, motor Power cord loose or discon- Refit cord to power outlet. -
Page 11: Maintenance And Cleaning
MAINTENANCE AND CLEANING CAUTION: • Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed. • External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage. GENERAL Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. -
Page 12: Environment Protection
CARBON FILTER-not supplied Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below. In order to install the activated carbon filter, the aluminium filter should be detached first. Firstly open carefully the stainless steel cover, then press the lock of aluminium filter and remove it. NOTE: Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lowered. ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment.
