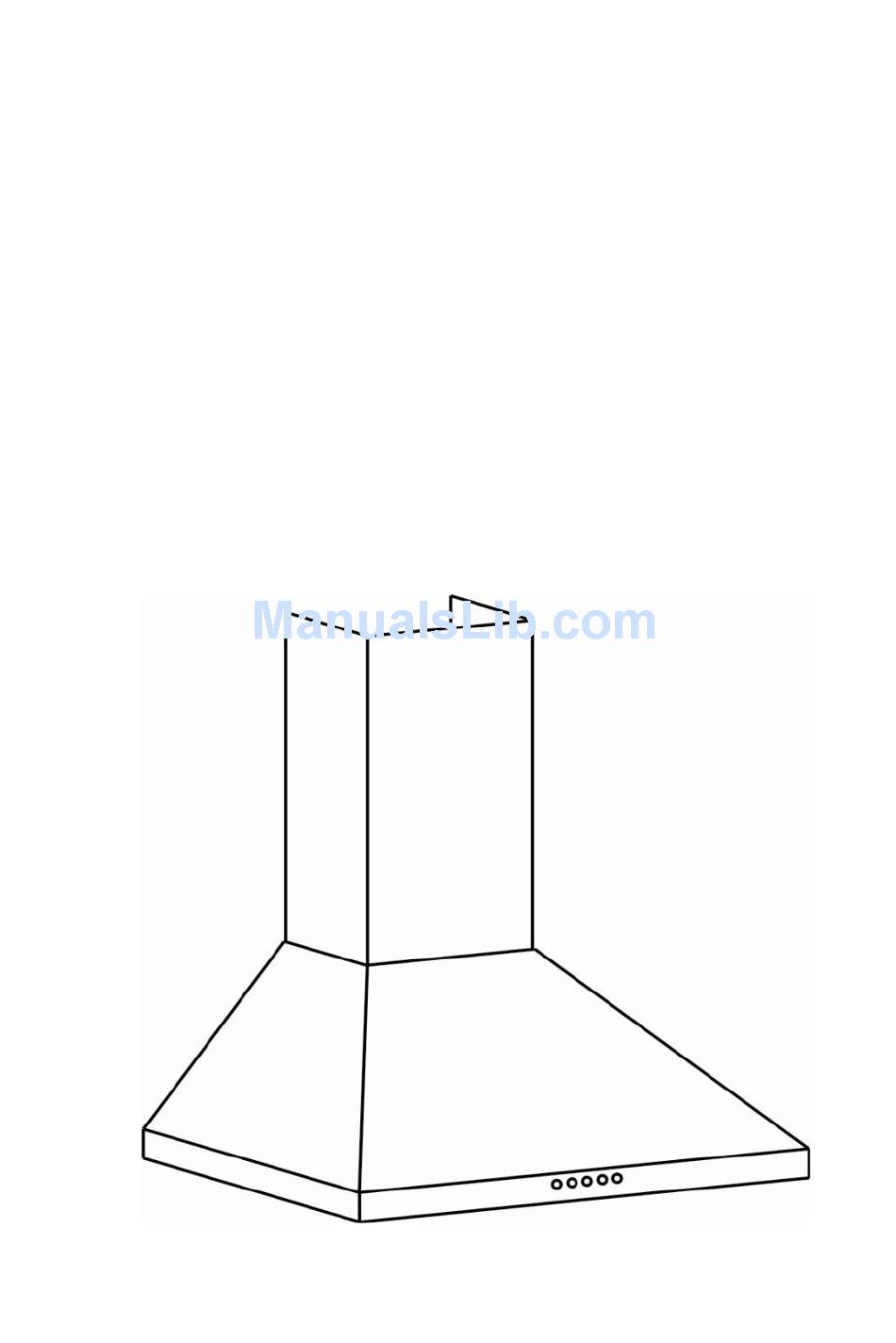

- Page 1 Thanks very much for choosing our product, please carefully read the following important information regarding installation safety and maintenance. And keep this information booklet accessible for further consultations. RANGE HOOD INSTRUCTION MANUAL MODEL: RH.CANOPY.600.SS RH.CAN.600.BL...
-
Page 2: Recommendations And Suggestions
If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Product Specification & Technical Parameters Model RH.CANOPY.600.SS/RH.CAN.600.BL Rated Voltage 230V Rated Power Frequency 50Hz... -
Page 3: Maintenance
clean air. * The minimum distance is 750mm from the range hood to a gas hob, and is 650mm to an electric hob. If the installation instructions for gas hobs specify a greater distance, this must be taken into account. NOTICE: Two or more people are required to install or move this appliance. - Page 4 WARNING!! In certain circumstances electrical appliances may be a danger hazard. * Do not check the status of the filters while the cooker hood is operating * Do not touch the light bulbs after appliance use * Do not disconnect the appliance with wet hands. * To reduce the risk of fire or electric shock, do not use this fan with any solid-state.
-
Page 5: Installation And Use
* The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. CHARACTERISTICS DIMENSIONS INSTALLATION & USE OPERATION OF CONTROLS The hood is operated using the push button on the front panel. The light switch turns the lamps on and off. -
Page 6: Install The Ductwork
Grease Filters The grease filters should be cleaned frequently. Use a warm detergent solution. Grease filters are washable. See “INSTALL FILTERS” section for removal and installation instructions. Non-Ducted Recirculation charcoal filter The non-ducted recirculation charcoal filter should be changed every 6 months. -
Page 7: Install The Hood
service agent or similarly qualified persons in order to avoid a hazard INSTALL THE HOOD Note 1 : On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and chimney prior to final installation. Note 2: At least two people will be required to mount the hood. -
Page 8: Install Filters
Chimney Mounting Bracket Decorative Duct Chimney ST5*50 Discharge Collar Decorative Hood Mounting Chimney Bracket Bottom Air outlet Adapter Hood Body INSTALL FILTERS 1. To remove the grease filter, push in on the metal latch tab. This will disengage the filter from the hood. Tilt the filter downward and remove. 2. - Page 9 WIRING DIAGRAM Note: This manual covers several different models & the information for each model may differ slightly.
