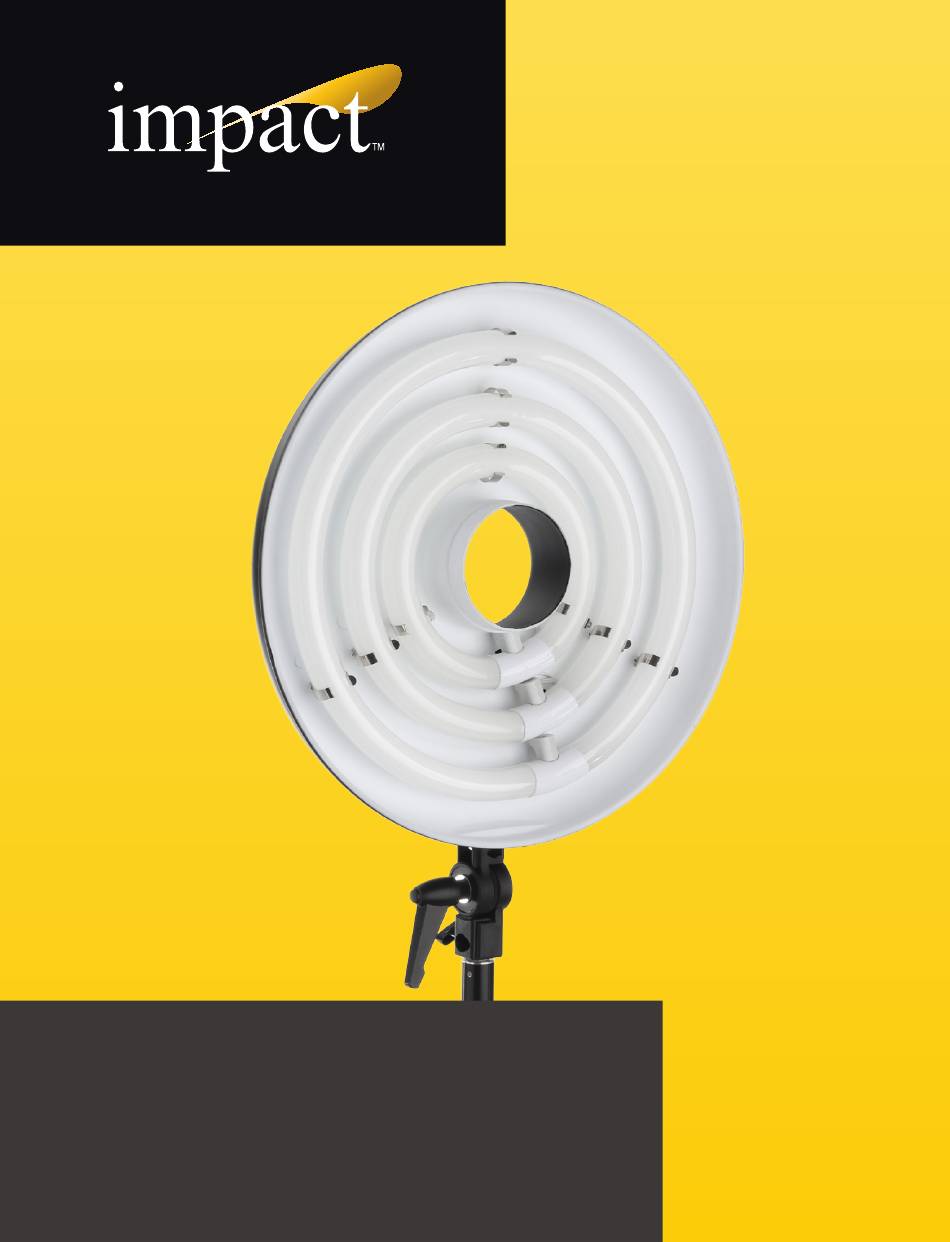

- Page 1 3-Lamp Fluorescent Ring Light 19" INSTRUCTIONS...
- Page 2 Introduction Thank you for choosing Impact. The Impact 3-Lamp Fluorescent Ring Light 19" is a continuous light for photography and video. It casts a soft, wraparound glow without the harsh shadows of conventional flashes. Three fluorescent lamps produce a pleasing daylight color at 5200 K for natural light quality, and white lining in the housing maximizes the output.
- Page 3 Precautions • Please read and follow these instructions, and keep this manual in a safe place. • Handle the unit with care. • Clean the unit with only a soft, dry cloth. • Keep this unit away from children. • Make sure everything is secure before proceeding.
- Page 4 Overview 1. Ring light fixture • Carrying handle • 100 mm lens opening • Camera bracket locking knobs • Power switches • Fuse • Tilt-and-ratchet locking handle • Light stand mount locking knob • 5/8" mounting spigot 2. 16" Fluorescent ring lamp (L) 3.
- Page 5 Operating Instructions Mounting on a light stand The Impact Ring Light mounts to any standard 5/8" studded light stand. Loosen the light stand mount locking knob and seat the mounting spigot onto the top of the light stand. Tighten the locking knob until secure, but do not overtighten.
- Page 6 Operating Instructions Adjusting the angle Rotate the ratchet-and-tilt locking handle counterclockwise until loose. When there is no more room to swing the ratchet handle, pull the handle out until it’s able to freely rotate back to another position, and continue to loosen. Tilt the ring light fixture to the desired position.
- Page 7 Operating Instructions Attaching your camera Align the lens of the camera with the lens opening. Adjust the camera bracket vertically so that the lens can fit into the lens opening. Align your camera’s tripod mount with the camera bracket’s locking screw.
- Page 8 Operating Instructions Changing the Fluorescent Lamp When changing the fluorescent lamps, make sure to replace them with the following Impact Replacement Ring Lamps: Large (16"): FRC-LAMPL Medium (12"): FRC-LAMPM Small (8"): FRC-LAMPS To replace the ring lamps, follow these instructions: 1.
- Page 9 Operating Instructions 3. Detach the four-pin plug from the fluorescent lamp. 4. Place the new replacement ring lamp above the three clips in the ring light housing. 5. Attach the four-pin plug to the ring lamp. 6. Gently clip the fluorescent lamp into each of the three ring light housing clips until secure.
-
Page 10: Specifications
Specifications Power requirements 90–120 V, 50/60 Hz Power consumption Total: 90 W Large (16"): 40 W Medium (12"): 28 W Small (8"): 22 W Tungsten equivalent 360 W Output (@ 1 m) Total: 1030 lx Large: 845 lx Medium: 685 lx Small: 582 lx Large and medium: 941 lx Large and small: 899 lx... -
Page 11: One-Year Limited Warranty
To obtain warranty coverage, contact the Impact Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Impact along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
