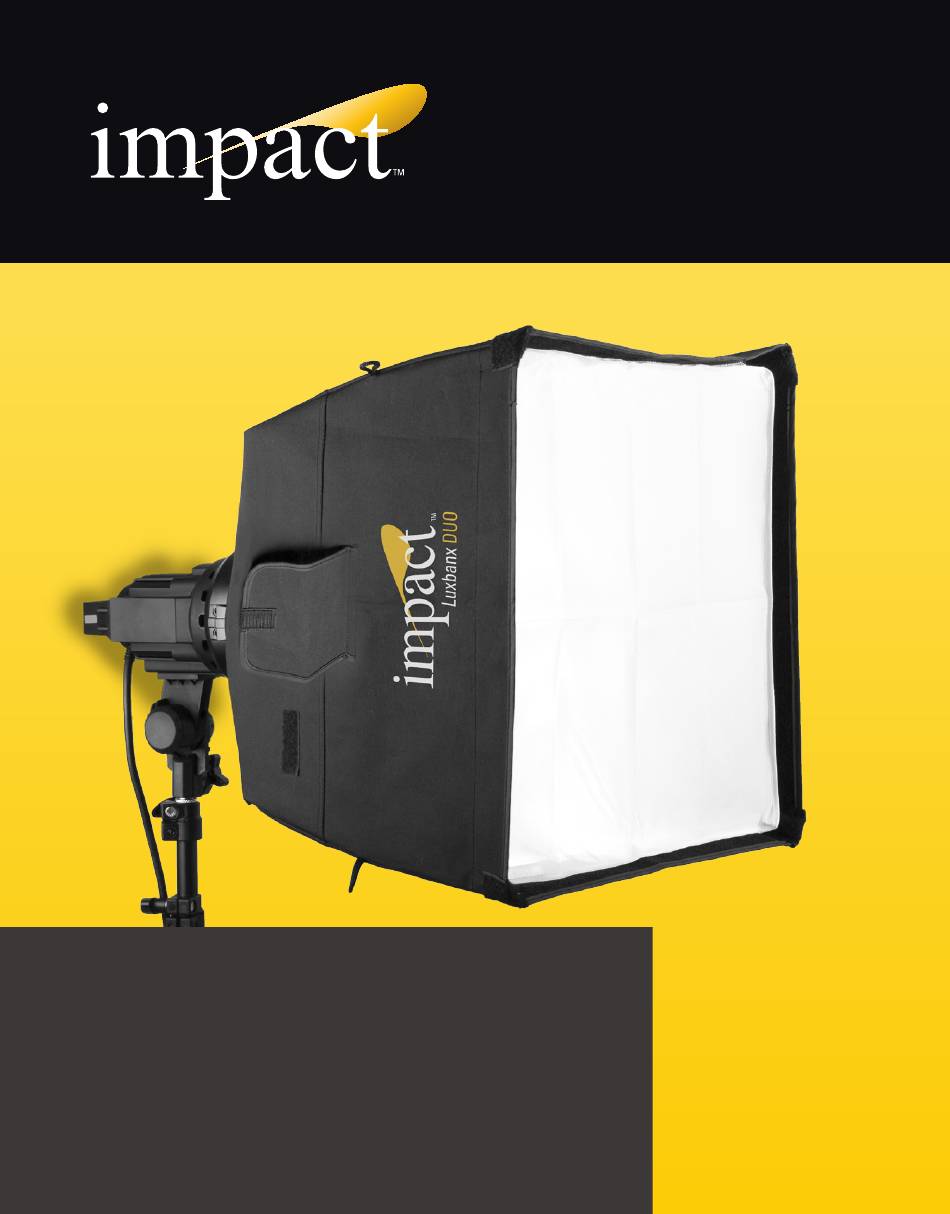

- Page 1 LB-QL300 Luxbanx Duo Softbox INSTRUCTIONS...
- Page 2 Introduction Thank you for choosing Impact. The Impact Luxbanx Duo LB-QL300 is designed to control and soften light for your specific photographic needs. Duo softboxes are compatible with continuous light sources (including quartz, tungsten, HMI and other “hot” lights, as well as LED or fluorescent lights) and flash (strobe) lighting sources.
- Page 3 Overview Box Contents • Softbox fabric shell • Four flex rods • Spare flex rod • Front diffuser • Carrying case • User manual Please follow these instructions carefully when assembling your LB-QL300 softbox. There are three parts to your Luxbanx: •...
- Page 4 Luxbanx Assembly Instructions Insert the small tip of a flex With the speed ring’s reflector rod through the guide loop mount facing away from the along the seam of the softbox softbox, insert the end of a fabric shell. Insert the tip into flex rod into a rod hole in the the anchoring pocket at the speed ring.
- Page 5 Luxbanx Assembly Instructions Insert the second flex rod in Insert the third and fourth flex the softbox fabric shell into rods into the speed ring in the the hole in the speed ring that same manner. As each flex is directly opposite the first rod is inserted, flex it gently hole used.
- Page 6 Luxbanx Assembly Instructions Fold the flaps of the softbox If you’re using a hot light shell over the speed ring, (quartz, tungsten, HMI, etc.) and press down on the touch make sure to open the four fasteners to close the back of vents on the sides of the the softbox.
- Page 7 Luxbanx Assembly Instructions Attach the diffuser to the front With your light unit’s power of the softbox with the touch switched off, mount the speed fastener. Make sure that the ring to the light unit (refer to touch fastener is in contact your light’s user manual for with the softbox all the way attachment instructions).
- Page 8 Luxbanx Assembly Instructions Note: The first time you use your LB-QL300 softbox with a hot light, there may be a slight odor and a small amount of smoke. This is a result of manufacturing residue burning off, and it should last only a minute or two. An optional Luxbanx grid provides touch fastener strip to be visible more control over the light of your...
- Page 9 Luxbanx Disassembly Instructions Turn off the power to your Pull the flex rods out of the light head, and disconnect the speed ring, using the same power cord from the power opposite rod pattern used in supply. assembly. Allow time for the light unit, You can leave the diffuser in flex rods, and speed ring to place if you wish.
- Page 10 Recommended Accessories • Luxbanx Grid LBG-R-S • Speed Ring (required) Notes...
- Page 11 One-Year Limited Warranty This Impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
