6. Timing: Low / Medium / High,( 3.75°/15°/26.25°)
Usually, low timing is suitable for most motors. To get higher speed, High timing value can be chosen.
4. B
EGIN TO USE YOUR NEW
IMPORTANT! Because different transmitter has different throttle range, please calibrate throttle range before flying.

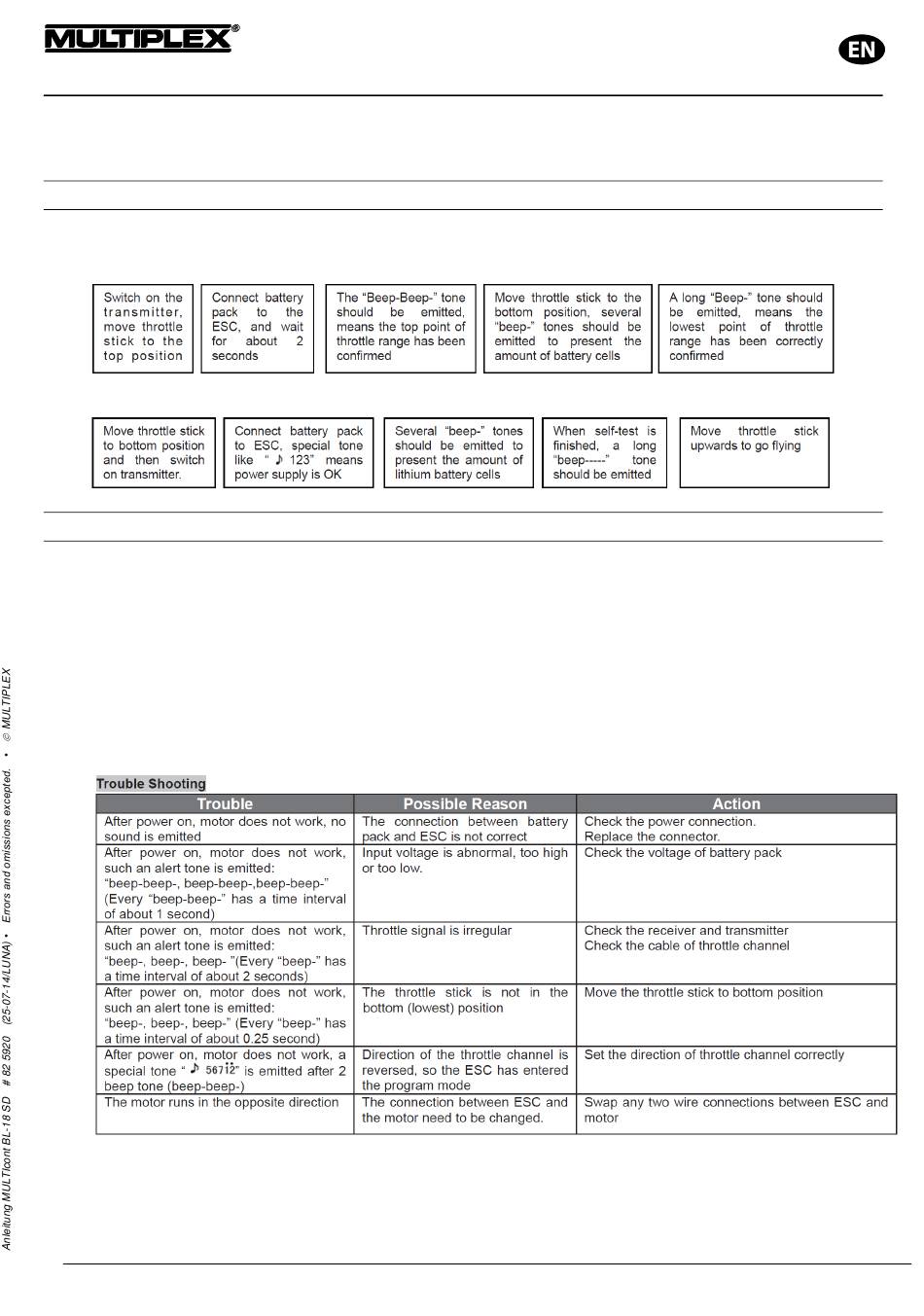

Throttle range setting: (Throttle range should be reset whenever a new transmitter is being used)
Normal startup preocedure:
5. P F
ROTECTION UNCTION
1. Start up failure protection: If the motor fails to start within 2 seconds of throttle application, the ESC will cut-off the output
power. In this case, the throttle stick MUST be moved to the bottom again to restart the motor. (Such a situation happens in
the following cases: The connection between ESC and motor is not reliable, the propeller or the motor is blocked, the gearbox
is damaged, etc.)
2. Over-heat protection: When the temperature of the ESC is over about 110 Celsius degrees, the ESC will reduce the output
power.
3. Throttle signal loss protection: The ESC will reduce the output power if throttle signal is lost for 1 second, further loss for 2
seconds will cause the output to be cut-off completely.
MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • D-75015 Bretten • www.multiplex-rc.de
Operating instructions
MULTIcont BL-18 SD
ESC:
:
Page 2/4
