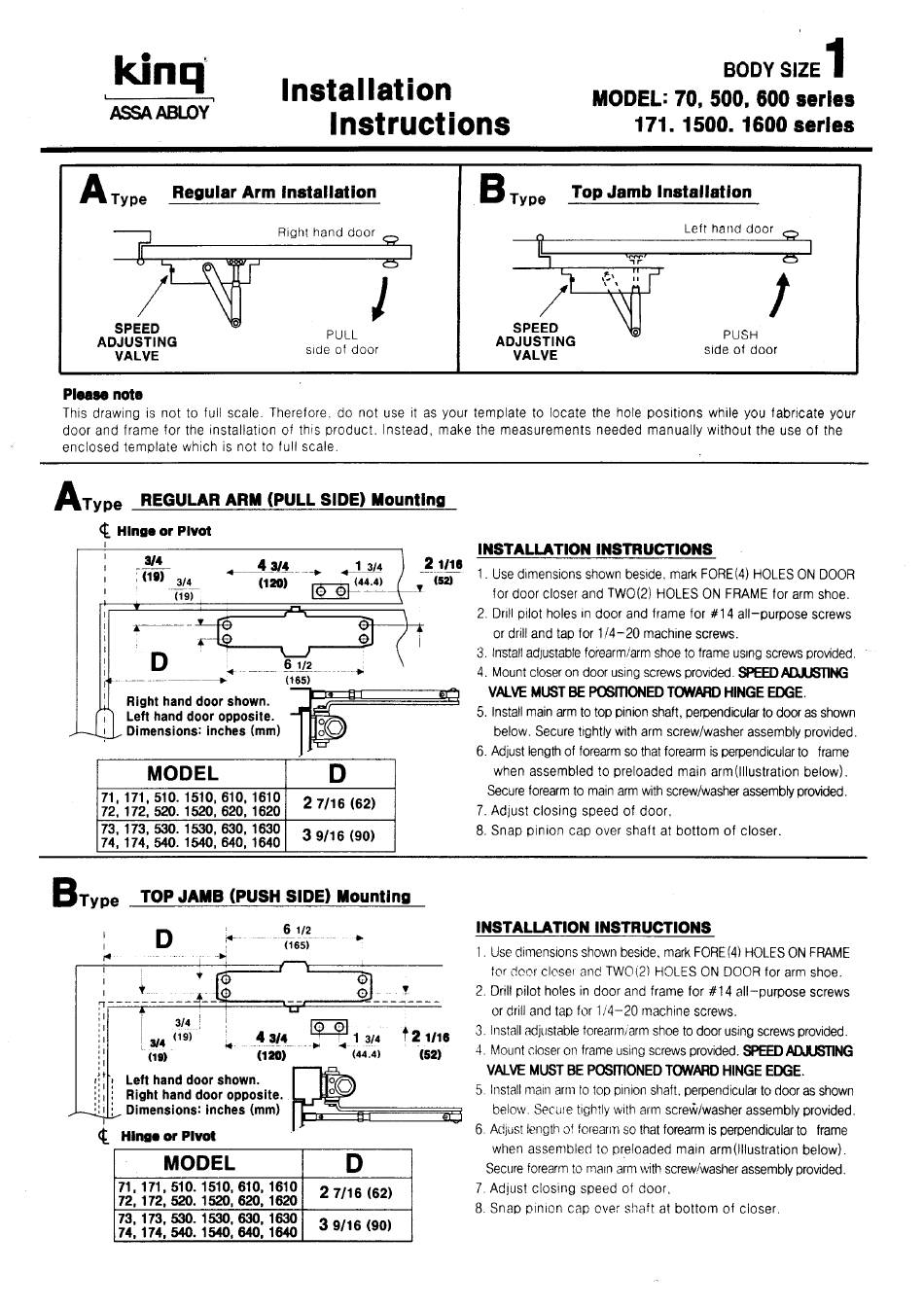

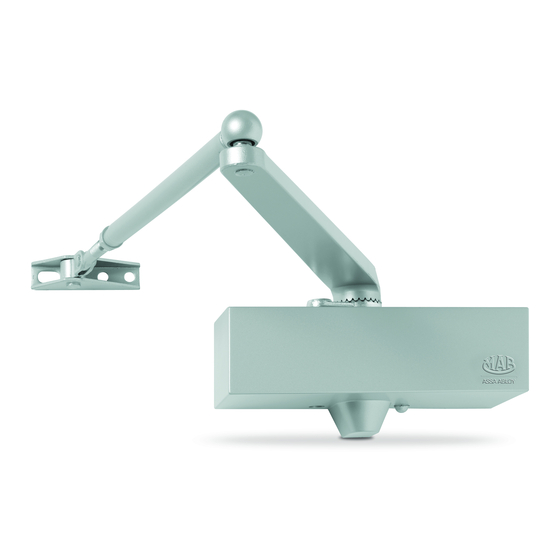

Assa Abloy King 70 Series Installation Instructions

kinq
ASSAABLOY
Installation
Instructions
1
BODY SIZE
MODEL: 70, 500, 600 series
171.1500. 1600 series
Arypp Regular
— 3
r
7^
SPEED ^
ADJUSTING
VALVE
Arm Installation
Right hand door ,_
I
r i
PULL
side of door
D Typo
Top Jamb
Installation
Left hand door -^
L ««. »• '
~-\ 0
SPEED >KJ pi IOLJ
ADJUSTING . . ,"
VALVE
side of door
Please note
This drawing is not to full scale. Therefore, do not use it as your template to locate the hole positions while you fabricate your
door and frame for the installation of this product. Instead, make the measurements needed manually without the use of the
enclosed template which is not to full scale.
lype REGULAR ARM (PULL SIDE) Mounting
Hinge or Pivot
Right hand door shown.
Left hand door opposite.
Dimensions: inches (mm)
1
MODEL
71. 171.510. 1510.610. 1610
72, 172,520. 1520.620. 1620
73, 173,530. 1530.630, 1630
74, 174,540. 1540.640. 1640
D
2 7/16 (62)
39/16(90)
INSTALLATION INSTRUCTIONS
1. Use dimensions shown beside, mark FORE(4) HOLES ON DOOR
for door closer and TWO(2) HOLES ON FRAME for arm shoe.
2. Drill pilot holes in door and frame for #14 all-purpose screws
or drill and tap for 1/4-20 machine screws.
3. Install adjustable forearm/arm shoe to frame using screws provided.
4. Mount closer on door using screws provided. SPEED ADJUSTING
VALVE MUST BE POSITIONED TOWARD HINGE EDGE.
5. Install main arm to top pinion shaft, perpendicular to door as shown
below. Secure tightly with arm screw/washer assembly provided.
6. Adjust length of forearm so that forearm is perpendicular to frame
when assembled to preloaded main arm (Illustration below).
Secure forearm to main arm with screw/washer assembly provided.
7. Adjust closing speed of door.
8. Snap pinion cap over shaft at bottom of closer.
B
Type TOP JAMB (PUSH SIDE) Mounting
6 1/2
(165)
6l
oj
3/4
(19)
3/4
(19)
(120)
t 2
1/16
(52)
Left hand door shown.
Right hand door opposite.
, Dimensions: inches (mm)
Hlng* or Pivot
MODEL
71. 171,510.1510,610. 1610
72, 172, 520. 1520, 620, 1620
73, 173, 530. 1530, 630, 1630
74. 174. 540. 1540, 640. 1640
D
2 7/16 (62)
3 9/16 (90)
INSTALLATION INSTRUCTIONS
1. Use dimensions shown beside, mark FORE (4) HOLES ON FRAME
for door closer and TWO(2) HOLES ON DOOR for arm shoe.
2. Drill pilot holes in door and frame for #14 all-purpose screws
or drill and tap for 1/4-20 machine screws.
3. Install adjustable forearm/arm shoe to door using screws provided.
4. Mount closer on frame using screws provided. SPEED ADJUSTING
VALVE MUST BE POSITIONED TOWARD HINGE EDGE.
5. Install main arm to top pinion shaft, perpendicular to door as shown
below. Secure tightly with arm screw/washer assembly provided.
6. Adjust length of forearm so that forearm is perpendicular to frame
when assembled to preloaded main arm (Illustration below).
Secure forearm to main arm with screw/washer assembly provided.
7. Adjust closing speed of door,
8. Snap pinion cap over shaft at bottom of closer.
