Summary of Contents for Bartscher 174196

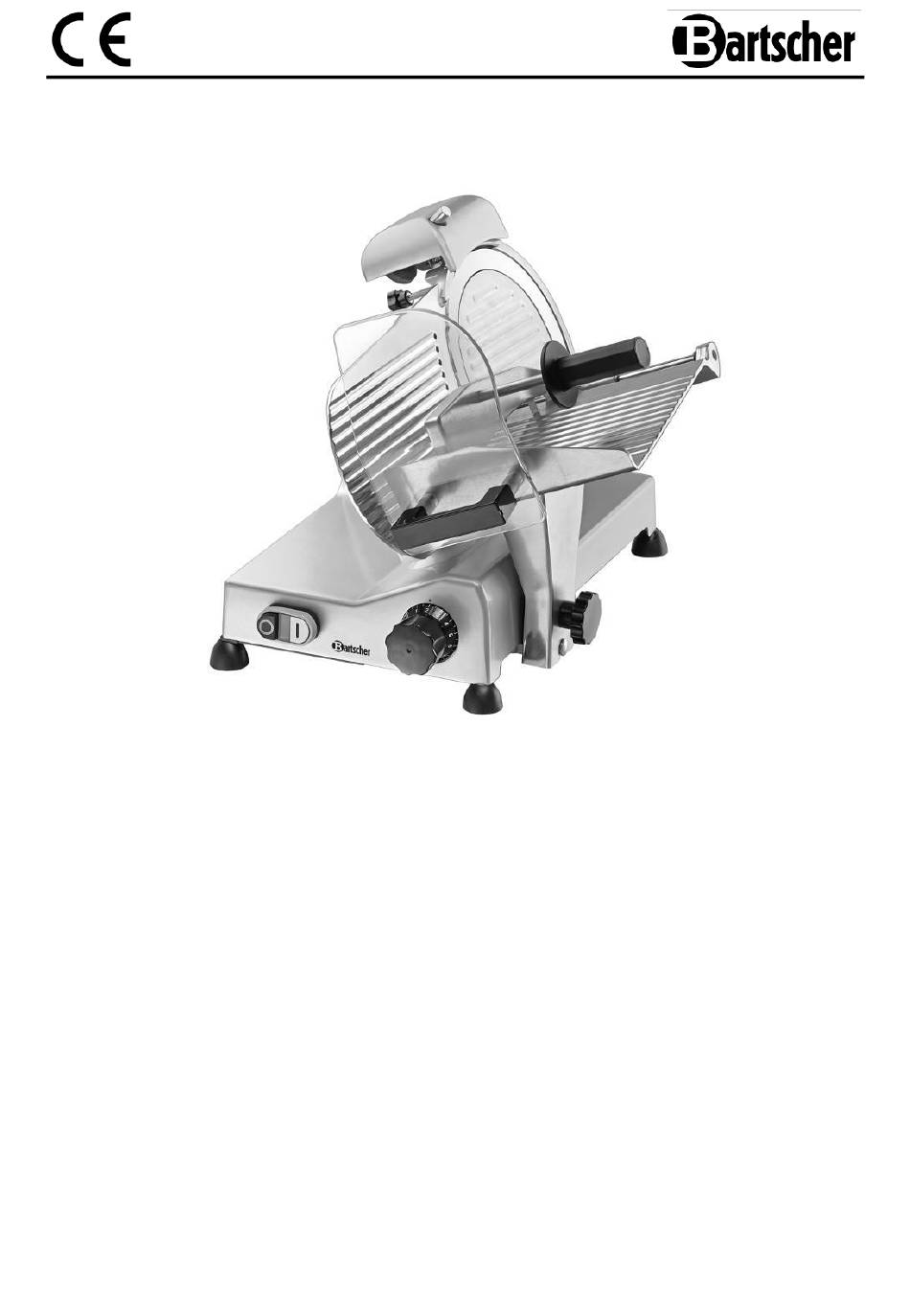

- Page 1 174196 174221 174251 174276 174301 Original-Gebrauchsanleitung V3/0718...
-
Page 2: Table Of Contents
5. Installation and operation ..................37 5.1 Installation ......................37 5.2 Operation ......................38 6. Cleaning and maintenance ..................43 7. Possible Malfunctions .................... 47 8. Waste disposal ......................48 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.2 Safety instructions The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or... - Page 5 Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. Do not use any accessory or spare parts that have not been recommended by the manufacturer.
- Page 6 The supply cable must be disconnected from the socket only by pulling the plug. Never carry or lift the device by the supply cable. In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 7: Proper Use
1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. All technical activities like installation and maintenance must be performed by the qualified service personnel only. The slicer has been designed to cut sausages only. CAUTION! Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
Material: Aluminum, organic glass, plastic Oblique slicer / high power slicer Designed for: sausage Carriage design: removable (except for Code-No. 174196), 2 handles Food carriage tray Slice cutting guide Design: with sharpener Solenoid switch ... -
Page 11: Overview Of Parts
4.2 Overview of parts Fig. 1 Fig. 2 - 34 -... -
Page 12: Auxiliary Equipment
Food carriage tray Sharpener Food carriage Slice cutting guide Slider adjustment knob (except for Sharpener fixing screw model 195 Plus, Code-No.: 174196) Slice thickness adjustment Knife cover fixing screw OFF switch with indicator light Power cable Feet (4) Knife protecting device 4.3 Auxiliary equipment... -
Page 13: Éléments De Sécurité De L'appareil
(11). Carriage locking device (fig. 4). (Models 174221, 175251, 174276, 174301 ; model 174196 – non-removable carriage) The carriage maybe removed only for cleaning, when the slice thickness adjustment is set beyond “0” and the carriage is pulled out towards the slice thickness adjustment. -
Page 14: Installation And Operation
Fig. 4 At the same time, loosen the carriage adjustment knob. If you cannot fully loosen it, pull the carriage once more towards the carriage adjustment knob until there is an audible click of protection device. Fully loosen the guide adjustment knob and remove the guide from the device by pulling it up. -
Page 15: Operation
Put the slicer in such a way that the person operating it could stand straight and stable in front of the device. The operator has to constantly be able to see the slice adjustment and the off button. Always keep the workplace clean and tidy. - Page 16 Before the start check the following aspects (fig. 6): Fig. 6 - connection of the device to the grounded, single socket; - firm connection of the carriage (6) with carriage adjustment knob (7); - carriage movements (6) and no obstacles blocking its movements and no objects on the carriage tray (5) .
- Page 17 WARNING! Injury hazard! In order to avoid accidents, always use the pusher handle (4) to push the sliced product to the cut thickness movable wall (13)! Adjust slice thickness: turn the slice thickness adjustment (8) counterclockwise until it reaches the desired position. ...
- Page 18 Do not remove the pusher handle (4) unless the sliced food is of unusual size or shape. After cutting the carriage (6) is to be put into initial position and the slice thickness adjustment (8) should be set to „0“ position. ...
- Page 19 Loosen the fixing screw (a) of the sharpener (15) on the back side of the device (fig. 9). Remove the sharpener (15) and turn it by 180°. Fig. 9 Put the sharpener (15) into the special rail and tighten the fixing screw (a) again.
-
Page 20: Cleaning And Maintenance
After sharpening clean the knife and sharpener elements. In order to ensure it will operate correctly, keep the sharpener in a good condition. Follow instructions in section 6 “Cleaning and maintenance”. Put the sharpener back to its initial position. Follow the installation instruction in reverse order. - Page 21 Fully loosen the guide adjustment knob and remove the guide from the device by pulling it up. WARNING Model 174196 has no carriage adjustment. The carriage is non- removable. o Wash the carriage (6) with cover (14), pusher (4) and carriage tray (5) using warm water, soft cloth and a neutral cleaning agent.
- Page 22 Knife and knife cover WARNING! Possible cuts danger! The knife is very sharp, under no circumstances one may touch knife blade with bare hands! Wear use cut resistant safety gloves conforming to DIN EN 388 standard (class 5) during knife cleaning in order to avoid possible cuts. o Remove the sharpener from the device.
- Page 23 Knife protecting device and slice cutting guide (fig. 14) Fig. 14 o Undo the bottom bolt (f) of the knife protecting device (20) on the rear wall of the device. Remove the slice cutting guide (16). Undo the top bolt (f) and remove the knife protecting device (20) for cleaning.
-
Page 24: Possible Malfunctions
Maintenance Regular greasing o Regularly grease the carriage with a food- grade machine grease. Put the slicer on its side and apply a small amount of machine grease on both ends of the carriage axle (i) (fig. 16). Move the carriage forward and backward in order to distribute the grease evenly. -
Page 25: Waste Disposal
Electric devices should be used and disposed of properly to prevent the impact on the environment. Disconnect the device from the power supply and remove the power cord from the device. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...
