D-Link DCS-60 Quick Installation Manual page 4

IMPORTANT NOTE:
ALWAYS UNPLUG THE TOP SECTION OF THE EARTH WIRE FROM THE BASE WIRE WHEN
DISASSEMBLING THE HOUSING. REMEMBER TO PLUG THE TOP AND BOTTOM
TOGETHER AGAIN WHEN REASSEMBLING THE HOUSING.

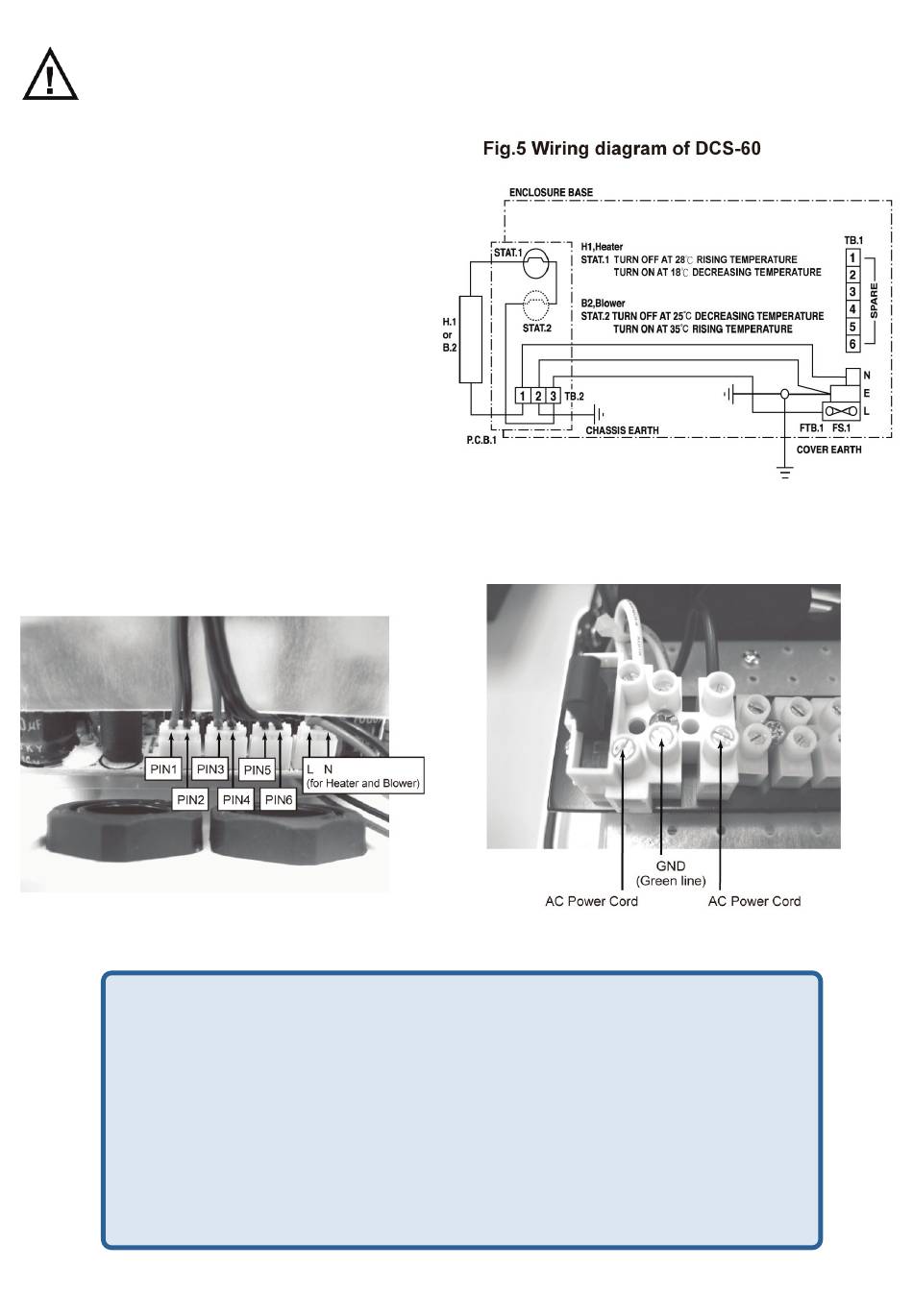

IV. Wiring diagram
Fig.5 shows the internal wiring diagram of
DCS-60 for the window demister.
When necessary, a spare 6 way terminal block is
provided at the rear of the enclosure for the
camera and lens connections.
Circuit identified as follows:
.
TB.1 6 way terminal block
TB.2 3 way terminal block
FTB.1 Fused terminal block
FS.1 3 Amp. Fuse
STAT.1 28℃ Thermostat
STAT.2 35℃ Thermostat
H.1 Heater
B.2 Blower
P.C.B.1 Thermal control circuit board
Fig.6 shows the TB.1 connectors
1. Pin1,2 and pin3,4 is DC12V output for motor lens,
IR illuminator, siren or speaker use. If no use
please remove cable from connector.
2. Pin5,6 is for DC12V output for camera.
Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)
Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am –
Technical Support
United Kingdom (Mon-Fri)
(BT 10ppm, other carriers may vary.)
All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)
€0.05ppm peak, €0.045ppm off peak Times
http://www.dlink.co.uk
Fig.7 AC power connection
Shows how to connect the AC power cord
to the FTB.1 connector.
