Diamond Antenna X500HA Manual

X500HA
SO-239 (UHF)
X500HNA
Type-N Female
2m/70cm Dual Band High Performance Gain Vertical Antenna
Direct Joint System ¥ FRP Outershell ¥ Linear Phase Shifter System
¥

Description

Newly developed Linear Phase Shift technology and Direct Joint
structure by three-piece FRP outershell enables antenna to
achieve the following performance:
1. 2m 5/8 wave three-element C-Load and 70cm 5/8 wave
eight-element structure.
2. High performance and high maximum power rating at 2m and
70cm bands.
3. Low VSWR and broader coverage at 2m and 70cm bands.
4. Overlapping three-piece FRP outershell structure is strong
enough to compete with one piece structure.
5. Ring gasket provides perfect waterproofing.
6. Ideally tapered FRP outershell has enough thickness to
withstand strong wind and avoid unwanted QSB.
7. Joint bracket can be fastened securely by special
wrench attached.
8. DC ground structure of the antenna protects transceiver from
high voltage caused by thunder and lightning.
9. Feedpoint connector is being exposed downward at the
bottom of support pipe to make antenna installation or
detachment easier.
10.With optional 2m/70cm duplexer, two bands can be
transmitted simultaneously, or one band can be transmitted
while simultaneously receiving the other band.
¥

Specifications

Frequency: 144–148MHz, 435–450MHz
Gain: 8.3dB (2m), 11.7dB (70cm)
Impedance: 50Ω
VSWR: Less than 1.5:1
Max Power Rating: 200W
Max Wind Resistance: 90 MPH
Mast Diameter Accept.: 1 1/5" to 2 2/5"
Length: 17.8'
Radial Length: approx. 20.5"
Weight: 5.73 lbs.
Type: 5/8λ three-element C-Load antenna (2m)
5/8λ eight-element C-Load antenna (70cm)
DIAMOND ANTENNA Products are distributed by RF PARTS COMPANY
435 S. Pacific Street ¥ San Marcos, CA 92078 ¥ (760) 744-0900
www.diamondantenna.net
¥

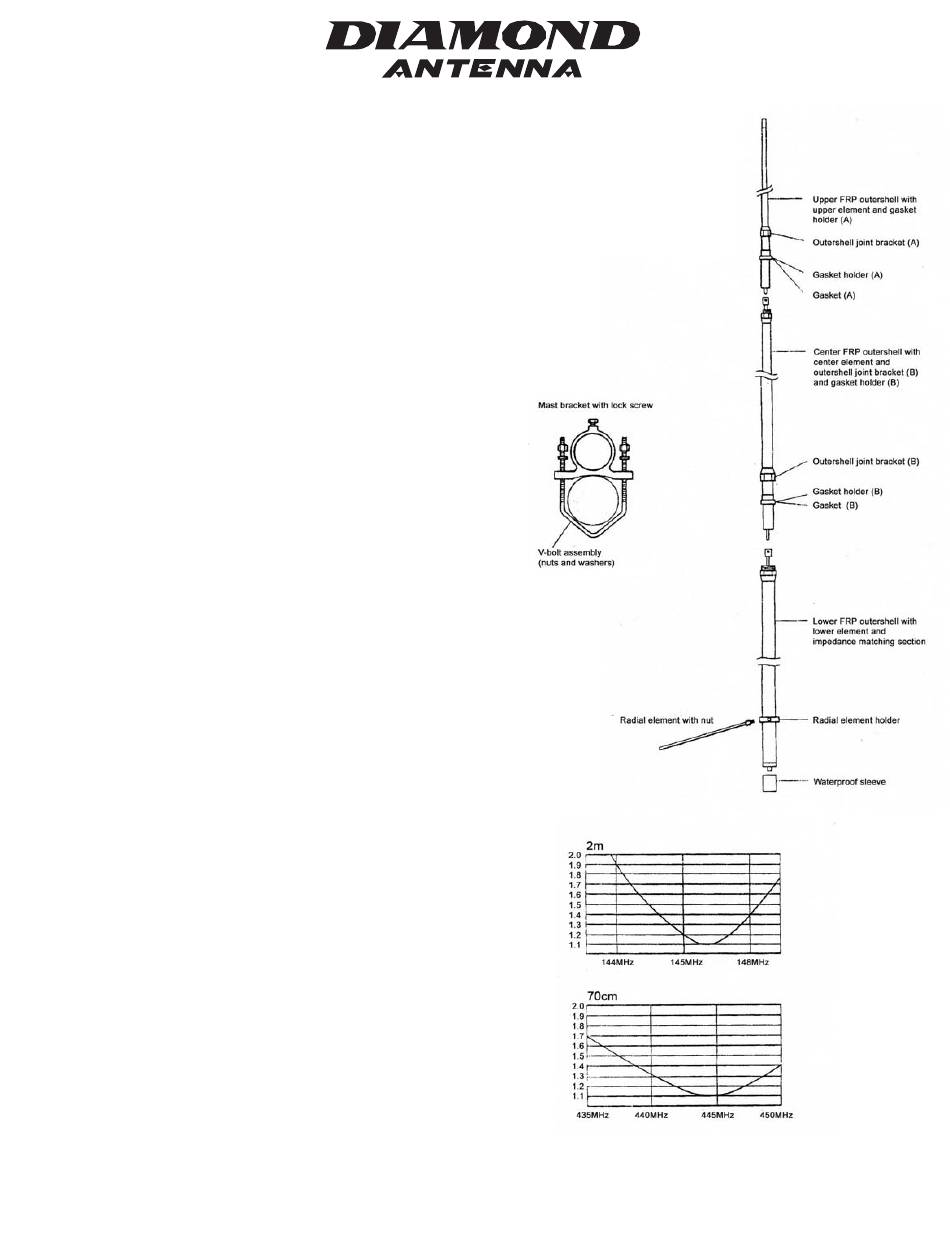

Parts Diagram

¥
