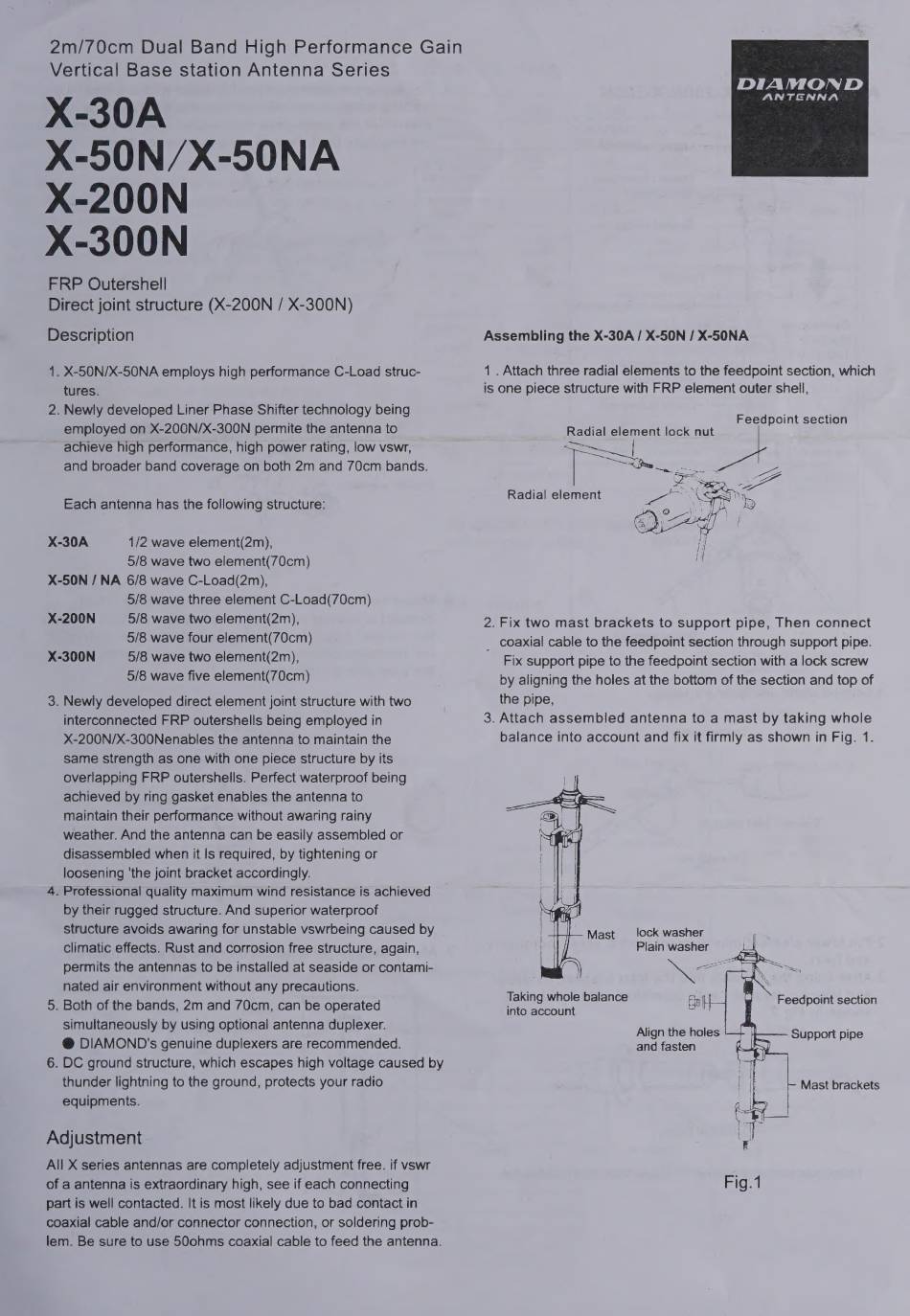

Diamond Antenna X-30A Manual

2m/70cm Dual Band High Performance Gain
Vertical Base station Antenna Series
X-30A
X-50N/X-SONA
X-200N
X-300N
FRP Outershell
Direct joint structure (X-200N / X-300N)
Description
1. X-50N/X-50NA employs high performance C-Load struc-
tures.
2. Newly developed Liner Phase Shifter technology being
employed on X-200N/X-300N permite the antenna to
achieve high performance, high power rating, low vswr,
and broader band coverage on both 2m and 70cm bands.
Each antenna has the following structure:
X-30A 1/2 wave element(2m),
5/8 wave two element(70cm)
X-50N / NA 6/8 wave C-Load(2m),
5/8 wave three element C-Load(70cm)
X-200N 5/8 wave two element(2m),
5/8 wave four element(70cm)
X-300N 5/8 wave two element(2m),
5/8 wave five element(70cm)
3. Newly developed direct element joint structure with two
interconnected FRP outershells being employed in
X-200N/X-300Nenables the antenna to maintain the
same strength as one with one piece structure by its
overlapping FRP outershells. Perfect waterproof being
achieved by ring gasket enables the antenna to
maintain their performance without awaring rainy
weather. And the antenna can be easily assembled or
disassembled when it Is required, by tightening or
loosening 'the joint bracket accordingly.
4. Professional quality maximum wind resistance is achieved
by their rugged structure. And superior waterproof
structure avoids awaring for unstable vswrbeing caused by
climatic effects. Rust and corrosion free structure, again,
permits the antennas to be installed at seaside or contami-
nated air environment without any precautions.
5. Both of the bands, 2m and 70cm, can be operated
simultaneously by using optional antenna duplexer.
@ DIAMCND's genuine duplexers are recommended.
6. DC ground structure, which escapes high voltage caused by
thunder lightning to the ground, protects your radio
equipments.
Adjustment
All X series antennas are completely adjustment free. if vswr
of a antenna is extraordinary high, see if each connecting
part is well contacted. It is most likely due to bad contact in
coaxial cable and/or connector connection, or soldering prob-
lem. Be sure to use 50ohms coaxial cable to feed the antenna.
DIAMOND
ANTENNA
Assembling the X-30A / X-50N / X-50NA
1 . Attach three radial elements to the feedpoint section, which
is one piece structure with FRP element outer shell,
Feedpoint section
Radial element lock nut
= |
Radial element eo en
2. Fix two mast brackets to support pipe, Then connect
_ coaxial cable to the feedpoint section through support pipe.
Fix support pipe to the feedpoint section with a lock screw
by aligning the holes at the bottom of the section and top of
the pipe,
3. Attach assembled antenna to a mast by taking whole
balance into account and fix it firmly as shown in Fig. 1.
lock washer
Plain washer
Taking whole balance
: Feedpoint section
into account
Bott
Align the holes
and fasten
Support pipe
