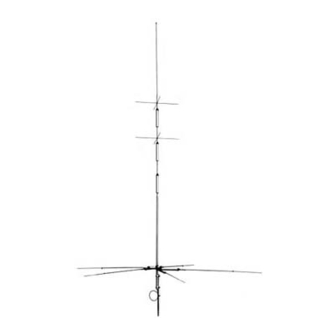

The CP6A is a multi-band trap-vertical antenna for HF bands, covering the 80, 40, 20, 15, 10m & 6m amateur bands.
Made from heavy duty aluminum, the CP6 is easily assembled, yielding excellent performance and reliability from
a compact base station antenna.
FREQUENCY:
POWER:
IMPEDANCE:
VSWR:
ELEMENT PHASING:
GROUNDING:
MAX WIND RATING:
MAX DIA ACCEPTANCE:
OVERALL LENGTH:
WEIGHT:
CONNECTOR:
The CP6 is a compact vertical antenna using loading-coil radials. The compact size offers many options on mounting
location. When choosing a mounting location, keep the following factors in mind:
(1) Resonant frequency of HF antennas can change based on location. Antenna should be mounted away from trees, build-
ings and other antennas.
(2) If mounting near house or balcony, best performance will be achieved if mounted at least 15 feet away from structure.
(3) To avoid unsafe conditions, do not install near electrical or power lines.
6 Band Trap Vertical 80-6m
80 – 40 – 20 – 15 – 10 – 6m
200 Watts P.E.P.
50 Ohms
1.8:1 (Nominal). See table A for tuning.
1/4 Wave trap vertical groundplane.
Direct Grounding. Antenna element & radials connected to mounting pipe.
80 MPH (no ice)
1.2 – 2.4 inches
15.10 feet (4.9kg)
9.9 lbs. (130 g)
SO-239 female UHF
Antenna Location & Mounting
DIAMOND ANTENNA Products are distributed by RF PARTS COMPANY
435 S. Pacific Street • San Marcos, CA 92078 • (760) 744-0900
www.diamondantenna.net
CP6
Instruction Sheet

Specifications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Diamond Antenna CP6

  • Page 1 SO-239 female UHF Antenna Location & Mounting The CP6 is a compact vertical antenna using loading-coil radials. The compact size offers many options on mounting location. When choosing a mounting location, keep the following factors in mind: (1) Resonant frequency of HF antennas can change based on location. Antenna should be mounted away from trees, build- ings and other antennas.
  • Page 2 Antenna Assembly Instructions Before assembly, verify all parts are included for proper assembly. The following tools will be required for assembly: tape measure, phillips screwdriver, and two crescent wrenches or metric open-end wrenches. Radial Assembly. Assemble each radial trap coil (part #: 15210-15215) to a radial element (part #: 15216) using fastener ring (part #: 15217);...
  • Page 3 Antenna Description Part Description Part # Description Quantity 15201 Mounting clamps w/u-bolts 15202 Support pipe 15209 15208 15203 Radial element holders (CP-6) 15204 Matching network 15205 Assembly pipe #1 15206 Double element trap coil assembly 15223 15207 Single element trap coil assembly capacity hat 15208 Assembly pipe #2...
  • Page 4 (see Table A) page 4 Fig. A Fig. B Fig. C One Direction Mounting standard mounting Fig. E Fig. D Checking VSWR Fig. F Fig. G...
