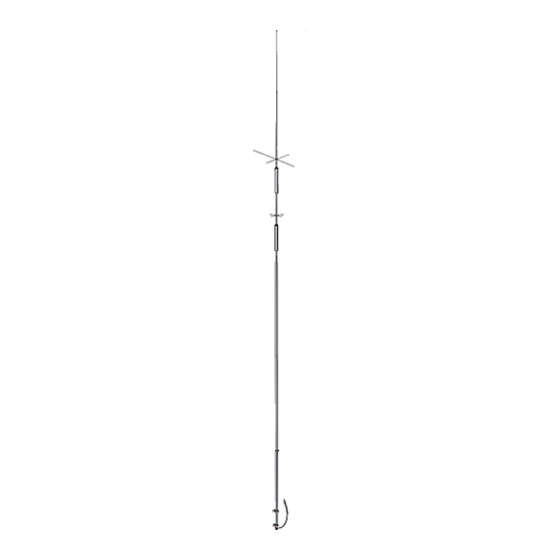

80m and 40m Dual-band Vertical Antenna
KV2
Operation Instructions
・ Description
① The KV2 is a dual-band vertical
  antenna for HF low band.
② Compact, light weighted and very
  easy to assemble.
③ It is completely self-supported and
  does not need any guy wires.
④ Center frequencies of the antenna
 are adjustable in each band simply
  by change capacity hat.
⑤ Top loading structure utilizing  
  capacitive hat enables the antenna
  to complete with full quarter wave
  length antennas in its performance.
⑥ It is rigid and rugged enough to
  withstand the wind pressure over
  35m/sec.
⑦ Mast brackets area adjustable to
  accept 1 1/5" to 2 1/3" diameter
  mast.
・ Parts Description
Parts #
Description
M42001 Pipe No. 1 φ7.4
M42002 Pipe No. 2 φ10
M42003 Pipe No. 3 φ30
M42004 Pipe No. 4 φ30
M42005 Pipe No. 5φ33.2
M42006 S trap
M42007 Loading Coil for 7MHz
M42008 Hat (included extra 2pcs)
M42009 Hat S (included extra 2pcs)
M42010 Hat SS
M42011 Hat ring
M42012 Mast Bracket(with Set screw
and insulation)
M42013 Mast Bracket (with set screw) 1
M42014 Feeding cable
M42015 V volt assembly (with nut,
spring washer)
M42016 Hose clamp
M42017 Tapping screw M4x8
M42018 Inner tooth washer M4
M42019 Tapping screw M5x15
M42020 Self melting plastic sealing
tape
・ Parts Description
Qty
1
1
1
1
1
1
1
4
4
4
2
1
1
2
1
10
10
1
1
Self melting plastic sealing tape
M42020
V volt assembly
(with nut, spring washer)
M42015
Pipe No. 1 φ7.4
M42001
Pipe No. 2 φ10
M42002
Hat
M42008
Hat ring
M42011
Hat ring
M42011
Tapping screw M4x8
M42017
Inner tooth washer M4
M42018
Tapping screw M4x8
M42017
Inner tooth washer M4
M42018
Hat S
M42009
S trap
M42006
Tapping screw M4x8
M42017
Inner tooth washer M4
M42018
Hat SS
M42010
Loading Coil for 7MHz
M42007
Tapping screw M4x8
M42017
Inner tooth washer M4
M42018
Pipe No. 3 φ30
M42003
Tapping screw M4x8
M42017
Inner tooth washer M4
M42018
Pipe No. 4 φ30
M42004
Hose clamp
M42016
Pipe No. 5φ33.2
M42005
Mast Bracket
(with Set screw and insulation)
M42012
Mast Bracket (with set screw)
M42013
Feeding cable
M42014
Tapping screw M5x15

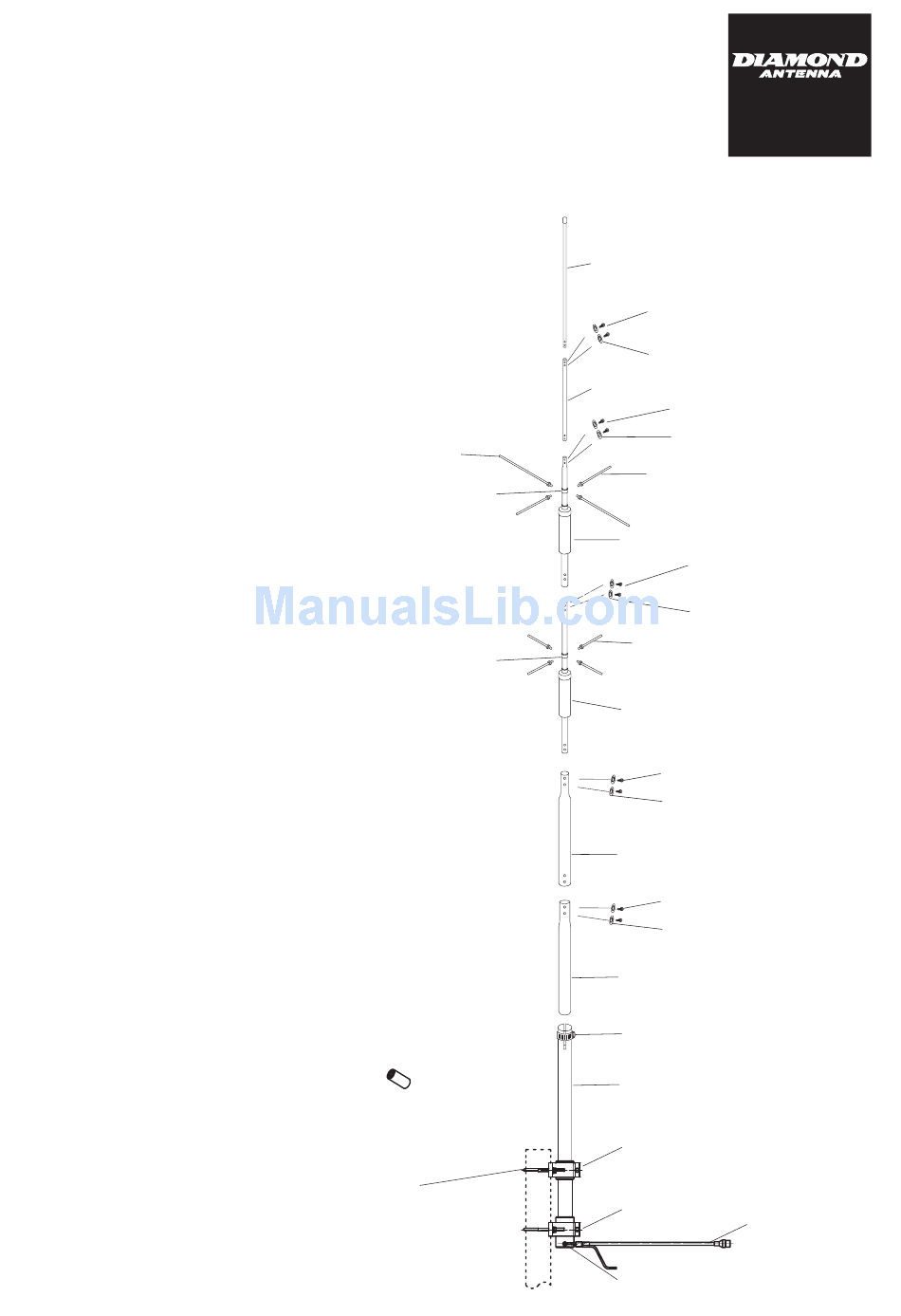

(Figure−1)
M42019
