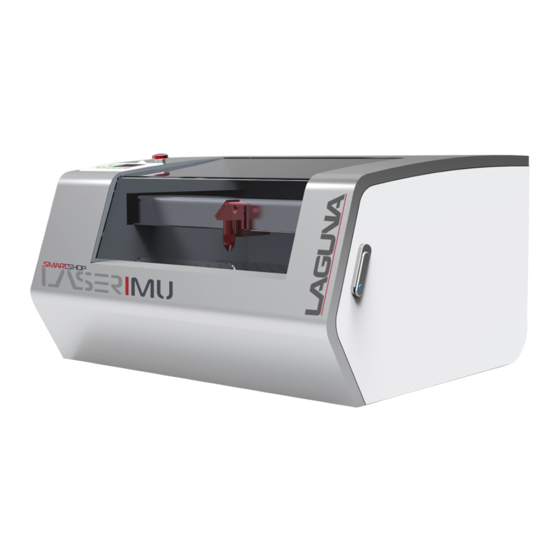

SmartShop Laser | MU
MCNC-LTL-CO2-MU-2012-40
ltl-CO2-MU-2420-40
ltl-CO2-MU-2420-80
LAGUNA TOOLS
17101 Murphy Ave.
Irvine, California 92614
Ph: 800.234.1976
www.lagunatools.com
© 2017, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
Model Numbers MCNC-LTL-CO2-MU-2012-40
ltl-CO2-MU-2420-40
ltl-CO2-MU-2420-80

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartShop MCNC-LTL-CO2-MU-2012-40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Laguna Tools SmartShop MCNC-LTL-CO2-MU-2012-40

Summary of Contents for Laguna Tools SmartShop MCNC-LTL-CO2-MU-2012-40

  • Page 1 MCNC-LTL-CO2-MU-2012-40 ltl-CO2-MU-2420-40 ltl-CO2-MU-2420-80 LAGUNA TOOLS 17101 Murphy Ave. Irvine, California 92614 Model Numbers MCNC-LTL-CO2-MU-2012-40 Ph: 800.234.1976 ltl-CO2-MU-2420-40 www.lagunatools.com ltl-CO2-MU-2420-80 © 2017, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.

  • Page 2: Table Of Contents

    Directory 2.2 Equipment Composition.................... 7 2.2.1 Equipment Composition................. 8 2.2.2 Transmission System..................9 2.2.3 Optical System....................10 2.2.4 Control System....................11 2.2.5 Peripheral equipment..................12 2.3 Front of the Machine....................15 3.Equipment Installation......................16 3.1Preparation before Installation..................16 3.1.1 Site Preparation..................... 16 3.1.2 Personnel Preparation................... 16 3.1.3 Tool Preparation....................
  • Page 3 6.2 Software Operation......................46 6.2.1 Software Setting....................... 47 6.2.2 Cutting Test......................50 7. Equipment maintenance and repair....................54 8. CO2 Laser Tubes of Glass Usage Considerations..............56 Preface Thank you for choosing our products. We will provide you with comprehensive after-sales service and solutions, please keep this instruction booklet and other attachments for your better use later.
  • Page 4 maintenance. If it’s your first time to use this product, please read this information carefully before installation and use. For quick and efficient using this equipment, the user should meet conditions as below: A. Operator requires a certain amount of computer expertise to edit the graphics software ,For Example: Coreldraw,Photoshop ,Autocad and other CAD software.
  • Page 5 Our Equipment Adopts the Fourth Laser that the wavelength is 10.6μm, Recommended that the operator wear the accredited laser protective glasses. Even wear the laser protective glasses and do not look directly at the laser beam or any reflection of the laser beam. 1.3 Electricity Security Observe the machine nameplate carefully such as power and voltage requirement before you access the power supply.
  • Page 6 1-1 Machine Model Description Example:BCL1309XU means working area:1300mm×900m with up-down system. 2.1 Nameplate Introduction The nameplate fixed on the right rear of the device which can get more equipment information.No randomly change or demolition.

  • Page 7: Equipment Composition

    Unique Equipment Number 2.2 Equipment Composition Machine Appearance or the some details are different because of the model or Machine improvement.Specific to the material object as the standard. Laser Head Liner Guide Nozzle Connector Belt Slider Red Dot System...

  • Page 8: Equipment Composition

    2.2.1 Equipment Composition Laser Machine Machine Transmis Optical Control Tool Box Peripheral Body sion System System equipment System...

  • Page 9: Transmission System

    Picture 1: Machine body：body、transom、upper shield,Up&Down table 1-Liner Guide 2-Laser head 3-Slider 4-Belts 5-Stainless Steel Working Table 6-Photoelectric switch 7-Nozzle Connector 8-Red Dot System 2.2.2 Transmission System Transmission Shaft Motor Transom...

  • Page 10: Optical System

    Slider Liner Guide Belts Belt Picture 2: Transmission System is Composed of Motor ,Driver , Transmission Shaft,Liner Guide,Slider,Belt. 2.2.3 Optical System Note: Laser tube must be handled with care during installation;High Voltage and Cathode lines should be tense properly;Water inlet on the upper and outlet on the below(Reci Tube);Ensure that no bubble inside the tube;Evenly Strength on both sides when fix the laser tube on the Basement.Make sure it Solid and not crushed.

  • Page 11: Control System

    Third Reflector First Reflector Second Reflector Focal Lens Picture 3:Optical System :Three Reflectors and Focal Lens Device 2.2.4 Control System Control Systems are different because of the machine model,Specific to the material object as the standard! Our control systems as below :Leetro 、Ruida Ruida Control Panel Ruida Control Card...
  • Page 12 Leetro Control Panel Leetro Control Card Power Supply Control Card Laser Power Supply Data Line Driver Relay Picture 4: Control System:Control pane, Control Car,Computer...

  • Page 13: Peripheral Equipment

    2.2.5 Peripheral equipment Exhaust Fan Socket Water Pump Air Pump Picture 5: Peripheral equipment:Water Pump,Exhaust Fan ,Air Pump 2.2.6 Tool Box...
  • Page 14 Certification Power Supply Line Data line Adhesive Tape Limit Switch High pressure tape U Disk Water/Air Pump Fork wrench Allen wrench Laser Path shovel blade Focus Distance Block Adjustment Block Picture 6 Tool Box Note:Tool Box is different because of the machine model,Specific to the material object as the standard.! Limit switches :Proximity switches and Micro switches...

  • Page 15: Front Of The Machine

    Focal Distance Block shovel blade Usage Focus Distance Block Usage Picture 7 Shovel Blade Focus Distance Block 2.3 Front of the Machine Emergency Stop On/Off button Control Panel Picture 8:Control Panel...

  • Page 16: Equipment Installation

    Three-hole Strip Ground Line Connector Power Supply Connector Fuse Air Pump Connector Water Outlet Water inlet Picture 9: Machine Power Supply Socket 3.Equipment Installation 3.1Preparation before Installation 3.1.1 Site Preparation Equipment should be set in dry environment without electromagnetism and high-strength electricity, without pollution's disturbance and effect. Temperature of working environment is 10-38℃, humidity is 10-90%, AC 220V±10%, 50HZ,resistance to ground should be smaller than 5Ώ.

  • Page 17: Tool Preparation

    3.1.3 Tool Preparation There is tool box with this machine. Besides, multimeter and screw driver and other detection tools are needed. 3.1.4 Other Preparation Purified water for water chiller, power strip, pipe for discharge smoke, sample material, etc. 3.2 Installation procedure 3.2.1 Package of Laser Tube In case of damage during transportation or outside force, the tube is packed with sponge.

  • Page 18: Water Pump Installation

    Basement Water Outlet High Voltage Water Inlet Water Flow Direction Low-Voltag Picture 10:Laser Tube Installation 3.2.2.1 Use Allen wrench M3 take off the screws that fix the laser tube and remove the upper parts. Put the low voltage side of the laser tube on the basement that nearby the First reflector mirror.
  • Page 19 3.2.3 Water Pump Installation Water Outlet Picture 11 Water Pump ▲Find one container, fill in purified water or distilled water. ▲Put the water pump into this container. ▲Connect the water pump Outlet with the machine water inlet by water pipe. Picture 11 Water Pump Installation Notice：...

  • Page 20: Exhaust Fan Installation

    ● Do not touch high voltage lines during working or shut down the machine for a while,or may cause an electric shock and threaten safety. 3.2.4 Exhaust Fan Installation Clamp Air Pipe Exhaust Fan Picture 13: Exhaust Fan Connection Attention ,Exhaust fan is different because the model,Specific to the material object as the standard.

  • Page 21: Ground Line Connection

    3.2.5 Air Pump Installation Connect the Silicone with the machine air connector by a shorten air pipe.please ensure the laser head blow works fine when power on the machine.as the upper picture. Air Pump(compressor)plays an important role in the whole system,the air filter is necessary for the high pressure gas to prevent that the pollution of the focal lens and thus effect the engraving.or it will broken the focal lens.keep the air pipe connector unobstructed :on one hand can keep the...

  • Page 22: Equipment Debugging

    4 Equipment Debugging 4.1Inspection before Debugging Before power on, please inspect and make sure all electric wire terminals are intact. And move the laser head and X axis beam to make sure they are smooth enough. Power on when everything is ok. 4.1.1Boot Process Power On: Connect the Power supply lines→turn the Emergency stop→press the...

  • Page 23: Laser Path Debugging

    If there is no facula or weak light, then you need check whether you have set the ammeter on the max value, or whether the water chiller is connected in right way. If still have no light from tube, then there may be some defect of laser tube or laser power supply.
  • Page 24 to achieve the best cutting and engraving effect.During this period ,there will be no laser if the screws are loosen. 4.2.2.1 Needed Parts for Debugging: Laser Path Adjustment block,Adhesive Tape, Focal Distance Block,Shovel Blade,Pliers. 4.2.2.2 Laser Path Debugging Steps Work Principle：Put the reflected Facula as the point,and then put it in the center through by adjusting the position of the laser tube.
  • Page 25 No.1 Screw No.2 Screw No.3 Screw From the first reflector to second reflector, the laser beam should be fell on the same point from both nearest and farthest position to the first reflector. Upper--please adjust No.1 screw; Lower--please adjust No.1 and No.2 screw; Left—please adjust No.2 screw;...
  • Page 26 No.21 Screw No.22 Screw No.23 Screw No.11 Screws (Two) Accordingly, from second reflection mirror to third reflection mirror, laser should fall on the same upper side of the center slightly. Upper—adjust No.21 screw; lower—adjust No.21,22 screw; Left—adjust No.22 screw; Right—adjust No.21,23 screw.
  • Page 27 If light is on same point and not on upper side of the center slightly: Left or Right -- you need to adjust No.11 screw; Upper / lower -- please adjust the position of laser tube. No.31 Screw No.32Screw No.33 Screw put a double sides adhesive tape on the outlet of the laser head, take left hand side as left, right hand, right;laser tube side, front...

  • Page 28: 3Test Processing

    The Facula should be in the center of the outlet as Picture A If not: Left -- adjust No.32 screw; Right -- adjust No.31 and 33 screw; Front -- adjust No.32 and 33 screw; Back -- adjust No.31 and 32 screw. Picture A Attention: Laser is invisible light but can do harm to human body.

  • Page 29: Simple Operating Instructions

    5. Simple operating instructions Before operation, please electrify the equipment, then connect the machine USB and computer USB with USB data line. Simple operating instructions A. Double click on ‘RDCAMSetup6.exe’ in the disk then indicate the dialog box as below:...
  • Page 30 B. Click【Install】button. Installation interface shows up as below: C. Click Firstly. The following dialog box shows up. D. After confirming USB data line is connected well, click “ok”.The following dialog box shows up.
  • Page 31 E. After installing USB drive, click to install software. After that, the following dialog box will show up and indicate that the software has been installed successfully. Esc: F.After finishing all installations, click【 】to end up installation process. The user may need to install some different software (install external software while installing LaserWork).

  • Page 32: Data Line Using Operation

    5.2Data line using operation Before operation, the machine has been started. All accessories such as water chiller and pump can function well 5.2.1 Parameter Matching Different machines have different versions. The purpose of reading parameters is to match “Supplier Parameter” and “User Parameter”...
  • Page 33 Insert the Password“rd8888” : Click “Read”after enter into the interface: Click “user” as shown in the following picture.Click”Read”:...
  • Page 34 Attention: if changing main board or parameters, please first go through “Read” Then find parameters of CD or U disk and go through “Open” and“Read In the U disk or CD along with the machine, find the file folder named by machine serial number.
  • Page 35 Files of Machine with Series Number Click Open You can check“CHANGJIA.RDVSet”after open it ：...
  • Page 36 Click Open After opening it,“Insert Succeed shows up. Click “User” as shown in the following picture.According to the supplier’s setting mode, follow the sequence of read—open—write to import user parameters.

  • Page 37: Make Simple Pictures&Set Picture Layers

    After importing parameters of the supplier and user, close the software. Reopen the software, you can use it normally. 5.2.2 Make simple pictures&Set picture layers A .In the software, choose “Rectangle”and draw a simple square. Then modify the size...
  • Page 38 Modify the Size B. Click “TEXT”. Click once in the drawing zone.In the dialog box, edit text and click “OK”button.
  • Page 39 Select the Color Layer after finish the text.: Color Layer Area...

  • Page 40: Set Working Mode

    5.2.3 Set working mode Select the Power and Speed according to the materials.(take the parameter sheet as reference) 5.2.4 Download files Click “Download”，Name the file and confirm “ok” Download Here...

  • Page 41: Equipment Operation

    5.2.5 Equipment Operation On the main board, press”File”...
  • Page 42 Find your file, press”Enter” Put your processing object in a right position, adjust a proper focal distance.

  • Page 43: U-Disk Operation

    Origin Start-Pulse “Origin”-- “Frame”--“Start-Pulse” 5.3 U-disk Operation (same as Data Line Operation will not be illustrate again) After set parameters of “Power” “Speed” “Processing Mode”save the file into U-disk.
  • Page 44 Save To U File Connect U-disk into U-FLASH. Choose “Read U disk” , Press “Enter”, Choose your file which need to be processed, choose “Copy to Memory”, Press”Enter”. (Notice: the file name you will process should not be the same as your previous imported file in the main board, if so, U-disk file will not allowed to import again, you need to change another name then import it into the main board)

  • Page 45: Rotary Processing

    6. Rotary Processing 6.1 Electrical Installation 6.1.1 Rotary Connection Place the rotary on the working table and keep flatness.

  • Page 46: Software Operation

    Unplug the aviation plug that connected with driver. Connect the male connector on driver with female connector on the rotary. 6.2 Software Operation Start up: Reset machine with Metal. Click the limited switch on Y-axis TWO TIMES to help it reset. Pictures as followed:...

  • Page 47: Software Setting

    6.2.1 Software Setting Open the software”RDWorks”, File--Vendor Setting--Vendor Parameter Password: rd8888--OK Press “Read”, then close the dialog box.
  • Page 48 NOTICE: RECORD ALL INITIAL PARAMETERS BEFORE THE FOLLOWING MODIFICATION. It has to be recovered when not use rotary. In the right side of software, choose “ User”--Press “Read”...
  • Page 49 In the following “Cut Parameters” with red frame, REMOVE A ZERO, like: 200.00-20.00, 3000.000-300.00, 20.000-2.000, 400.000-40.000, 3000.000-300.00, refer as followed: Press “Write”...

  • Page 50: Cutting Test

    6.2.2 Cutting Test “Circle pulse” will be changed according to the diameter of processing object. Formula in the following: Actual Pulse= {theoretic pulse * theoretic length}/actual length Illustration: engrave a 20mm line on the bottle (diameter=65mm) (1) Output--check the box “ enable rotate engrave”--Circle Pulse: 1000--Diameter: 65mm, refer to the following: Noted: a.
  • Page 51 b. Diameter: processing object’ s diameter (2)Draw a 20mm line in the software, parameter setting: suggest “max speed=15mm/s”, “ max power=15%”, download. (3) Stick a pare tape on the surface of processing object. (4) Set right rotary, adjust the processing object in a right position, pull laser head just above the processing object.
  • Page 52 Notice: Direction of rotary confirmation: Press Direction Button on the control panel, if the direction of rotary wheel is apposite with the button on control panel, that is correct. If is not, the engraving image will be mirror image, Then turn the rotary 90 degree. (5) Adjust proper focal distance then start engraving (6) Measure the length of line...
  • Page 53 Through measurement, the length is 16.5mm, it is not matched with previous setting parameter 20mm, so the circle pulse (10000) is not correct. (7) Revise circle pulse, and figure out the following according to formula: Actual pulse={10000*20}/16.5=12121 Then fill this value and diameter into the following parameter setting:...

  • Page 54: Equipment Maintenance And Repair

    Notice: A. The direction of rotary will influence the engraving effect, if direction is wrong, the engraving image will reverse. B. When you do not use rotary, don’t forget set the parameters into initial, and removed the check of “enable rotate engrave ” 7.
  • Page 55 water tank per week） Attention: before machine starts to work, be sure that laser tube is full of water and without bubble. Recycling water's quality and temperature could affect laser tube's lifespan directly. We suggest to use pure water, and control the water under 35℃。If it's higher than 35, then need to change recycling water, or add ice to water(we suggest customers choose water chiller, or use two water tanks)

  • Page 56: Co2 Laser Tubes Of Glass Usage Considerations

    from lens frame and clean them with same way, and put back after finishing. Attention:①wipe the reflectors and lens softly, do not damage their surface coating film;②handle gently during wiping to avoid falling down;③the convexity side must be arranged downward. 6.5 Guide rail's clean (suggest clean half a month, power off operation) As key parts, guide rail and straight line axis play role of guiding and supporting.
  • Page 57 water should adopt software(distilled water or pure water), and frequently pay attention to cooling water's temperature, should be within 12-30℃. It should not be too low or too high, especially in summer. Once water's temperature is too high, should change cooling water in time or stop the equipment for some time.
  • Page 58 hazard. In order to protect high voltage sheath from dust, please entangle plastic wrap on it. 8.6 During using of laser tube, there should be no scale inside laser tube in case to cause water plugging, thus affect cooling effect. Once there is any scale, use 20% diluted hydrochloric acid clean it.
  • Page 59 6. If short circuit water protector, there is Main board or wiring board still no light has problem, need to change 1. Check working light's intensity and Enlarge light's intensity, speed, if speed is too fast, intensity is lower down speed, change small, water temperature is too high recycling water 2.
  • Page 60 Main board parameter is wrong. Stop the machine and 3.Contrary to transom's movement, and modify main board strike the side parameter. Re-down load configuration 4.Drivers or Motors' problem Change drivers or motors 1.Check equipment's grounding situation, and check grounding line is standard or Modify grounding line to not(resistance to ground should not be reach standard requirement.
  • Page 61 investigate any legal liability. 1) Using the equipment in an environment that it was not designed for.. 2) Altering the machines privately, including, adding parts, reducing parts, dismounting, using another brand's parts, etc. 3) Human damage or doing operations and maintenance without following the requirements in the instructions.
  • Page 62 Warranty of peripheral devices is 1 year, calculated from the production date in the device’s tag. Maintained by device’s manufacturers as standard,Our company assist maintenance. Peripheral devices including water-chillers, fans, air pumps, water pumps etc.(If the machine has them). Accessories repair and shipping cost Within the warranty period: For free repair or replacement of accessories, the buyer should bear the shipping costs from their local place to our company if it needs to...
  • Page 63 and then inform the buyer. After the buyer pays the fees, Bodor company will arrange for the technician to apply for a visa. 2. We will inform the buyer after the technician gets the visa. The buyer should supply the round-trip ticket information mentioned above in item 3, and arrange accommodation from item 4 after the technician arrives.
  • Page 64 80W PARAMETER SETTING Working Max Corner Min Material Thickness Speed Usage Remarks Power(%) Power (%) 10-20 40-70 35-70 Cutting 5-10 70-80 65-80 Cutting Lower than Acrylic the focal 75-80 Cutting Block 0.5mm Lower than 10mm 75-80 Cutting the focal block 1mm Cloth/ Paper 0.5mm 100-400 20-50...
