UNITED UHB-878 Instruction Manual

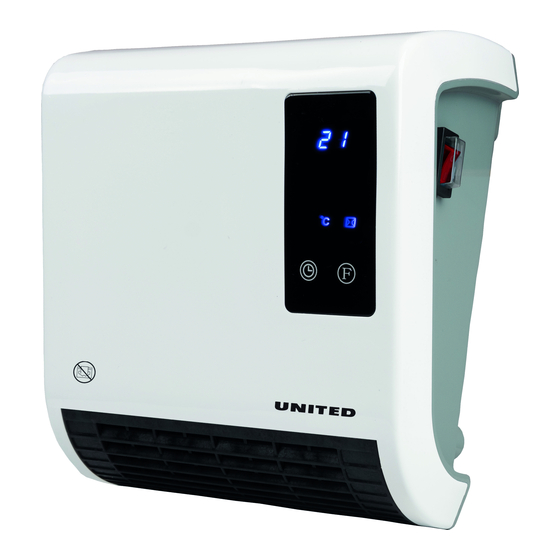

Electric fan heater
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

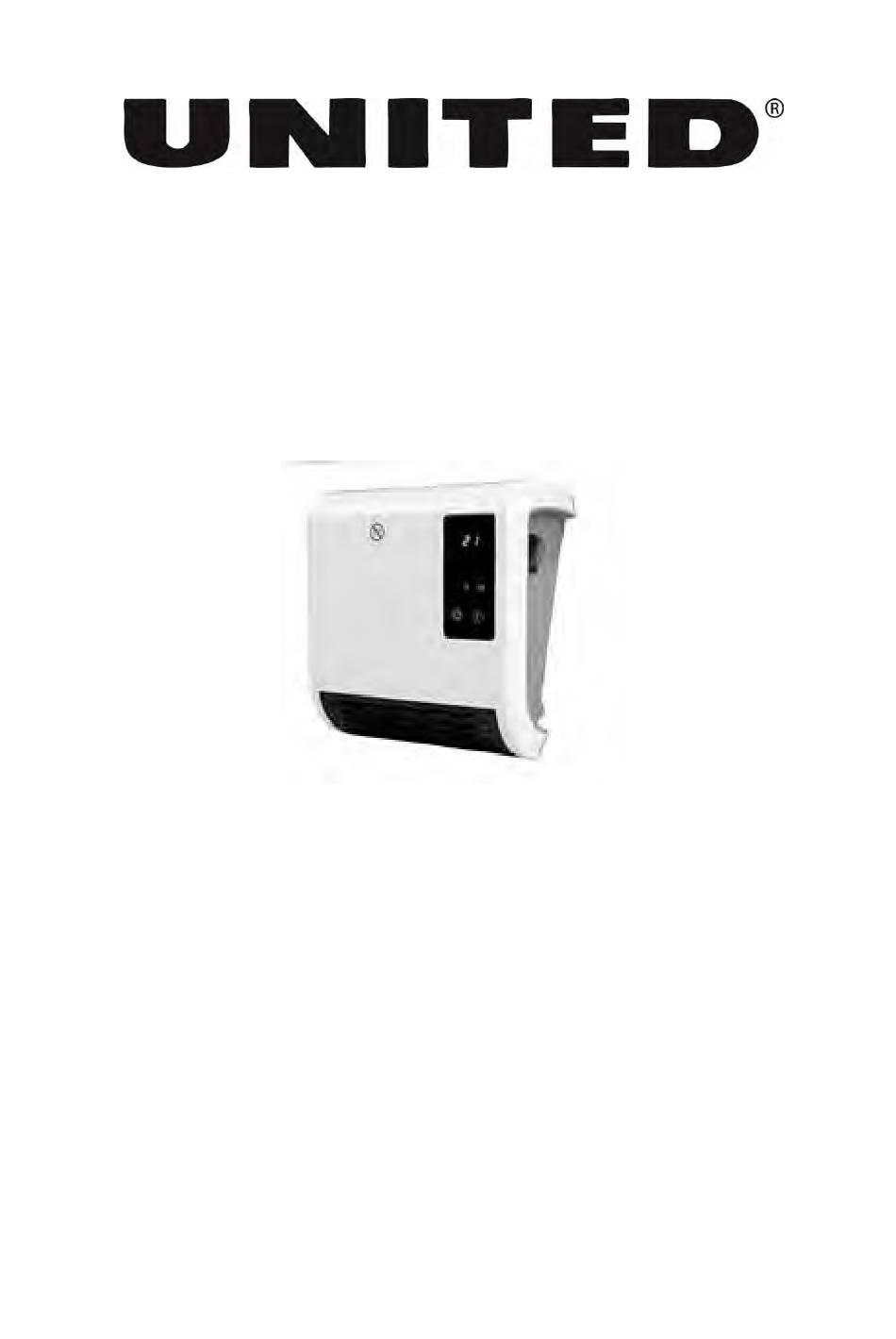

ELECTRIC FAN HEATER
UHB-878
INSTRUCTION MANUAL
This product is only suitable for well insulated spaces or occasional use.
Read these instructions fully before using the heater. Retain these instructions for
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHB-878 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNITED UHB-878

Summary of Contents for UNITED UHB-878

  • Page 1 ELECTRIC FAN HEATER UHB-878 INSTRUCTION MANUAL This product is only suitable for well insulated spaces or occasional use. Read these instructions fully before using the heater. Retain these instructions for future reference.

  • Page 2: For Your Own Safety

    FOR YOUR OWN SAFETY 1) This product is a wall mounting appliance, never use it as portable appliance. 2) Do not use the heater unless the feet are correctly attached if the heater is used as portable appliance. 3) This heater in designed for wall mounting and must be used with the warm air vent facing downwards.

  • Page 3: Installation

    DESCRIPTION 1- Main switch 2- Display 3- Timer 4- Function selector = Timer button 5- Suction grille (back) 6- Outlet grille (bottom) INSTALLATION WALL MOUNTED Drill two holes in the wall with a distance of 1.8m from the ground. The diameter of the hole just contained the inflated plastic pipe.

  • Page 4: Remote Control

    REMOTE CONTROL The remote control requires 1 CR2025 3V lithium battery Important: Follow the instructions of use and the recycle rules given on the battery packaging. 1- Open the battery compartment by sliding the cover down. 2- Insert the battery into the compartment, observing the polarity in the diagram (see below drawing).
  • Page 5 Note: If not setting the temperature and weekly program, the product will automatically turn-off after 12 hours of continuous work, and enter into standby. Function operation (ONLY by remote control) Note: During the operation of the remote control, remote control transmitter must aim at remote control receiving area of product, avoid remote control ineffective.
  • Page 6 Note: When setting temperature, it will use SMART working way: 1)Setting temperature – ambient temperature>2℃, working with high power; 2)0℃<Setting temperature – ambient temperature=<2℃, working with low power; 3)Setting temperature – ambient temperature=0℃, the cool fan will work for 30minutes to below out the heating left inside, then enter into standby mode.
  • Page 7 Note: -After the above setting are completed and P program is working, press “ / / “to check the setting time of each day and time periods - The turn-on time periods 00~24hours, cannot set to minutes -The “TIME/OFF” cannot be less than “TIME/ON”; -When the “TIME/ON”...
  • Page 8 Model identifier(s): UHB-878 Item Symbol Value Unit Item Unit Type of heat input, for electric storage local space heaters only Heat output (select one) Nominal heat Pnom manual heat charge control, with integrated thermostat [no] output Minimum heat manual heat charge control with room and/or outdoor...

  • Page 9: Notice About Recycling

    Low Voltage Directive 14/35/EU ErP Dirctive 09/125/EC RoHS Directive 11/65/EU & Delegating Directive 15/863/EU CE-marking Directive 93/68/EEC The detailed declaration of conformity can be found at www.united-electronics.gr Exclusive importer in Greece: Kalliopi Karyda & Co LP. 87A, 17 Noemvriou str, P.C. 55535 Thessaloniki –...
