Summary of Contents for UNITED MICA UHM-839

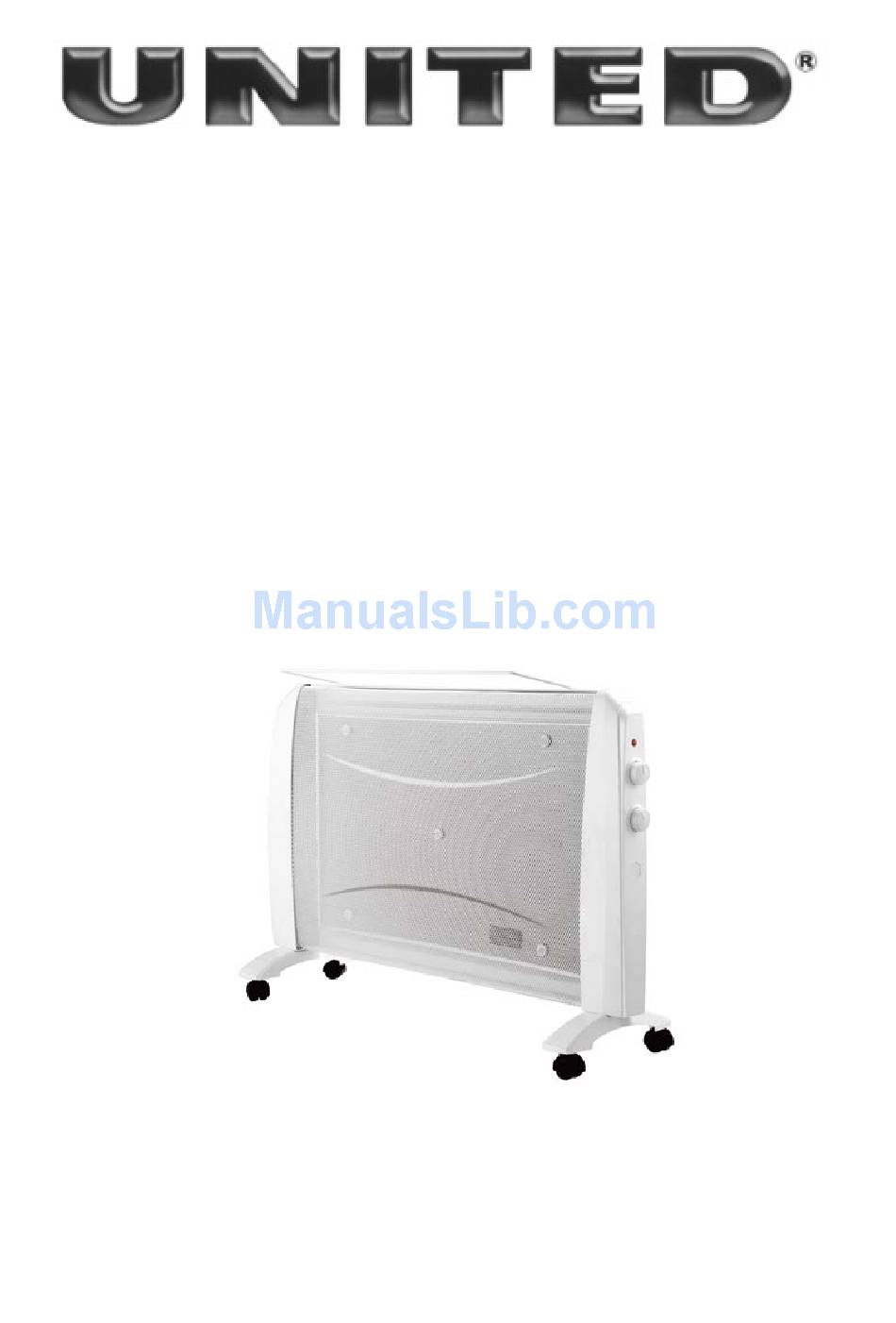

- Page 1 USER’S MANUAL MICA HEATER UHM-839 Please read this instruction manual carefully before operation! Keep in a safe place for future reference.

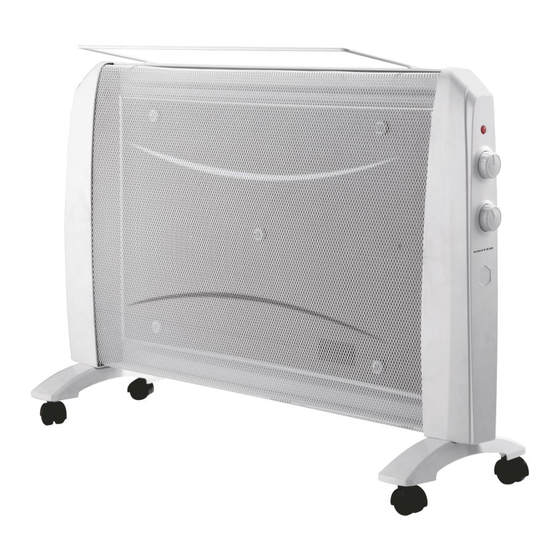

- Page 2 Ⅰ. Product Appearance Ⅱ. Main Technical Date Model Rated Voltage Rated Frequency Rated Power UHM-839 220-240V 50Hz 2000W Ⅲ.Precaution Items For Safe Use 1) Please read the product manual carefully before using the heater. 2) Insert the plug into the socket(requirements for socket and power cord: AC 220-240V, 50/60Hz,≥10A).The heater must not be located below a fixed socket.
- Page 3 9) Do not use the appliance in area where gasoline, paint and flammable liquid are used to stored. 10) Never cover anything on the heater during use. 11) To avoid current overload, do not share the use of a single socket with other appliances.
- Page 4 2.Wall mounting: First, use an electric drill to drill four holes on the wall. Diameter and depth for the drilling holes , you can find the distance between the four holes . Second, insert the plastic bulged screws into the drilling holes, then lat the screws through the hooks and aim them at the holes, fix the hooks on the wall.
- Page 5 OPERATION 1) Room temperature can be adjusted using the thermostat. Simply turn the thermostat knob clockwise, to increase the heater, and anti-clockwise to decrease the temperature, until you reach the desired temperature. 2) Switch the heater to one of the following power settings. Push switch one (I) for 1000W Push switch two (II) for 2000W 3) The power switch lights up when activated.
- Page 6 Low Voltage Directive: 14/ 35 / EU CE Marking: 93 / 68 / EEC RoHS Directive: 11 / 65 / EU The detailed declaration of conformity can be found at www.united-electronics.gr EXCLUSIVE IMPORTER IN GREECE: Amiridis – Savidis S.A. 87A, 17th November Str - P.C. 55534...
