Congatec conga-PITX Series Quick Start Manual page 3

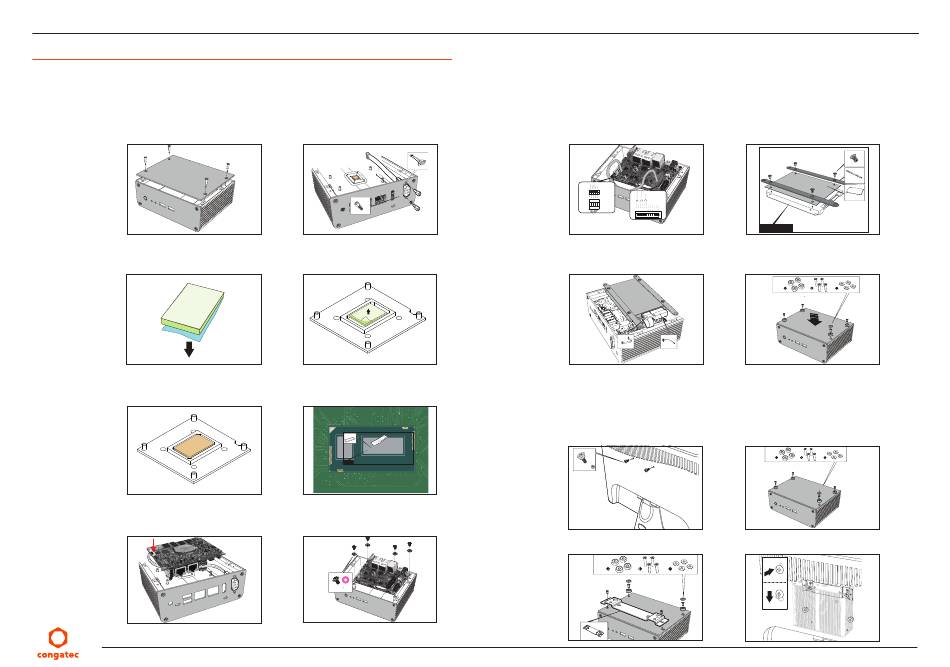

2 Installation
2.1 Assembly
1. Remove the back cover:
3. Remove the blue film from the gap
pad:
5. Place the copper block on the gap
pad (only for PN: 052557):
7. Connect the COM cable to the
board (if required):
Copyright © 2019 congatec AG
2. Mount the COM cable to the chassis
(if required)
⑩
⑬
4. Place the gap pad on the heat sink
and remove the transparent film
6. Apply the CPU thermal compound
(only for PN: 052557):
⑥
CPU
8. Mount the congatec board. Screw
positions are shown below:
⑧
9. Connect LED and USB cables from
front panel to congatec board:
USB2.0 connector
11. Connect SATA cables to HDD and
mount assembly to chasis:
PN: 48000030
2.2 VESA Mounting
1. Attach VESA mounting screw:
⑨
3. Mount the VESA bracket:
⑪
④
conga-PITXq10
10. Secure the HDD protection and the
brackets to the hard drive:
2.5" HDD / SSD
12. Attach the back cover and the case
feet items:
⑪
PN: 14000205
2. Detach case feet items:
⑪
4. Align the chassis:
③
②
①
3/3
