1 Introduction
1.1 Supported Boards
The conga-PITX supports a range of congatec modules as shown in the table below:
Part No - Chassis
052556 - conga-PA5/Chassis PIX-APH1 lidded,
commercial temperature
052557 - conga-PA5/Chassis PIX-APH1 non-lidded,
commercial temperature

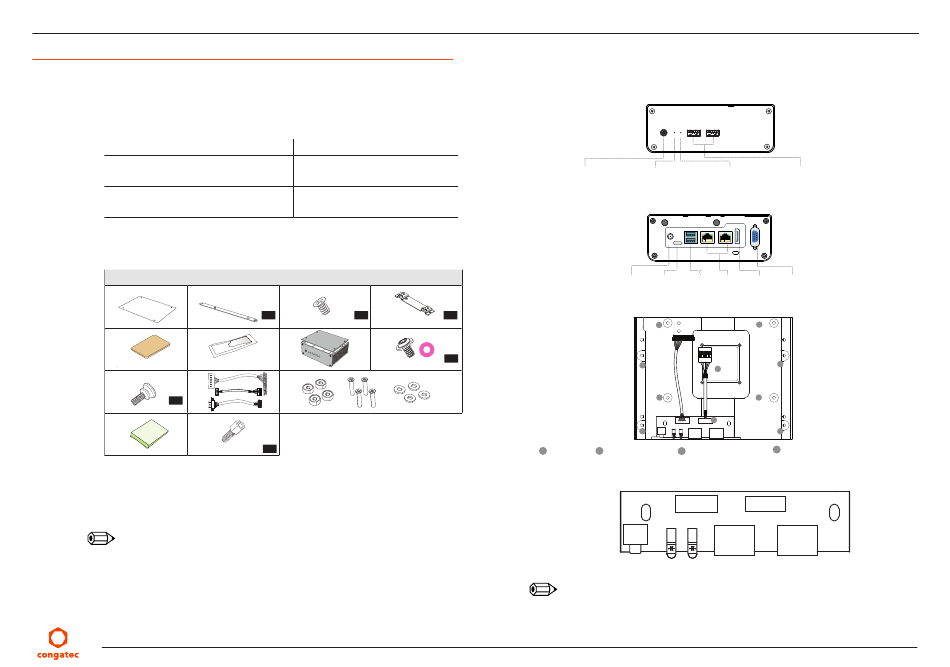

1.2 What is in the Package
① ②
⑤ ⑥
⑨ ⑩
x2
⑫ ⑬
① HDD protective film ② 2.5" HDD/SDD mounting bracket
④ VESA mount bracket
⑦ Chassis Panels with PCB
⑩ Cables (LED, USB, COM)
Note
1. The received product may differ slightly from the illustrations in this guide. While the drawings
may differ, the basic steps described in this guide remains the same.
2. For optimal storage installation, use right-angled SATA cables. To order from congatec AG,
use the following part numbers: 48000030 (SATA data) and 14000205 (SATA power)
3. Apply thermal compound only on variants with non-lidded CPU (PN: 052557)
Copyright © 2019 congatec AG
Part No - Supported Boards
048100 - conga-PA5/E3950-8G
048101 - conga-PA5/E3940-4G
048102 - conga-PA5/E3930-4G
048120 - conga-PA5/N4200-8G
048121 - conga-PA5/N3350-4G
048123 - conga-PA5/N4200-4G
Contents
③ ④
x2 x8
⑦ ⑧
⑪
x2
③ 2.5" HDD/SSD screws
⑤ Copper block (for PN:052557 ) ⑥ Thermal compound
⑧ Motherboard screws and washers ⑨ VESA mounting screw
⑪ Case feet items ⑫ Gap pad ⑬ COM port screw
1.3 Front Panel Layout
Power switch
Hard drive LED
1.4 Back Panel Layout
Power
1.5 Internal Layout
x2
x4
A CPU stack B Front panel PCB
1.6 Internal PCB
2-pin Power
switch
Note
The motherboard may damage if you connect the panel to the wrong headers. Check the
specific module's manual for connection tips.
conga-PITXq10
Power LED USB 2.0 port
USB C USB 3.0 LAN DP++ COM Port
C C
USB
D
D
A
C C
B
D D
D Mounting hole for HDD/SSD bracket
C Mainboard standoffs
LED cable USB cable
PWR & HDD USB 2.0 USB 2.0
connector
LED connector
