Speco O8VLB3 Quick Start Manual

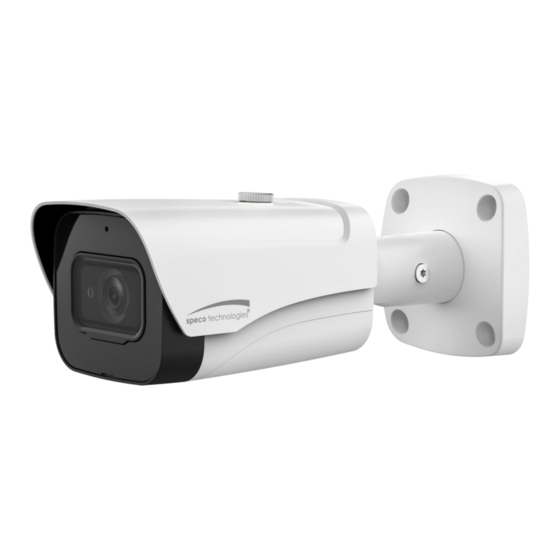

8 mp bullet ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
8 MP Bullet IP Camera
O8VLB3
V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O8VLB3 and is the answer not in the manual?

Questions and answers

Related Manuals for Speco O8VLB3

Summary of Contents for Speco O8VLB3

  • Page 1 Quick Start Guide 8 MP Bullet IP Camera O8VLB3 V 1.0...
  • Page 2 Thank you for purchasing this network camera! Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support. Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to local electrical safety codes.
  • Page 3 Statement This guide is for reference only. Product, manuals and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation.

  • Page 4: Table Of Contents

    Table of Contents Physical Specifications .......................... 1 Components ..........................1 Dimensions ..........................1 Installation ............................2 Install SD Card (Optional) ......................2 Affix Device ..........................2 Adjust Device Angle ........................ 3 IP Scanner .............................. 5 Operation ..........................5 Remote Viewing ............................ 6 Operation ..........................

  • Page 5: Physical Specifications

    1 Physical Specifications 1.1 Components Note  The following figure is for reference only, which is used to know the function of cable port. You can refer to the following figure for cable information. See Figure 1-1. Figure 1-1 Please refer to Table 1-1 for more detailed information. Port name Connector Note...

  • Page 6: Installation

    2 Installation 2.1 Install SD Card (Optional)  Use these steps if using the SD card slot.  Disconnect the power before installing SD card. Step 1 Open the SD card cover and find the SD card slot in the location shown in Figure 2-1. Figure 2-1 Step 2 Take note the direction of SD card and insert it into the card slot.

  • Page 7: Adjust Device Angle

    Step 1 Stick installation position map to designated surface where you will install the device (wall or ceiling). Step 2 Drill out holes according to position marked on installation map. Step 3 Open accessories bag, take out screw anchors and insert them into the holes you just drilled. Step 4 Open accessories bag, and take out the screws.
  • Page 8 Note  Refer to figure 2-4 for positioning and adjustment.  Please be sure to loosen the adjusting screw when adjusting the device position and angle, tighten the adjusting screw after adjustment.  Do not rotate the camera more than 3 rotations to avoid twisting of the internal cable. Figure 2-4 Step 1 Use screwdriver (in accessories bag) to loosen adjusting screw.

  • Page 9: Ip Scanner

    3 IP Scanner IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. The device is set to DHCP mode by default. 3.1 Operation Open up IP Scanner. See Figure 3-1 In the device list, you can view the IP address, model number, and MAC address of each device.

  • Page 10: Remote Viewing

    4 Remote Viewing This device supports viewing and management via a web browser on a PC. 4.1 Operation Open the browser and input network camera address in the address bar or double click the device in IP Scanner. See Figure 4- 1 Input your IP address here Figure 4-1...
