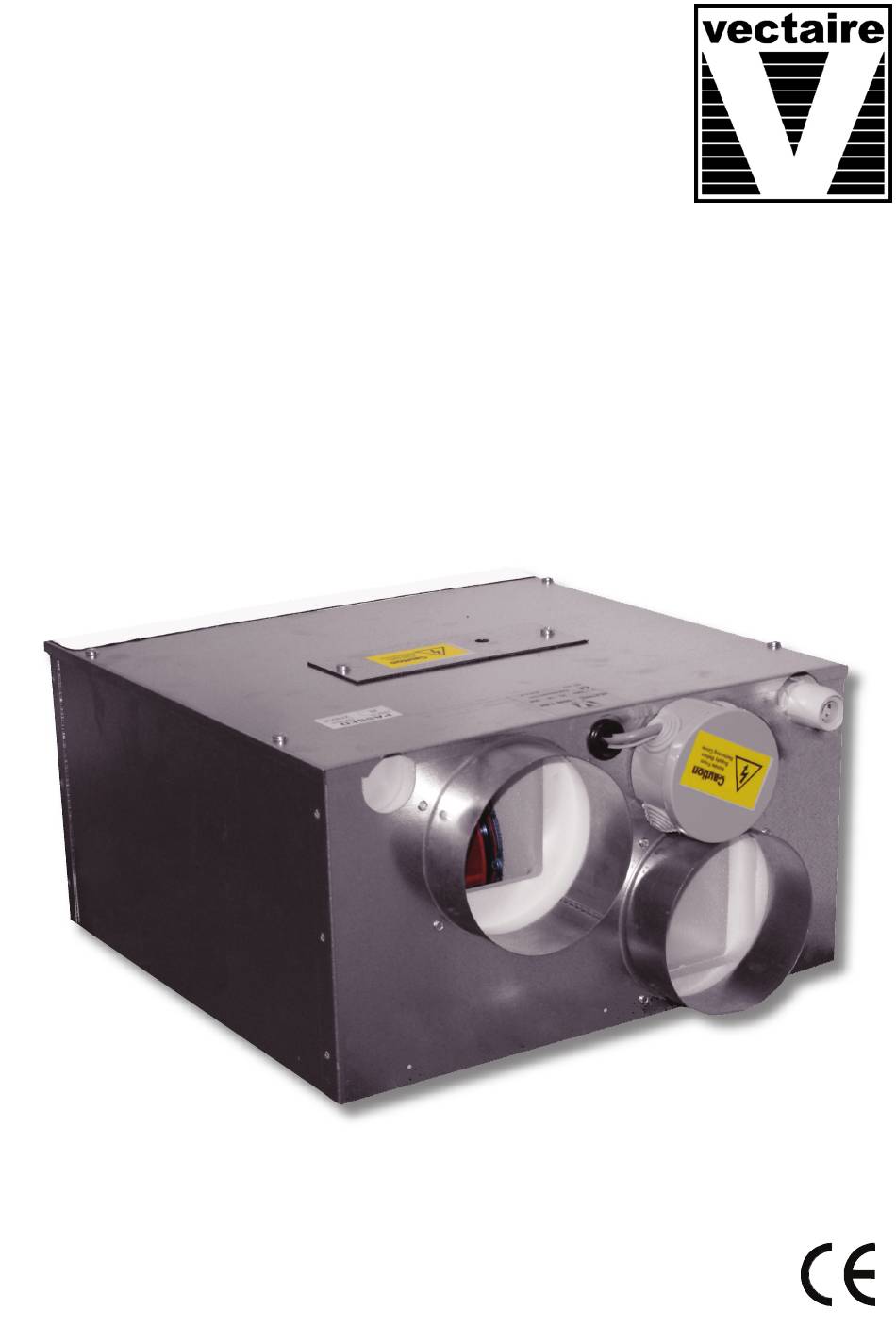

Mini DC
Heat Recovery Unit
with Low Energy DC Motors
Optional - Remote LCD
Installation, Operating and Maintenance
Instructions
Advertisement
Table of Contents
Related Manuals for Vectaire Mini DC
Summary of Contents for Vectaire Mini DC
- Page 1 Mini DC Heat Recovery Unit with Low Energy DC Motors Optional - Remote LCD Installation, Operating and Maintenance Instructions...
- Page 2 It is important to follow the advice in this user manual and correctly install and maintain the system to ensure a healthy and comfortable indoor environment. Mini DC: 5"/125mm spigot, for continuous ventilation equivalent to a kitchen plus up to one additional wet room. Max airflow 120m general Information The Vectaire Mini DC heat recovery system provides mechanical ventilation to bedrooms, and bathrooms.
- Page 3 If there is any damage, please contact your supplier • The Mini DC will normally be fitted into a loft or ceiling void. • In order to comply with Construction (Design & Management) Regulations, sufficient access for safe maintenance (recommended on an annual basis), or removal following installation, MUsT be provided for this product.
- Page 4 Page 4 Installation Installation must be carried out by a suitably qualified person and must comply with all current building regulations and electrical installation regulations. Mounting the unit Before choosing the position for mounting, it is important to take into consideration the ductwork routes and con- densate drain route.
- Page 5 Page 5 Condensate Drainage The unit may sometimes produce condensation which must be drained away. A 15mm dia pipe connection is pro- vided on this unit. 1. A 15mm rigid PVC push-fit pipe must be used for connection to the unit. 2.
- Page 6 Vectaire Technical Department 01494 522333 Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Buckinghamshire, HP12 3RH Tel: +44 (0)1494 522333. Fax: +44 (0)1494 522337. Email: sales@vectaire.co.uk E & O.E...
