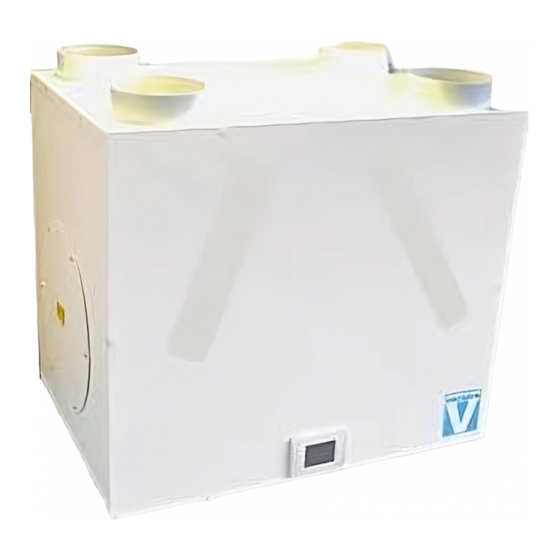

- Page 1 WHHR Maxi & Maxi Plus Residential Whole House Heat Recovery Units with Low Energy EC Motors Optional - Integral LCD Installation, Operating and Maintenance Instructions Image of model with LCD screen...
- Page 2 Vectaire will not be held responsible and will not accept liability for any dam- age caused to persons or property through failure to follow the guidance provided in this manual. It should always be available with the product for easy reference.
- Page 3 Page 3 Installation IT IS IMPORTANT THESE INSTRUCTIONS ARE READ FULLY BEFORE INSTALLATION • This product should not be used for any purpose other than that for which it was designed and as shown in this leaflet • All packaging should be removed and the unit checked for damage in transit.
- Page 4 Page 4 Parts list 1 x Vectaire WHHR Maxi or maxi-Plus unit. 2 x Wall mounting brackets. 1 x Installation, Operation & Maintenance Instructions Any parts shortages or faults must be reported to the supplier immediately. Installation - mounting - Duct and Duct Connections (refer to design drawing) •...
- Page 5 Page 5 7. Condensation • (The unit may sometimes produce condensation which must be drained away. A 21.5/22mm dia pipe outlet is provided on this unit). Note: optional left or right hand drain connectors (21.5/22mm) are fit- ted. A drainage pipe must be connected to the appropriate side, dependent on the positions of the supply and extract ducting.
- Page 6 The heat exchanger within the unit should be cleaned annually. To clean the filters and heat exchanger: The air filters and heat exchanger of the Vectaire WHHR Maxi/Maxi Plus should be cleaned regularly by a suitably qualified person (the frequency of cleaning will vary depending on the installation environment).
