4.
Position the network engine, insert the screws through the holes in the mounting clips, and
carefully tighten the screws.
Important: Do not overtighten the mounting screws. Overtightening the screws may
damage the mounting clips or the network engine housing.
DIN rail mount applications
To mount the network engine on a DIN rail:
1.
Securely mount a 20 cm (8 in.) or longer section of DIN rail horizontally and centered in the
space.
2.
Ensure that the bottom two mounting clips are pulled outward and snapped firmly into the
extended position (Figure 3).

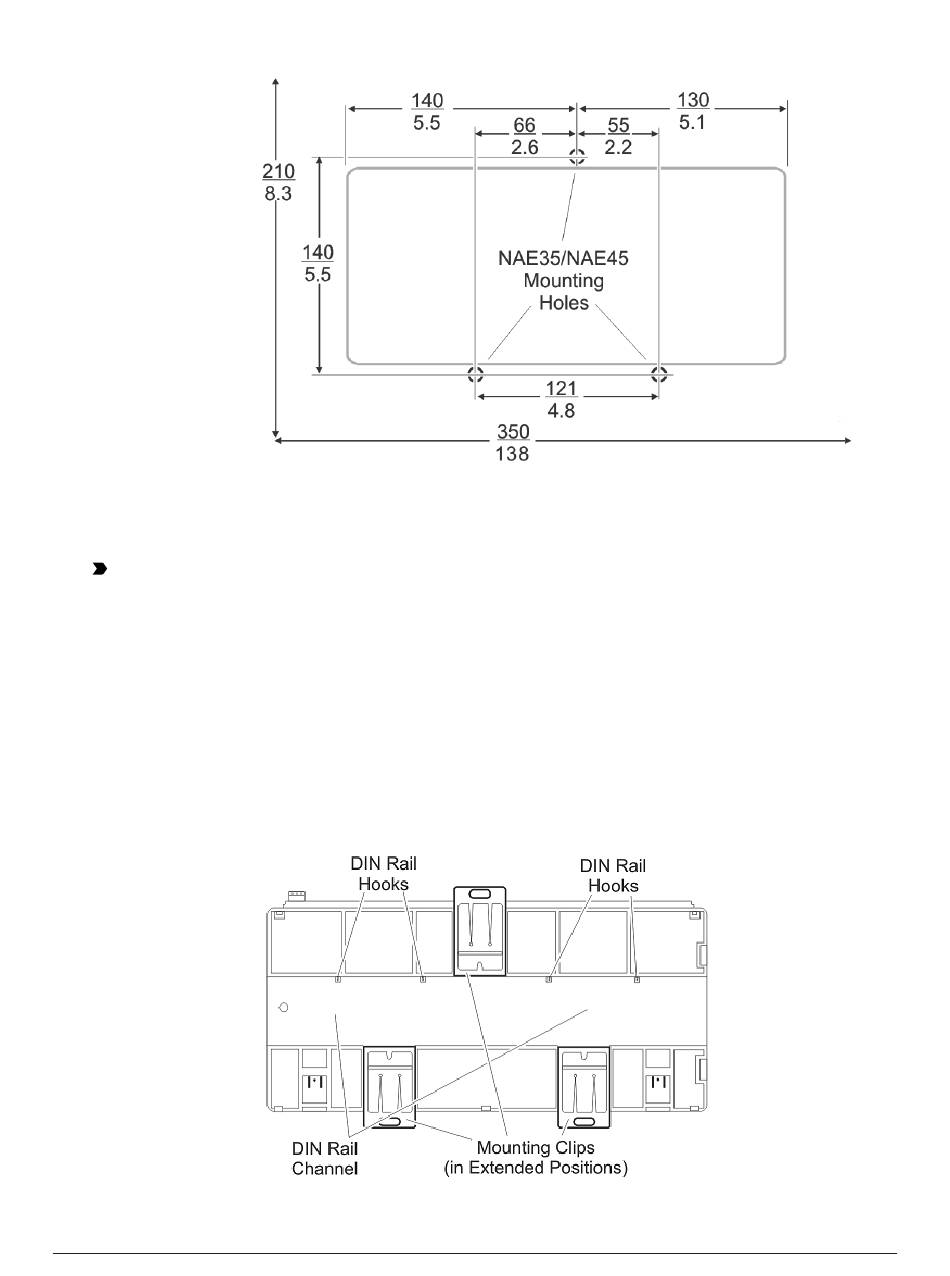

Figure 3: DIN Rail and Mounting Clip Features on the Back of Network Engine
4
NAE35/NAE45 Installation Guide
Figure 2: Network Engine Mounting Screw Hole
Dimensions and Mounting Area Requirements (mm/in.)
