Minco TT519 Manual

2-wire programmable transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2-WIRE PROGRAMMABLE TRANSMITTER TT519

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT519 and is the answer not in the manual?

Questions and answers

Related Manuals for Minco TT519

Summary of Contents for Minco TT519

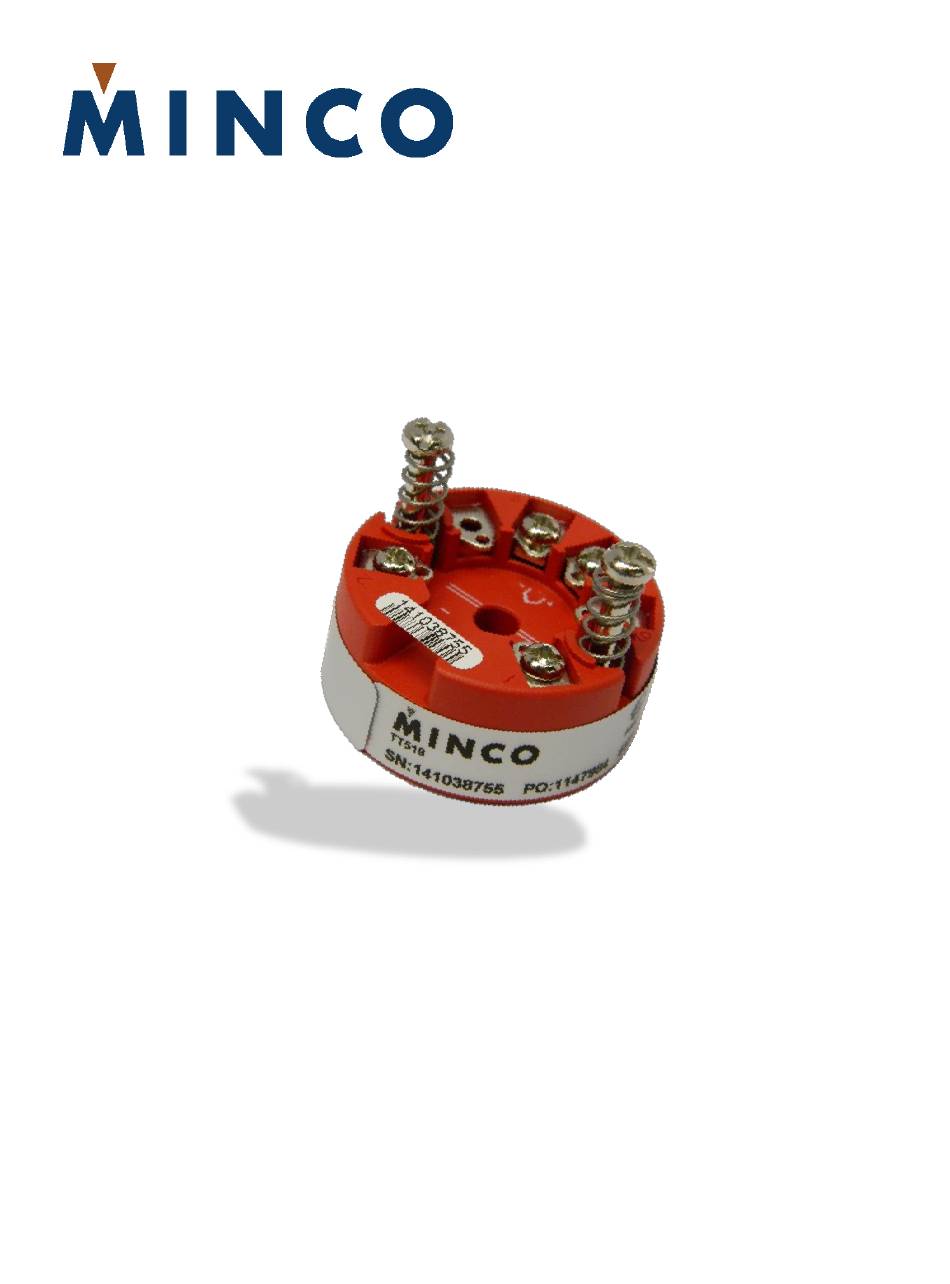

  • Page 1 2-WIRE PROGRAMMABLE TRANSMITTER TT519...

  • Page 2: Table Of Contents

    Mechanical specifications ................. 10 Mounting of sensor wires ................. 10 Appendix ......................11 IECEx Installation Drawing ................11 ATEX Installation Drawing ................13 InNMETRO Instruções de Segurança ............15 Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..1...

  • Page 3: Application

    • Amplification of bipolar mV signals to a 4…20 mA signal, optionally linearized according to a defined linearization function. Technical characteristics • Within a few seconds the user can program the TT519 to measure temperatures within all TC ranges defined by the norms. • Cold junction compensation (CJC) with a built-in temperature sensor.

  • Page 4: Applications

    Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..3...

  • Page 5: Order Tt519

    Signal /noise ratio …………………………………………………. Min. 60 dB Response time (programmable) ……………………………. 1…60 s EEprom error check ………………………………………………. < 3.5 s Signal dynamics, input ………………………………………….. 18 bit Signal dynamics, output ……………………………………….. 16 bit Calibration temperature………………………………………… 20…28°C Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..
  • Page 6 Screw terminal torque …………………………………………….. 0.4 Nm Humidity …………………………………………………………………. < 95% RH (non-cond.) ø Dimensions ……………………………………………………………… 44 x 20.2 mm Protection degree (enclosure / terminal) ………………… IP68 / IP00 Weight ……………………………………………………………………. 50 g Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..5...
  • Page 7 Load stability ………………………………………………….. ±0.01% of span/100 Ω Sensor error detection: Programmable ……………………………………………….. 3.5…23 mA Namur NE43 Upscale ……………………………………… 23 mA Namur NE43 Downscale …………………………………. 3.5 mA Of span = Of the presently selected range Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..
  • Page 8 DNV-GL, Ships & Offshore........Standard for Certification No. 2.4 ATEX 2014/34/EU………………………………………. KEMA 06ATEX0062 X IECEx………………………………………………………….. DEK 13.0035X INMETRO………………………………………………….… DEKRA 16.0013 X CCOE………………………………………………………….. P337392/2 EAC Ex TR-CU 012/2011……………………………… RU C-DK.GB08.V.00410 Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..7...

  • Page 9: Connections

    Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..

  • Page 10: Programming

    • Use Minco AC205817. • For programming please refer to the drawing below. • Loop link is not approved for communication with modules installed in hazardous (Ex) areas. Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..9...

  • Page 11: Mechanical Specifications

    Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..

  • Page 12: Appendix

    Appendix IECEx Installation Drawing For safe installation of the TT519 the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 13 Cable entries and blanking elements shall be used that are suitable for the application and correctly installed. For an ambient temperature ≥ 60ºC, heat resistant cables shall be used with a rating of at least 20 K above the ambient temperature. Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..

  • Page 14: Atex Installation Drawing

    ATEX Installation Drawing For safe installation of the TT519 the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 15 20 K above the ambient temperature The surface temperature of the enclosure is equal to the ambient temperature plus 20 K, for a dust layer with a thickness up to 5 mm. Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..

  • Page 16: Innmetro Instruções De Segurança

    Desenho de Instalação InNMETRO Para instalação segura do TT519 o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
  • Page 17 20K acima da temperatura ambiente. A temperatura da superfície do enclosure é igual à temperatura ambiente mais de 20 K, por uma camada de pó, com uma espessura até 5 mm. Minco Products, Inc. | Tel: 763.571.3121 • www.minco.com • 2612427 (B)..
