Elaflex LeverAssist Quick Start Manual

Hide thumbs
1
2

Advertisement

Table of Contents

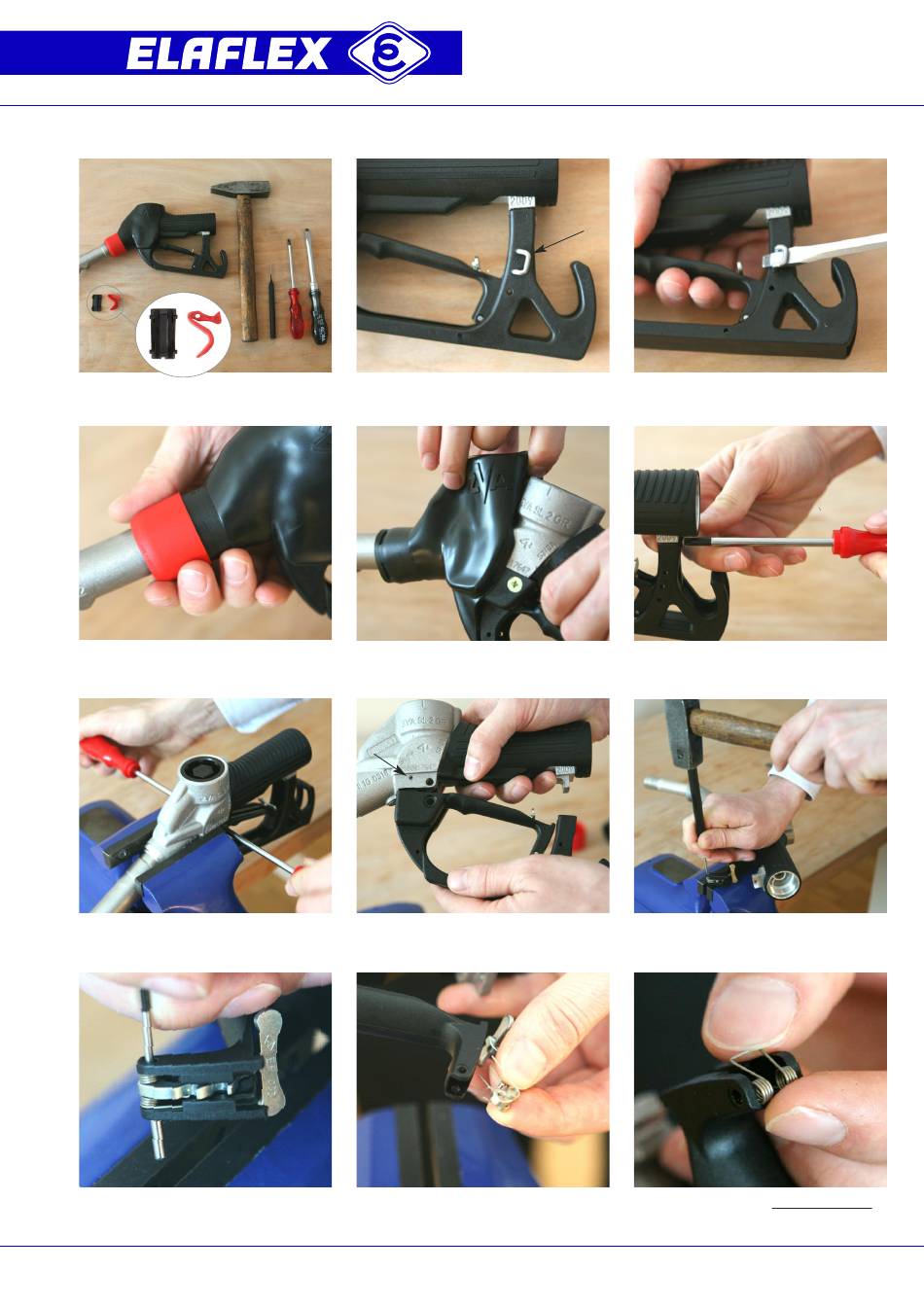

Retrofit LeverAssist
®
®

Change ZVA Slimline 2 / ZVA Slimline 2 GR into LeverAssist

version (see Information 1.10 E ):
EA 003
ZVA Slimline 2 / GR, LeverAssist (EA 003), tools
If latch pin EB 280 is fitted ...
... remove with slot screwdriver.

Remove Product Sleeve or Splashguard.

Unscrew rear guard screws.
Remove scuffguard.
EB 235
Drive out bolt carefully, with the help of a hammer
Unscrew front guard screws.
Remove guard. Pins EB 235 must not fall out.
Re-insert latch spring in shown direction.
... and a mandrel.
Remove hold-open latch and latch spring.
February 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LeverAssist and is the answer not in the manual?

Questions and answers

Related Manuals for Elaflex LeverAssist

Summary of Contents for Elaflex LeverAssist

  • Page 1 Retrofit LeverAssist ® ® Change ZVA Slimline 2 / ZVA Slimline 2 GR into LeverAssist version (see Information 1.10 E ): EA 003 ZVA Slimline 2 / GR, LeverAssist (EA 003), tools If latch pin EB 280 is fitted ...
  • Page 2 This side up ... and push it into the guard as shown. The lever should look like this now. Take supplied 'ramp' for the LeverAssist ... EB 235 Legs of ramp must snap in properly. Control lever pins EB 235. Assemble guard.
