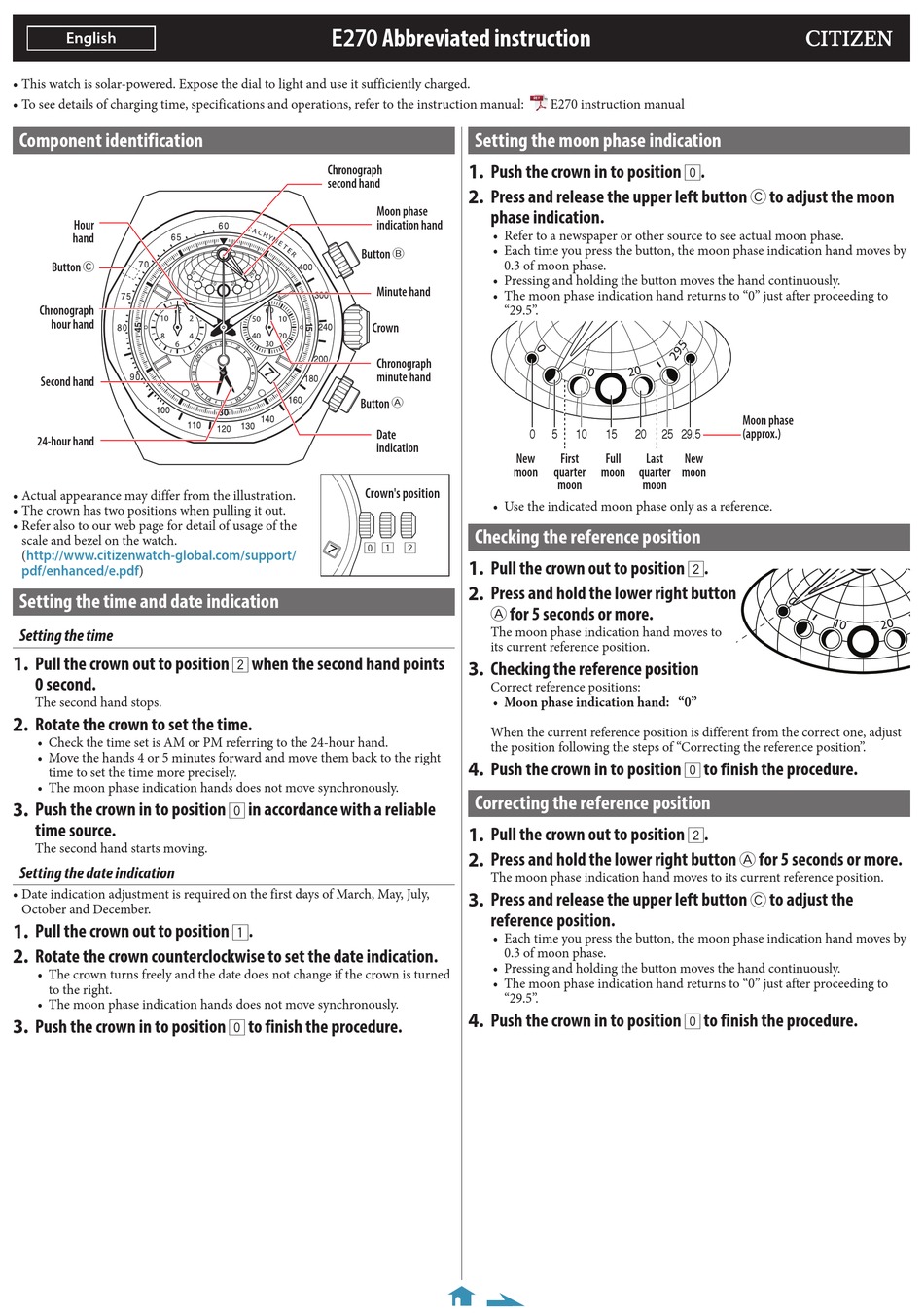

Citizen E270 Abbreviated Instruction

English
• This watch is solar-powered. Expose the dial to light and use it sufficiently charged.
• To see details of charging time, specifications and operations, refer to the instruction manual:
Component identification
Hour
hand
Button
C
Chronograph
hour hand
Second hand
24-hour hand
• Actual appearance may differ from the illustration.
• The crown has two positions when pulling it out.
• Refer also to our web page for detail of usage of the
scale and bezel on the watch.
(http://www.citizenwatch-global.com/support/
pdf/enhanced/e.pdf)
Setting the time and date indication
Setting the time
1.
Pull the crown out to position
0 second.
The second hand stops.
2.
Rotate the crown to set the time.
• Check the time set is AM or PM referring to the 24-hour hand.
• Move the hands 4 or 5 minutes forward and move them back to the right
time to set the time more precisely.
• The moon phase indication hands does not move synchronously.
3.
Push the crown in to position
time source.
The second hand starts moving.
Setting the date indication
• Date indication adjustment is required on the first days of March, May, July,
October and December.
1.
Pull the crown out to position
2.
Rotate the crown counterclockwise to set the date indication.
• The crown turns freely and the date does not change if the crown is turned
to the right.
• The moon phase indication hands does not move synchronously.
3.
Push the crown in to position
E270 Abbreviated instruction
Chronograph
second hand
Moon phase
indication hand
Button
B
Minute hand
Crown
Chronograph
minute hand
Button
A
Date
indication
Crown's position
0 1 2
when the second hand points
2
in accordance with a reliable
0
.
1
to finish the procedure.
0
E270 instruction manual
Setting the moon phase indication
1.
Push the crown in to position
2.
Press and release the upper left button
phase indication.
• Refer to a newspaper or other source to see actual moon phase.
• Each time you press the button, the moon phase indication hand moves by
0.3 of moon phase.
• Pressing and holding the button moves the hand continuously.
• The moon phase indication hand returns to "0" just after proceeding to
"29.5".
0 5 10 15 20
New First Full
moon quarter moon quarter
moon moon
• Use the indicated moon phase only as a reference.
Checking the reference position
1.
Pull the crown out to position
2.
Press and hold the lower right button
for 5 seconds or more.
A
The moon phase indication hand moves to
its current reference position.
3.
Checking the reference position
Correct reference positions:
• Moon phase indication hand: "0"
When the current reference position is different from the correct one, adjust
the position following the steps of "Correcting the reference position".
4.
Push the crown in to position
Correcting the reference position
1.
Pull the crown out to position
2.
Press and hold the lower right button
The moon phase indication hand moves to its current reference position.
3.
Press and release the upper left button
reference position.
• Each time you press the button, the moon phase indication hand moves by
0.3 of moon phase.
• Pressing and holding the button moves the hand continuously.
• The moon phase indication hand returns to "0" just after proceeding to
"29.5".
4.
Push the crown in to position
.
0
to adjust the moon
C
Moon phase
25 29.5
(approx.)
Last New
moon
.
2
to finish the procedure.
0
.
2
for 5 seconds or more.
A
to adjust the
C
to finish the procedure.
0
