Summary of Contents for Resol DeltaSol MiniPool

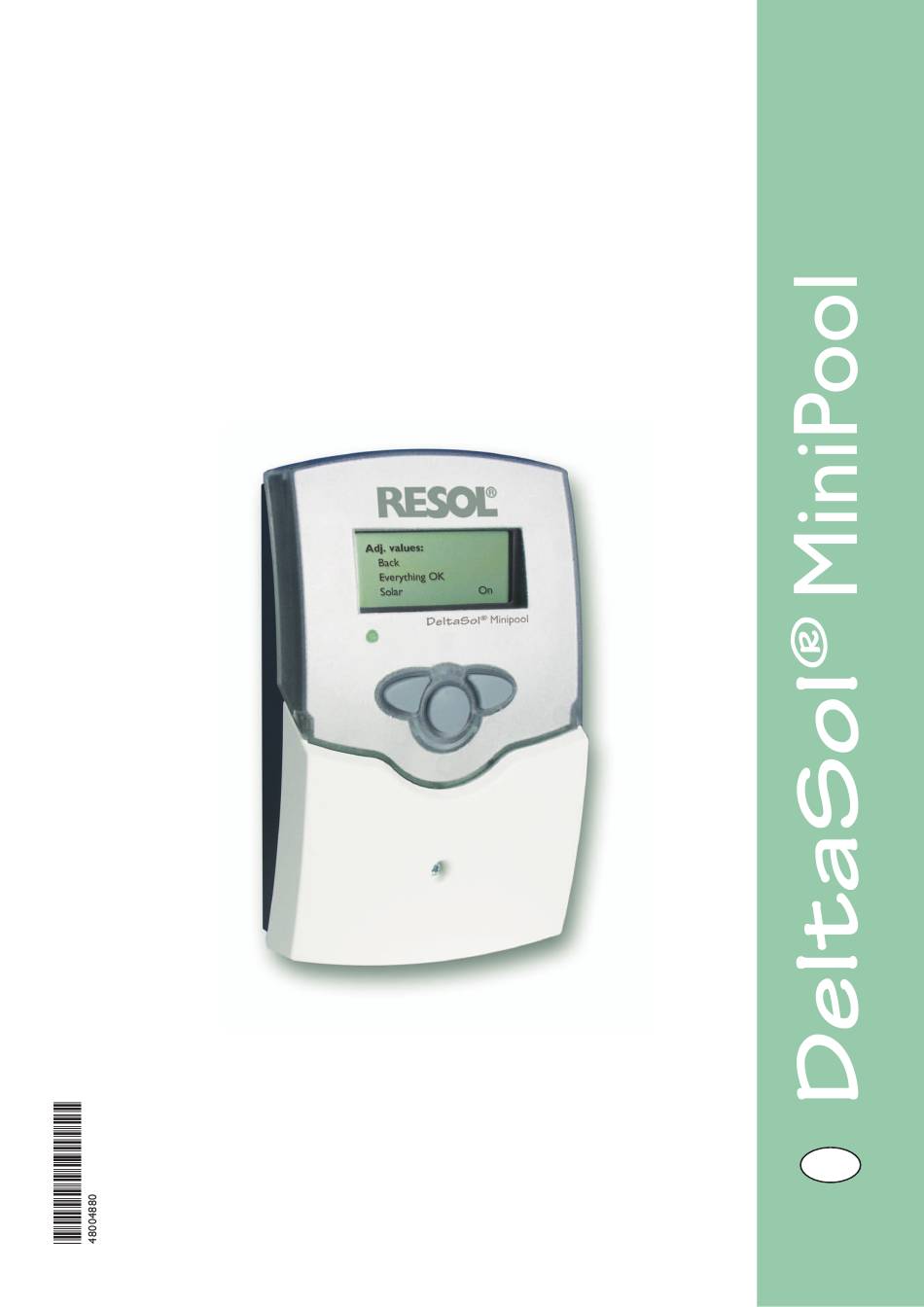

- Page 1 RESOL D e lt a S o l MiniPool ® Mounting Connection Operation Manual Thank you for buying this RESOL product. Please read this manual carefully to get the best performance from this unit. Please keep this manual carefully. www.resol.com...
-
Page 2: Table Of Contents
WARNING! Warnings are indicated with a Proper usage warning triangle! The RESOL D e lt a S o l MiniPool is to be used for heating ® Î They contain information a swimming pool by means of solar collectors and optimised... -
Page 3: Overview
Operation: 3 push buttons at the front Relay outputs: 2 relay outputs Functions: controller for heating a Bus: RESOL VBus ® swimming pool by means of solar ab- Power supply: 220 … 240 V~ sorbers in combination with the opti- Total switching capacity: mised operation of the filter system. -
Page 4: Installation
MiniPool D e lt a S o l ® Installation WARNING! Electric shock! Opening the housing will expose 2.1 Mounting live parts! Î Switch off power supply and dis- connect the device from mains before opening the housing! display The unit must only be located in dry interior rooms. It is not suitable for installation in hazardous locations and should be protected against electromagnetic fields. -
Page 5: Electrical Connection
2 (1) A ( 220 ... 24 0) V ~ 2.2.2 Data communication / Bus Pt1000 VBus The controller is equipped with the RESOL VBus for data ® 9 10 transfer with and energy supply to external modules. The connection is carried out at the two terminals marked “VBus”... -
Page 6: Basic System
MiniPool D e lt a S o l ® 3. Basic system Sensor allocation Sensor abbreviations Sensor Description Tabsorber Tpool Tflow T - freely selectable Tabsorber Absorber temperature Tpool Pool temperature Tflow Flow temperature freely selectable; with WMZ Treturn Relay allocation Treturn Return temperature 3-way valve V1... -
Page 7: Operation And Function
MiniPool D e lt a S o l ® Operation and function Push buttons The controller is operated via the three push buttons be- low the display. The forward-button (1) is used for scrolling forward through the menu or to increase the adjustment values. -
Page 8: Status Display
MiniPool D e lt a S o l ® 5. Status display In the status display, the operating status of the system is indicated: Solar loading is active Solar: on: Solar loading is inactive Solar: off: Cooling is active, pool temperature is dis- Cooling: played Filter pump is active;... -
Page 9: Menu Structure
MiniPool D e lt a S o l ® 6. Menu structure Display values The following values are displayed: Display Description Display Description Time Absorber temperature in °C TAbsorber time Pool temperature in °C Present-day runtime of the filter Filter runtime Tpool pump Flow temperature in °C... -
Page 10: Functions And Options
MiniPool D e lt a S o l ® 7. Functions and options Switch-on difference Adjustment of the switch-on difference (TAbsorber - TPool) Adjustments/DTon for the solar circuit in Kelvin. Adjustment range: 0.2 ... 25.0 K Factory setting: 2.5 K Switch-off difference Adjustment of the switch-off difference (TFlow - TPool) for Adjustments/DToff... - Page 11 MiniPool D e lt a S o l ® Circulation function If the solar system has not been active for the period of one hour, it will be switched on for 1 ... 10 minutes (Flushing the Adjustments/circulation pipes with pool water in order to measure the pool tem- Selection: “Yes”, “No”...
-
Page 12: Error Indication
MiniPool D e lt a S o l ® Pool cooling function If the maximum pool temperature is exceeded by a certain value (DTcool), this function cools the pool by discharging Adjustments/poolcooling heat through the absorber. This is only possible if the ab- Selection: “Yes”, “No”... -
Page 13: Balance Values
9. Troubleshooting If a malfunction occurs, a message is displayed in the display can fuse T1,25A of the controller: DeltaSol Minipool T1,25A 220 ... 240 V~ Te mp . Sensor 2 (1) A ( 220 ... 24 0) V ~... -
Page 14: Accessories
The controller data can be read out for visualising and mo- nitoring the system state. The light version of the software is availabe for free download at www.resol.com. The full version additionally allows easy configuration of the control parameters with a PC. - Page 15 MiniPool D e lt a S o l ® Notes...
-
Page 16: Imprint
Another use outside the copyright requires manual and to the best of our knowledge and consent. As the approval of RESOL - Elektronische Regelungen GmbH. faults can never be excluded, please note: Your own calcu- This especially applies for copies, translations, microfilms lations and plans, under consideration of the current stan- and the storage into electronic systems.
