- Page 1 RIDER-M User Guide...
- Page 3 Guilin Zhishen Information Technology Co., Ltd.
-
Page 5: Table Of Contents
Contents Packing List ···················································································· 1 ■ Disclaimer and Warning ·································································· 2 ■ ■ Quick Start Guide ··········································································· 7 Camera Mounting ··········································································· 8 ■ ■ How to Start Up ·············································································· 9 Preparing and Charging the Batteries ············································· 10 ■ Introducing Gimbal Control Modes ················································· 11 ■... -
Page 6: Packing List
Packing List The product package comes with the following items. In case that any item is found missing, please contact ZHIYUN or your local selling agent. RIDER-M 3-Axis Video Output & Gimbal Stabilizer Charging Cable (4-pin) for GoPro Camera Protection... -
Page 7: Disclaimer And Warning
Disclaimer and Warning Thank you for using ZHIYUN RIDER-M. The information contains herein affects your safety and your legal rights and responsibilities. Read this entire document carefully to ensure proper configuration before use. Failure to read and follow the instructions and warnings herein may result in serious injury to you or bystanders, or damage to your device or property. - Page 8 2)Make sure the rotation of the gimbal axes is not blocked by external force when RIDER-M is turned on. 3)RIDER-M is not waterproof. Prevent contacts of any kind of liquid or cleaner with RIDER-M. It is recommended to use dry cloth for cleaning.
- Page 9 15. If the battery terminal is dirty, wipe it with a clean, dry cloth. Otherwise it will cause a bad battery connection, which may result in energy loss or charging failure. Battery Charging 1. Do not attach the batteries to a wall outlet or car charger socket directly. Always use a ZHIYUN approved zhiyun-tech.com...
- Page 10 Disclaimer and Warning adapter for charging. ZHIYUN takes no responsibility if the battery is charged using a non-ZHIYUN charger. 2. Do not put the battery and charger near flammable materials or on flammable surfaces (such as carpet or wood). Never leave the battery unattended during charging to prevent any accident.
- Page 11 If the battery cannot be fully discharged, do not leave it in the recycling box, but contact a professional battery disposal/recycling agent for further assistance. This document is subject to change. ZHIYUN is a trademark of ZHISHEN TECH. Copyright © 2017-2018 ZHISHEN TECH. All rights reserved.
-
Page 12: Quick Start Guide

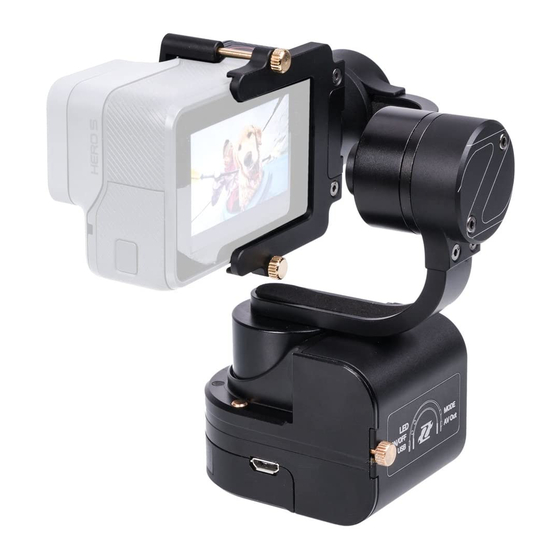

Quick Start Guide Get to Know RIDER-M Zhiyun-Tech Rider-M is a mini 3-axis gimbal stabilizer for GoPro and other action cameras. Highly compact and featuring a 1/4"-20 threaded mounting hole on the bottom, the Rider-M can be conveniently mounted on various support accessories, such as suction cups. -
Page 13: Camera Mounting
Rotate the Thumb Screws to tighten up the camera mounting bracket. Connect the stabilizer with the camera using the Camera Charging Cable/Video Output & Charging Cable according to actual operation need. NOTICE: Do not power on the stabilizer before the camera is properly mounted. zhiyun-tech.com... -
Page 14: How To Start Up
Battery Cover. Install two 18350 batteries and slide back the Battery Cover. Tighten up the Thumb Screw. Long press Power Button for 3 sec. to power on. Long press again to power off. NOTICE: Do not power on the stabilizer before the camera is properly mounted. MODE zhiyun-tech.com... -
Page 15: Preparing And Charging The Batteries
Preparing and Charging the Batteries Before using RIDER-M for the first time, please fully charge the batteries to activate and ensure normal operation by using the charger that comes in the package. Name: Li-ion battery charger Model: ZY-CH002 Input: DC 5V 800mA Output: DC 4.2V 400mAx2... -
Page 16: Introducing Gimbal Control Modes
Locking Mode:This mode locks movement of all three axes to keep the camera still and stable. Tilt Axis Pan Axis Roll Axis Following Mode: The camera pans and tilts following the movement of the stabilizer. Tilt Axis Pan Axis zhiyun-tech.com... -
Page 17: Connection Ports & Various Operations
② C onnectthestabilizertoaspecializedwiredremotecommander. NOTICE: This port cannot be used for charging. Battery Level Indicator Indicator Status Battery Level Quick flash 4 times 75%-100% Quick flash 3 times 50%-75% Quick flash 2 times 25%-50% Quick flash 1 times 1%-25% zhiyun-tech.com... -
Page 18: Device Pairing & App Operations
2)Connect the stabilizer with a display screen using a 3.5mm Video Output Cable (purchase separately). Video Output & Camera Charging Cable Charging Cable Firmware Upgrade 1. Visit ZHIYUN's official website: www.ZHIYUN- TECH.com. 2. Click to open the "Downloads" page, and find the Firmware Upgrade Tutorial package. 3. Download the driver, calibration tool and latest firmware corresponding to your stabilizer. -
Page 19: App Download And Installation
The ZHIYUN APP is subject to regular update, try out now to discover more functions. 1.Power on the stabilizer. 2.Activate Bluetooth on your smartphone. 3. Tap ZHIYUN's APP icon to open.Tap the signal icon on top of the monitroing screen, search for nearby signals, and choose your stabilizer to connect. zhiyun-tech.com... - Page 20 Calibration is required when deviations are found in Allows adjustment of various parameter settings of the 3 axes and the leveling of the camera. Tap "Start the stabilizer (Refer to APP instructions for specific Calibration", and complete the 6-side calibration operations.) procedure following onscreen illustrations. zhiyun-tech.com...
-
Page 21: Usage Of Main Accessories
Bluetooth pairing with the smartphone using “ZY Play” ). Power Button + MODE Button: Press the MODE Button simultaneously when powering up to operate quick pairing with the nearest stabilizer. Joystick: Controls camera movement . Shifter Lever: Allows focusing control of the camera. zhiyun-tech.com... - Page 22 Emission and received current: 11.9mA 0%-30%: quick flashing. Operating current: 4.2mA Charging Indicator Effective control distance: 10m /394 inch ● Charging: RED light. (without blockage) ● Charging complete: GREEN light. Bluetooth Indicator No connection: Continuous flashing. Connected: Shines solid light. 78.5mm zhiyun-tech.com...
-
Page 23: Off-Line Calibration
② P ushtheJoystickup(orpresstheUPbutton) for one 1 sec. until the stabilizer’s Battery Level Indicator shines solid light. ③ P ushtheJoystickdown(orpresstheDOWN button) for one 1 sec. until the Indicator starts flashing (once each second). Now, it is ready for calibration. zhiyun-tech.com... - Page 24 Tilt Axis Motor surface with the Mobile Clamp facing down, until the Indicator facing down, until the Indicator facing backward, until the starts flashing 5 times each starts flashing 6 times each Indicator shines solid light. second. second. Calibration complete! zhiyun-tech.com...
-
Page 25: Product Specifications
270° Pan Angle Range 640° Gimbal in Vertical 50° /S Tilt Axis Following Speed 1° /S Pan Axis Following 80° /S 1° /S Speed 45° C Battery Runtime -10° C 25° C Operation Temperature 3.5h 4.5h 5.5h Weight 180g zhiyun-tech.com... -
Page 26: Warranty Card
15 days upon receipt of the product. 2. Customers are entitled to free repair service from ZHIYUN for any product proven defective in material or workmanship that results in product failure during normal consumer usage and conditions within the valid warranty period, which is 12 months counting from the date of delivery. - Page 27 Contact No : Address : Sales Information Sales Date : Prod. Serial No : Dealer Contact No : #1 Maintenance Record Service Date : Signature of Repairman : Cause of Problem : Service Result : □ Solved □ Unsolved □ Refunded(Replaced) zhiyun-tech.com...
-
Page 28: Contact Card
Contact Card Website Weibo Vimeo Google+ Facebook Wechat Youku Youtube Tel: +86-773-2320856 Web: www.zhiyun-tech.com E-mail: service@zhiyun-tech.com Address: Creative Industrial Park,GuiMo Road,QiXing District,Guilin 541004,Guangxi,China. zhiyun-tech.com... - Page 29 This product is confirmed to meet quality standards and permitted for sale after strict inspection. QC Inspector: Please download the latest version from www.zhiyun-tech.com This document is subject to change. ZHIYUN™ is a trademark of ZHISHEN. Copyright © 2017-2018 ZHISHEN. All rights reserved.
- Page 30 V2.00...
