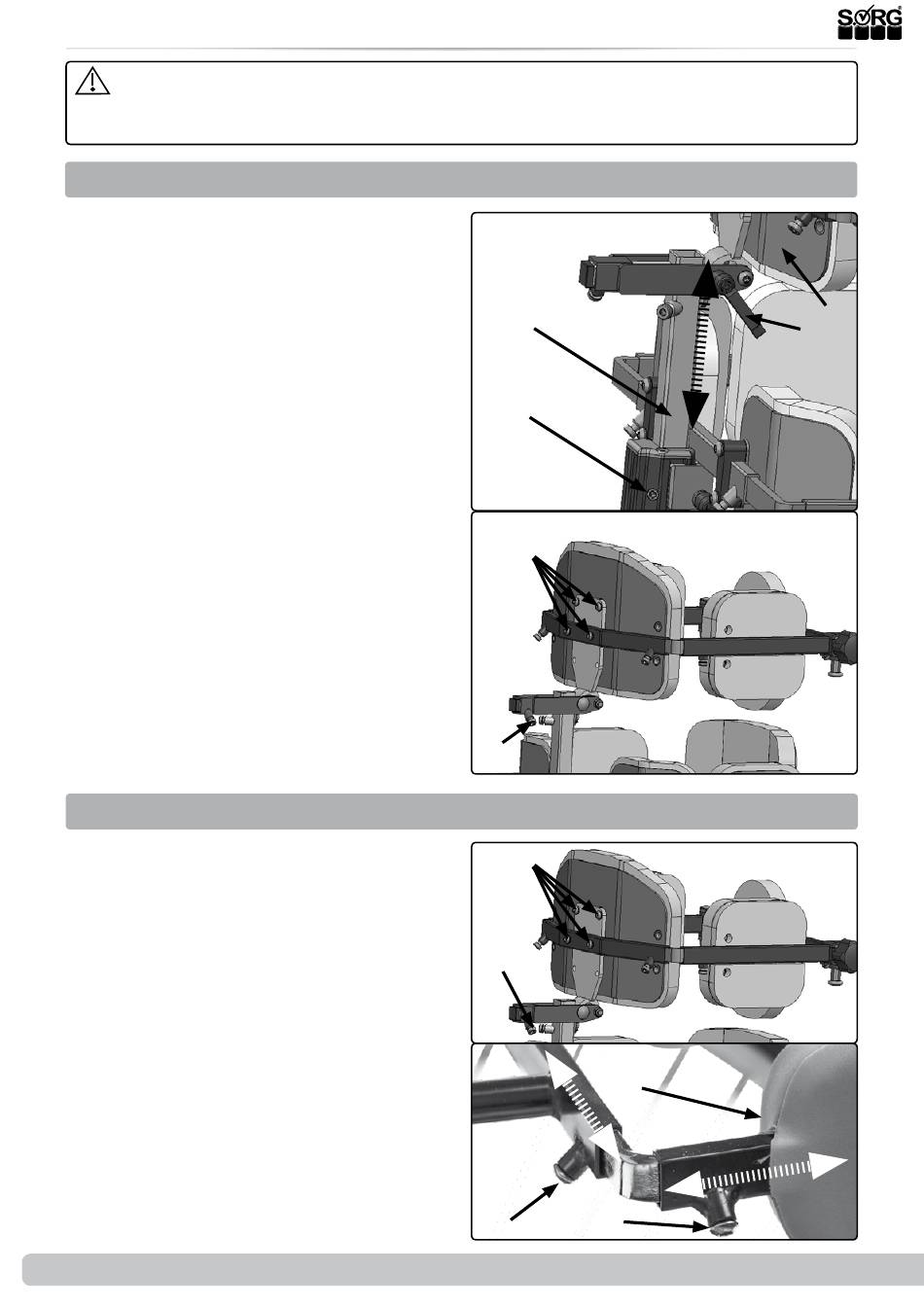

3.7 Assembly Group Pelvis truss pad

Before using the standing aid for the first time, the breast pelottes must be largely adjus-
ted to the individual measurements of the user. If the user stands in the standing aid, only fine
adjustments may be made.

3.7.1 Pelvis truss pad

(1) To adjust the height:
• Loosen the threaded pin (A),
• telescope the entire support of the
chest pad (B) into the desired position
and
• Turn the threaded pin (A) tight again.
(2) and / or:
• Remove both screws (B),
• move the chest pad into the alternative
holes and
• retighten the screws (B).
(2) To adjust the depth:
Loosen the screw (A),
push the chest pad into the desired position
and tighten the screw (A) again.
(1) To adjust the inclination:
Release the clamping lever (C),
bring the chest pad (D) to the desired angle
and
retighten the clamping lever (C).

3.7.2 Side pelvis truss pad

(3) To adjust the height:
• Remove the screws (B),
• place the holder of the lateral chest
pads in the alternative holes and
• retighten the screws (B).
(4) To adjust the width:
• Loosen the setscrews (A) on both sides,
• Bring the side chest pads (B) to the
desired distance and
• tighten the set screws (A) again
18 of 28
(1)
(B)
(A)
(2)
(B)
(A)
(3) (B)
(A)
(4)
(A)
Service Record Boogie Fix and Swing
(B)
(C)
(D)
(C)
2019-08-12
