3.

Installation

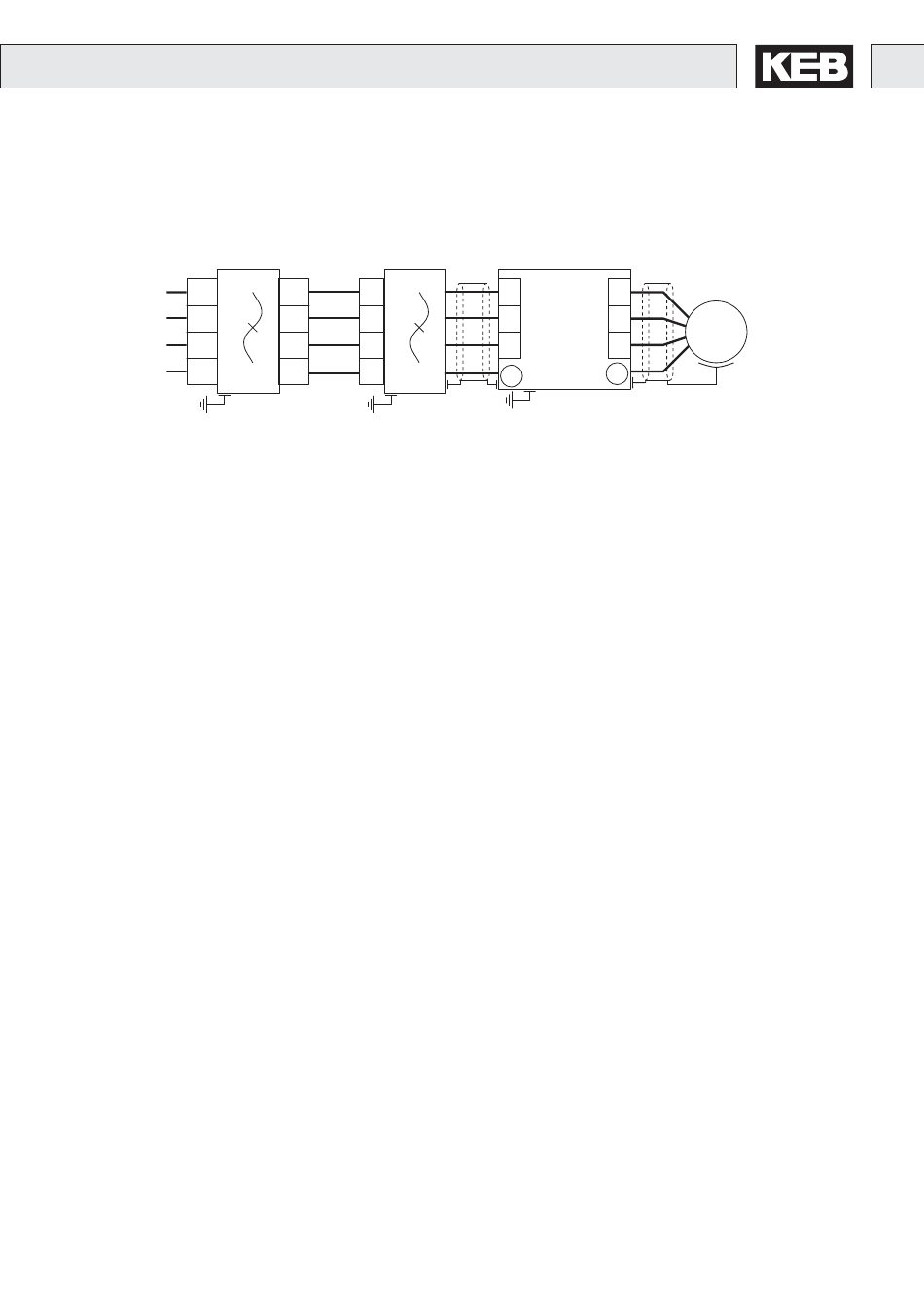

3.1 Connection

KEB
Harmonic Filter
L1
L1.1
L2
L2.1
L3.1
L3
PE
PE

3.2 Installation Instructions

KEB
COMBILINE
HF-Filter
L1.2 L1
L2.2 L2
L3.2 L3
PE
PE
The KEB harmonic filter is to be used only as built-in unit. During installation pay
attention to the following:
- The distance to adjacent modules may not fall below 150 mm.
- A distance of 150 mm must be observed above and below the filter.
- Sufficient countermeasures must be taken against impurities of any kind.
- The permissible ambient temperatures may not be exceeded.
The installation of the filter can be made in standing or lying position. The
arrangement of the capacitors is below or beside the choke. In order to avoid
damage or destruction of the capacitors by overheat of the choke the capacitors
may not be arranged above the choke!
U
L1
V
L2
KEB
COMBIVERT
W
L3
PE
PE
M
3~
GB - 11
