- Page 1 Hardware Manual IXXAT CME/PN CANopen-PROFINET Gateway...
- Page 2 Fax: +49 751 56146-29 Internet: www.ixxat.de E-Mail: info@ixxat.de Support In case of unsolvable problems with this product or other IXXAT products please contact IXXAT in written form: Fax: +49 751 56146-29 E-Mail: support@ixxat.de Further international support contacts can be found on our webpage www.ixxat.com...
-
Page 3: Table Of Contents
4.2 Returning hardware .............. 13 4.3 FCC-Konformität ..............13 4.4 Disposing of old equipment ..........13 4.5 Information on EMC .............. 14 4.6 Technical data ............... 15 4.7 EC Declaration of Conformity ..........16 Copyright IXXAT Automation GmbH IXXAT CME/PN Manual, Version 1.0... -
Page 5: Introduction

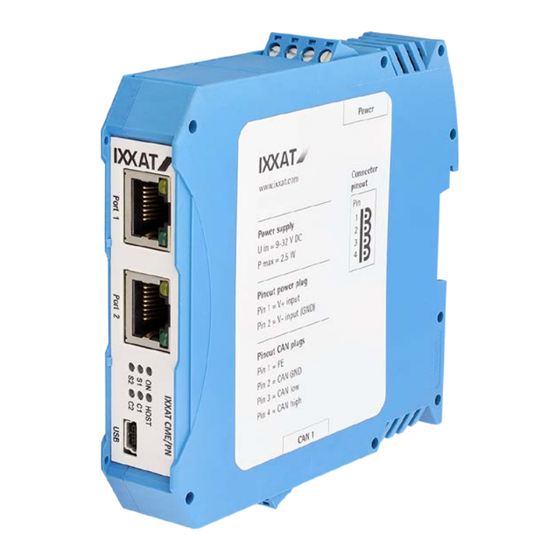

Introduction 1 Introduction Overview In the CANopen-PROFINET Gateway IXXAT CME/PN , you have purchased a high-quality electronic component that has been developed and manufactured according to the latest technological state of the art. Features Input voltage range 9 - 32 V DC ... -
Page 6: Installation
Installation 2 Installation Software installation The software you will need to operate the IXXAT CME/PN is listed in the man- ual: CANopen Configuration Studio for IXXAT CME/PN Hardware installation No special hardware installation is needed to operate the IXXAT CME/PN. On- ly connections to a power source, to Ethernet, and to CAN need to be estab- lished. -
Page 7: Connections And Displays
Connections and displays on the IXXAT CME/PN 3.1.1 Power plug A screw terminal is used to connect the IXXAT CME/PN to a power supply. For the cabling, it is important for the cables to have a sufficient cross section (>0.14mm ). -
Page 8: Ethernet Connectors
The IXXAT CME/PN has a CAN bus connection compliant with ISO11898-2. The CAN connection is galvanically isolated from the main electronics. A screw terminal is needed to connect the IXXAT CME/PN to the CAN bus. The pinout of the screw terminal is shown in Table 3-3. -
Page 9: Displays
Table 3-3: Pinout of the CAN connector Displays The IXXAT CME/PN has six LEDs. These LEDs are used to display the com- munication status of the associated interfaces and/or to display the device sta- tus. The RJ45 connectors also each have two LEDs that display the link status of the corresponding Ethernet port. -
Page 10: Power Led (On)
Mode Status No fault green blinking Module identification Module fault status Color Mode Status Connection (AR) established to the controller green PROFINET protocol not initialized No connection (AR) to the controller Copyright IXXAT Automation GmbH IXXAT CME/PN-Manual, Version 1.0... -
Page 11: Host Status Led (Host)
The green CAN RUN LED is used to indicate the status of CANopen commu- nication. • C1 Color Mode Status Gateway software is not running, initializa- tion Fatal Error if HOST LED red flickering green blinking PRE-OPERATIONAL green single flash STOPPED green OPERATIONAL Copyright IXXAT Automation GmbH IXXAT CME/PN-Manual, Version 1.0... -
Page 12: Can Error Led (C2)
Connection available to the network; no net- work activity green flashing Ethernet communication is taking place Speed Color Mode Status yellow 10Mb/s operation yellow 100Mb/s operation (with active Link/Activity LED only) Copyright IXXAT Automation GmbH IXXAT CME/PN-Manual, Version 1.0... -
Page 13: Appendix
3 Electrical and Electronic Equipment act in the version of 16.03.2005 is regulated separately in the General Terms and Conditions and its supple- ments of IXXAT. The terms and conditions, its supplements and other infor- mation on disposal of old equipment can be downloaded at www.ixxat.de. -
Page 14: Information On Emc
Appendix Die Allgemeinen Geschäftsbedingungen und deren Ergänzungen sowie weite- re Hinweise zur Entsorgung von Altgeräten können unter www.ixxat.de herun- ter geladen werden. Information on EMC The product is a class A device. If the product is used in office or home envi- ronment radio interference can occur under certain conditions. -
Page 15: Technical Data
CAN interface as defined in ISO11898-2 (Highspeed CAN) Galvanic isolation: 500 V AC for 1 min CAN-Transceiver: Texas Instruments SN65HVD251 Max. number of CAN bus nodes: CAN bus terminating resistor: None Copyright IXXAT Automation GmbH IXXAT CME/PN-Manual, Version 1.0... -
Page 16: Ec Declaration Of Conformity
Appendix EC Declaration of Conformity IXXAT Automation declares, that the product: IXXAT CME/PN With the article numbers: 1.01.0261.00100 1.01.0261.00200 complies with the EU directive 2004/108/EC. Applied harmonized standards: EN 61000-6-3:2007 + A1:2011 EN 61000-6-2:2005 18.02.2013, Dipl.-Ing. Christian Schlegel, Managing Director IXXAT Automation GmbH Leibnizstr.
