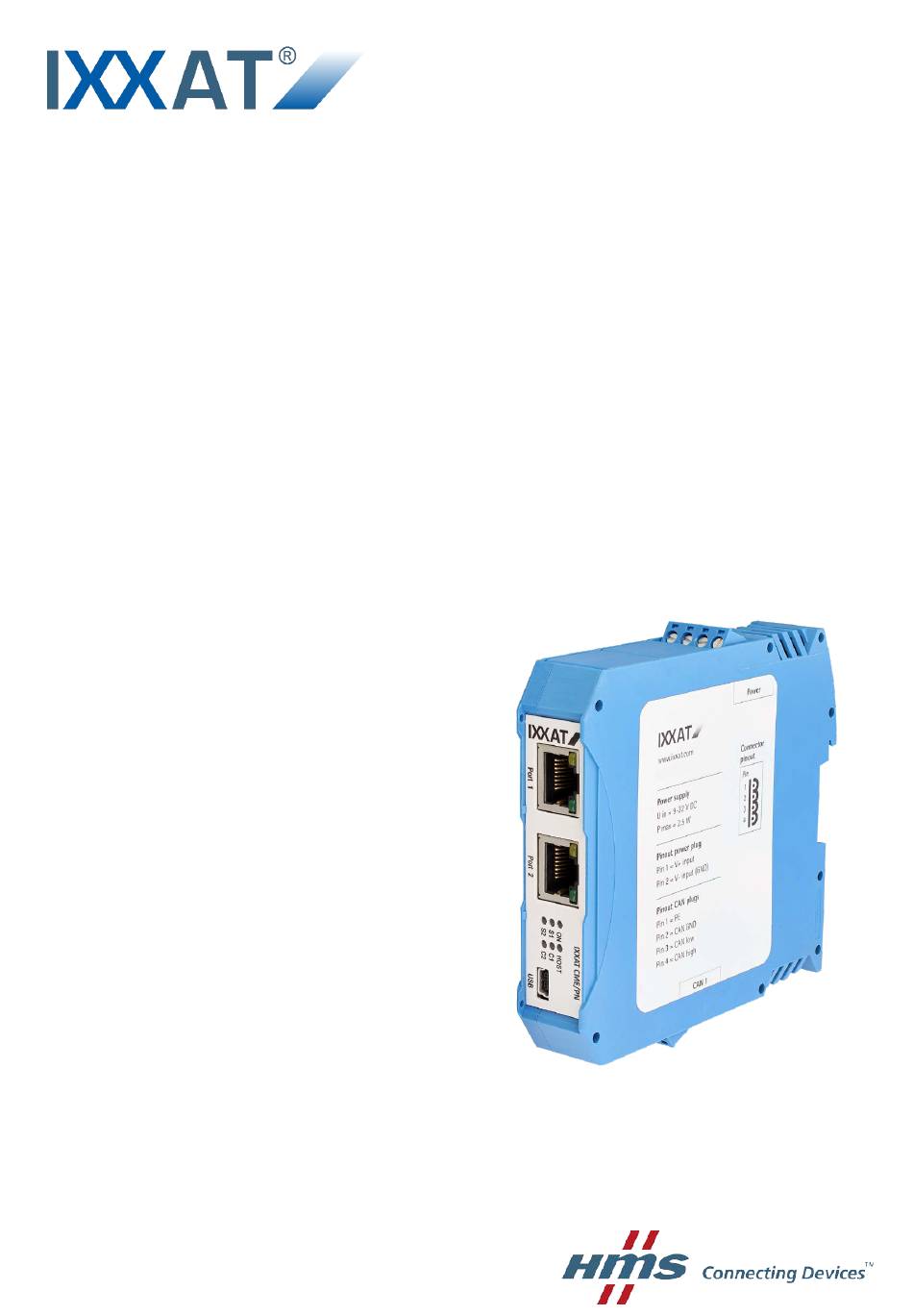

- Page 1 IXXAT CME/PN CANopen-PROFINET Gateway HARDWARE MANUAL ENGLISH...
- Page 2 Internet: www.hms-networks.de E-Mail: info-ravensburg@hms-networks.de Support For problems or support with this product or other HMS products please request support at www.ixxat.com/support. Further international support contacts can be found on our webpage www.ixxat.com Copyright Duplication (copying, printing, microfilm or other forms) and the electronic distribution of this document is only allowed with explicit permission of HMS Technology Center Ravensburg GmbH.
-
Page 3: Table Of Contents
4.1 Support .................. 13 4.2 Returning hardware .............. 13 4.3 FCC Compliance ..............13 4.4 Disposing of old equipment ..........13 4.5 Information on EMC .............. 14 4.6 Technical data ............... 15 4.7 EC Declaration of Conformity ..........16 IXXAT CME/PN-Manual, Version 1.4... -
Page 5: Introduction
Introduction 1 Introduction 1.1 Overview In the CANopen-PROFINET Gateway IXXAT CME/PN, you have purchased a high-quality electronic component that has been developed and manufactured according to the latest technological state of the art. 1.2 Features Input voltage range 9 - 32 V DC ... -
Page 6: Installation
Installation 2 Installation 2.1 Software installation The software you will need to operate the IXXAT CME/PN is listed in the manual: CANopen Configuration Studio for IXXAT CME/PN 2.2 Hardware installation No special hardware installation is needed to operate the IXXAT CME/PN. Only connections to a power source, to Ethernet, and to CAN need to be established. -
Page 7: Connections And Displays
Figure 3-1: Connections and displays on the IXXAT CME/PN 3.1.1 Power plug A screw terminal is used to connect the IXXAT CME/PN to a power supply. For the cabling, it is important for the cables to have a sufficient cross section (>0.14mm... -
Page 8: Ethernet Connectors
The IXXAT CME/PN has a CAN bus connection compliant with ISO11898-2. The CAN connection is galvanically isolated from the main electronics. A screw terminal is needed to connect the IXXAT CME/PN to the CAN bus. The pinout of the screw terminal is shown in Table 3-3. -
Page 9: Displays
Table 3-3: Pinout of the CAN connector 3.2 Displays The IXXAT CME/PN has six LEDs. These LEDs are used to display the communication status of the associated interfaces and/or to display the device status. The RJ45 connectors also each have two LEDs that display the link status of the corresponding Ethernet port. -
Page 10: Power Led (On)
No connection (AR) to the controller If an invalid firmware update file is loaded via Ethernet both LEDs S1 and S2 will blink red. In this case the device must be power cycled. Afterwards the device will be operational again. IXXAT CME/PN-Manual, Version 1.4... -
Page 11: Host Status Led (Host)
The green CAN RUN LED is used to indicate the status of CANopen communication. • C1 Color Mode Status Gateway software is not running, initialization Fatal Error if HOST LED red flickering green blinking PRE-OPERATIONAL green single flash STOPPED green OPERATIONAL IXXAT CME/PN-Manual, Version 1.4... -
Page 12: Can Error Led (C2)
No connection to the Ethernet network green Connection available to the network; no network activity green flashing Ethernet communication is taking place Speed Color Mode Status yellow 10Mb/s operation yellow 100Mb/s operation (with active Link/Activity LED only) IXXAT CME/PN-Manual, Version 1.4... -
Page 13: Appendix
4 Appendix 4.1 Support For more information on our products, FAQ lists and installation tips, please refer to the support area on our homepage (http://www.ixxat.de). There you will also find information on current product versions and available updates. 4.2 Returning hardware If it is necessary to return hardware to us, please download the relevant RMA form from our homepage and follow the instructions on this form. -
Page 14: Information On Emc
Appendix Die Allgemeinen Geschäftsbedingungen und deren Ergänzungen sowie weitere Hinweise zur Entsorgung von Altgeräten können unter www.ixxat.de herunter geladen werden. 4.5 Information on EMC The product is a class A device. If the product is used in office or home environment radio interference can occur under certain conditions. -
Page 15: Technical Data
VLAN mode CAN interface: galvanically isolated CAN interface as defined in ISO11898-2 (Highspeed CAN) Galvanic isolation: 500 V AC for 1 min CAN-Transceiver: Texas Instruments SN65HVD251 Max. number of CAN bus nodes: CAN bus terminating resistor: None IXXAT CME/PN-Manual, Version 1.4... -
Page 16: Ec Declaration Of Conformity
Appendix 4.7 EC Declaration of Conformity IXXAT Automation declares, that the product: IXXAT CME/PN With the article numbers: 1.01.0261.00100 1.01.0261.00200 complies with the EU directive 2004/108/EC. Applied harmonized standards: EN 61000-6-3:2007 + A1:2011 EN 61000-6-2:2005 18.02.2013, Dipl.-Ing. Christian Schlegel, Managing Director IXXAT Automation GmbH Leibnizstr.
