- Page 1 Manual CANbridge CAN-to-CAN Gateway The experts for industrial and automotive communication...
- Page 2 Internet: www.ixxat.de Internet: www.ixxat.com e-Mail: info@ixxat.de e-Mail: sales@ixxat.com Support In case of unsolvable problems with this product or other IXXAT products please contact IXXAT in written form by: Fax: +49 (0)7 51 / 5 61 46-29 e-Mail: support@ixxat.de Copyright Duplication (copying, printing, microfilm or other forms) and the electronic distribution of this document is only allowed with explicit permission of IXXAT Automation GmbH.
-
Page 3: Table Of Contents
4.2 Automatic baudrate detection ........... 14 4.2.1 PWR LED ..............14 4.2.2 CAN1/CAN2 LED............14 5 Functional description..............15 5.1 Introduction................ 15 5.2 Data Structure of the Configuration Files ......16 5.2.1 General settings [General] ........18 Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... - Page 4 7.1 Aluminum Version ...............27 7.2 Industrial DIN-Rail Version – Shield concept .......27 Appendix ..................28 Technical Data................28 Accessories .................29 Null modem cable ...............29 CAN bus termination resistor ..........29 FCC Compliance................30 EC Declaration of Conformity ............31 Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4...
-
Page 5: Introduction

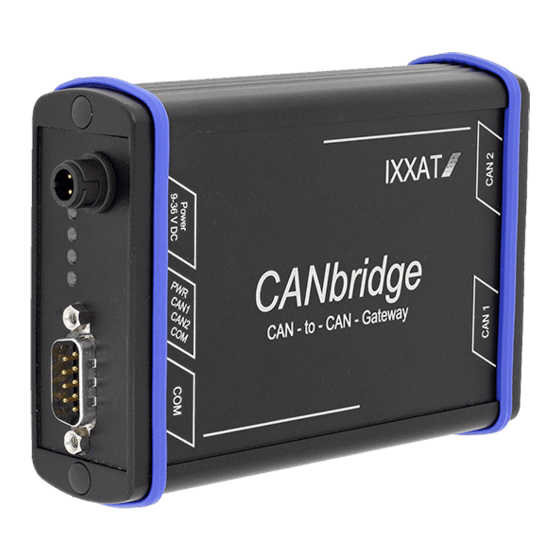

The component allows a configurable coupling of two, also different, CAN net- works. It is configured via a configuration file and the download program in- cluded in the delivery. This manual is intended to familiarize you with your CANbridge. Please read this manual before beginning with the installation. Features •... -
Page 6: Block Diagram
Interface High or Low High Speed Speed Automotive Range (7V-16V) CAN High CAN High CAN Low CAN Low Power Supply CAN Bus 1 CAN Bus 2 Fig. 1-1: Block circuit diagram CANbridge Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 7: Support
Support For more information on our products, FAQ lists and installation tips, please refer to the support area on our homepage (http://www.ixxat.de). There you will also find information on current product versions and available updates. If you have any further questions after studying the information on our home- page and the manuals, please contact our support department. -
Page 8: Aluminum Version
7 V - 16 V. A pre-fabricated cable for power supply is included in the scope of delivery. The connection allocation is shown in Table 2-1. The CANbridge is protected against polarity reversal, under-voltage and over- voltage. In the event of polarity reversal or under-voltage, it is switched off, with over-voltage an internal fuse is triggered. -
Page 9: Serial Interface Rs232 (X2)
Aluminum Version 2.1.2 Serial interface RS232 (X2) The serial interface is used for configuration of the CANbridge. The signals of the serial interface are connected to the 9-pin Sub-D connector X2 (see Table 2-2). Pin no. Signal Table 2-2: Pin allocation RS232 2.1.3 CAN 1 (X3) -
Page 10: Can 2 (X4)
The shield connections of CAN1 (X3), CAN2 (X4), serial interface (X2) and power supply (X1) are connected with each other both in the version with and in the version without galvanic isolation. Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 11: Industrial Din-Rail Version
Voltage supply (X1) The device is supplied with DC voltage of 9V – 36V. The pin allocation is shown in Table 3-1. The CANbridge is protected against polarity reversal, under-voltage and over-voltage. In the event of polarity reversal or under-voltage, it is switched off, with over- voltage an internal fuse is triggered. -
Page 12: Serial Interface Rs232 (X2)
3.1.3 CAN 1 (X3) CAN 1 is available on X3 with a bus interface according to ISO 11898-2 (see Ta- ble 3-3). Signal CAN High CAN Low Table 3-3: Pin allocation CAN1 Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 13: Can 2 (X4)
The shield connection of the serial interface (X2) and the PE connection (X1 – terminal 1) are connected with each other both in the version with and in the version without galvanic isolation. Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 14: Displays
Displays Displays The CANbridge has four 2-color LEDs (see Fig. 2-1 or Fig. 3-1). The LEDs behave in the following way depending on the operating mode of the CANbridge. Normal mode (Gateway mode) 4.1.1 PWR - LED The Power-LED (PWR) is lit when the CANbridge is connected to the supply volt- age and the microcontroller is installed. -
Page 15: Functional Description
CANbridge offers automatic baud rate detection. For configuration of the CANbridge, an ASCII-file is created and the configuration data are loaded onto the CANbridge via the serial interface with the aid of a download tool. The setting possibilities are described in Table 5-1. -
Page 16: Data Structure Of The Configuration Files
CANBusOffRecovery (under [General]) 2. Do not allow restart after Bus Off Table 5-1: Possible settings of the CANbridge Data Structure of the Configuration Files A template of the ASCII configuration file can be generated with the download tool (see Section 6). The required configuration can be easily created with the template and a text editor. - Page 17 ;normal id retransmission with the 0x006 = 0x006 ;same identifier on both sides … 0x110 = 0x210 ;modify the id 0x111 = 0x110c200 ;modify the id … 0x7fa = ;not forward 0x7fb = no ;not forward Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4...
-
Page 18: General Settings [General]
CAN segment remains in Bus Off state until the device is switched off. If a time between 1 and 60 seconds is specified, CANbridge is restarted after this time expires. With a restart, the CAN message buffers of both CAN segments are cleared. -
Page 19: Can-Bus Settings [Canbus1] / [Canbus2]
Check baud rate expired Restart timeout activity Baud rate found is used on both sides Baudrate found Transmission Transmission successful error CANbridge Normal switches off operation Fig. 5-1: Status diagram automatic baudrate detection Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 20: Frameformat
GatewayTable = no, all messages are transmitted unchanged to the other seg- ment. The entries in the tables are ignored. Note: with different frame formats, the gateway tables must be used for transla- tion into the other format. Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 21: Gateway Tables [Can1Gatewaytable]/[Can2Gatewaytable]
… 0x7fa= ; The identifiers that are not listed 0x7fb=no ; or that do not have a 0x7fc= ; numerical value on the right side 0x7fd= ; are not forwarded to CAN2 Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 22: Sample Configurations
Functional description Sample configurations 5.3.1 Standard configuration With the standard configuration of the CANbridge, automatic baud rate detec- tion and repeater functionality (RepeaterFunctionality=yes) are activated. Both frame formats (std and ext) are processed simultaneously. [General] TemplateVersion = 01.01.00 ;!Don’t change this! -
Page 23: Bridge With Different Frames And Filters
800 kbit/s and the gateway Table is used. CAN2 works with extended frame format, the baudrate is defined by the Bit Timing Registers BTR0 and BTR1, the gateway table is also used. If a CAN bus goes into Bus Off state, the CANbridge is restarted after 10 seconds. -
Page 24: Download Tool
• You can open a DOS box under “Start – Programs – MS-DOS-Prompt“, change to the directory in which the CANBcfg.exe program is found and then execute it with the corresponding parameters. • You can create a Batch-file or a link. Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 25: Generating A Configuration File
-y when exe- cuting the program (e.g. CANBcfg –a myconfig.cfg –c1 -y). In this case the con- figuration is loaded into the CANbridge without asking again. Copyright IXXAT Automation GmbH... -
Page 26: Display Of The Current Configuration
The current configuration can be read out with parameter –v (e.g. CANBcfg –v – c2). The file name of the configuration file and the character chain entered when creating the configuration in the ASCII-file are displayed (see Section 5.2.2). Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 27: Notes On Emc
(Pin 1 / PE, FASTON 6,3 x 0,8 mm) of the CANbridge is connected to the next available grounding (see Fig. 7-1). Via parallel connection of a resistor (1 MΩ) and a ca- pacitor, the grounding connection is connected internally to the GND of CAN1, CAN2 and of the supply voltage. -
Page 28: Appendix
EMC test according to: DIN EN 55022 / 05.1999 DIN EN 61000-4-2 / 03.1996 DIN EN 61000-4-3 / 06.1999 DIN EN 61000-4-4 / 03.1996 DIN EN 61000-4-5 / 09.1996 DIN EN 61000-4-6 / 04.1997 Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 29: Accessories
Appendix Accessories Null modem cable To configure the CANbridge there is a null modem cable available. Ordering Number 2.09.0000.00524 Sub-D9 Sub-D9 RTS/CTS Table A-1: cable links of the null modem cable CAN bus termination resistor For CAN-Bus termination there is a Sub-D9 feed through connector with internal 120 Ohm resistor available. -
Page 30: Fcc Compliance
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Copyright IXXAT Automation GmbH CANbridge - Manual, V1.4... -
Page 31: Ec Declaration Of Conformity
Appendix EC Declaration of Conformity IXXAT Automation hereby declares that the product: CANbridge model: CANbridge industrial ALU, CANbridge automotive with the article numbers: 1.01.0120.11010 1.01.0120.11020 1.01.0120.13010 1.01.0120.13020 1.01.0120.22010 model: CANbridge industrial DIN Rail with the article numbers: 1.01.0121.11020 1.01.0121.22020 fulfills the requirements of the standards: DIN EN 55022/ 05.1999 class B...
