Range Master FB6200-S User Manual

Digital bbq thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide
Digital BBQ
®
Thermometer
eter
ID: #05007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FB6200-S and is the answer not in the manual?

Questions and answers

Related Manuals for Range Master FB6200-S

Summary of Contents for Range Master FB6200-S

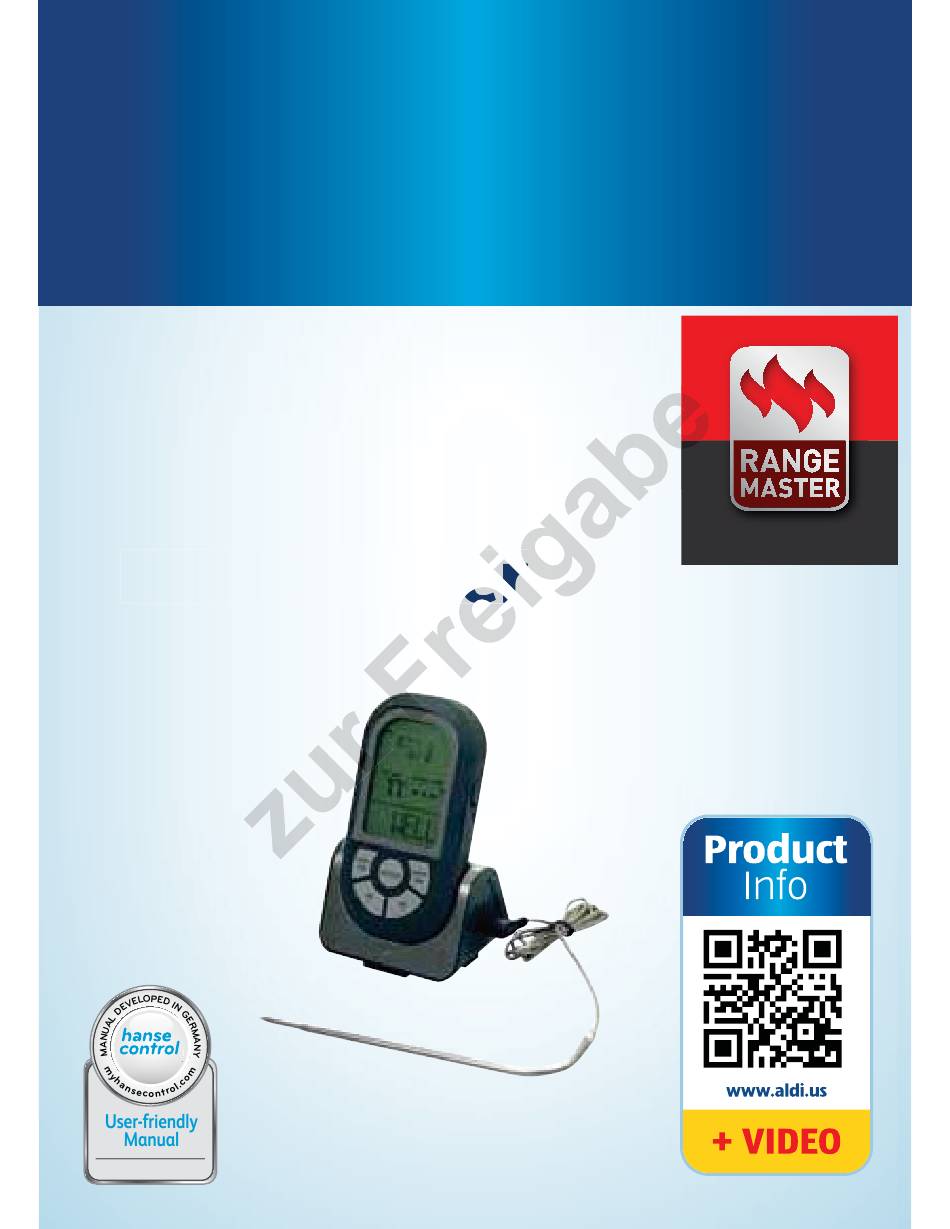

  • Page 1 User Guide Digital BBQ ® Thermometer eter ID: #05007...
  • Page 2 QR codes take you where you want to go quickly and easily Whether you require product information, spare parts or accessories, details on warranties or aftersales services, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all. What is a QR code? A QR code (QR = Quick Response) is a type of matrix that can be matr...

  • Page 3: Table Of Contents

    Contents Overview ................4 Use ..................5 Product contents/device parts .......... 6 General information ............7 Before you use this digital BBQ thermometer, read through the instruction manual and store it in a safe place! ................7 Explanation of symbols ............8 ..

  • Page 4: Overview

    Overview...

  • Page 5: Use

    BEEF TARGET TEMP CURRENT TEMP MEAT TASTE MODE...

  • Page 6: Product Contents/Device Parts

    Product contents/device parts Product contents⁄device parts Receiver Display ON/OFF switch Control panel Base unit Temperature sensor Battery compartment cover °C/°F selector switch Power ON/OFF switch 4x AAA batteries Battery compartment cover Food icon indicator CURRENT TEMP indicator icator icator COOKING LEVEL indicator icator icato COOKING LEVEL/START button...

  • Page 7: General Information

    General information General information Before you use this digital BBQ thermometer, read through the instruction manual and store it in a safe place! This instruction manual is part of this digital art of this of thi BBQ thermometer. It contains important in- ains importa ains impor formation on setup and handling.

  • Page 8: Explanation Of Symbols

    General information Explanation of symbols The following symbols and signal words are used in this instruction manual, on the digital BBQ thermometer or on the packaging. WARNING! This signal word designates a hazard with moderate degree of risk which of ris may lead to death or severe injury if not injury if n ry if n...

  • Page 9: Checking The Digital Bbq Thermometer And Scope Of Delivery

    General information Checking the digital BBQ thermometer and scope of delivery NOTICE! Risk of damage! If you are not cautious when opening the packaging with a sharp knife or other pointy object, pointy o you may quickly damage the digi- damage the mage th tal BBQ thermometer.

  • Page 10: Safety

    Safety Safety Proper use For improved readability, the digital BBQ thermometer will only be referred to as the “barbecue thermometer”; it is designed exclusively for measuring and monitoring the internal temperature of food being barbecued. The rbecu barbecue thermometer is exclusively intended for pri- tended for ded fo vate use indoors.
  • Page 11 Safety WARNING! Burn hazard! Handling the barbecue ther- mometer improperly may result in injury. − Make sure that there is no risk of other persons, especially children, or animals n, or an or an burning themselves on the barbecue he barbec he barbe thermometer.
  • Page 12 Safety − This barbecue thermometer may be used by children ages eight and over as well as persons with impaired physical, sensory or mental capacities or those lacking experience and knowledge if they are supervised or have been in- structed in how to safely use the barbe- cue thermometer and have understood unders ders...
  • Page 13 Safety − Never use the barbecue thermometer in a microwave or oven. − Keep the barbecue thermometer and its accessories away from open fire and hot surfaces. − Do not expose the base unit and the receiver to direct sunlight. −...

  • Page 14: Safety Notes For Batteries

    Safety Safety notes for batteries WARNING! Danger of explosion! Batteries may explode if they are excessively heated up. − Do not subject the barbecue thermom- herm eter to direct sunlight to prevent the event the event th batteries from becoming too hot. g too hot.
  • Page 15 Safety − Immediately consult a physician if children or animals have swallowed a battery. NOTICE! Risk of damage! Improper handling of the batter- ies may result in damage. mage. − Remove all batteries if you do not use the you do not u u do n barbecue thermometer for a prolonged ter for a pro...

  • Page 16: First Use

    First use − Only replace batteries with equivalent batteries or batteries of the same type. Do not use new and used batteries together. Only use batteries of the same type and from the same manufacturer. First use Basic cleaning − Remove the packaging material and all protective al and all prot and all p foils.
  • Page 17 First use 4. Close the battery compartment and switch the receiv- er on with the switch (> ON). Once the indicator appears on the display of the receiver, the receiver is operational. 5. Take the base unit and open the battery compart- ment on the bottom of it.

  • Page 18: Operation

    Operation NOTICE! As soon as the base unit has been switched on and the temperature sensor is connected with the base unit, the current temperature will appear as CURRENT TEMP on the dis- play of the receiver (see fig. A). If no current temperature is shown, check wheth- er the connector plug of the temperature e temp...
  • Page 19 Operation Food/ WELL M WELL MEDIUM M RARE RARE Cooking Well Medium Medium Medium Rare level done well rare Beef 77 °C 74 °C 71 °C 66 °C 63 °C 170 °F 165 °F 160 °F 150 °F 145 °F Lamb 77 °C 74 °C...
  • Page 20 Operation WARNING! Burn hazard! The temperature sensor and transmission cable may become hot. − Always wear barbecue gloves when touching the tempera- tempe ture sensor or the transmission transmiss transmi cable during or after use. r after use. fter us −...
  • Page 21 Operation NOTICE! The preset target temperature is shown on the display as the TARGET TEMP (see fig. D). 3. Insert the tip of the temperature sensor in the thickest part of the food whose temperature you would like to monitor. Insert the tip of the tempera- he te ture sensor in the side of the food so that you can turn o that you...

  • Page 22: Timer Function

    Operation The CURRENT TEMP will steadily increase the lon- ger the food is barbecued until the target tempera- ture has been reached. Once the target temperature has been reached, the display indicator (see fig. D) will switch to the alarm function, the display will turn red and flash.

  • Page 23: Selecting The Target Temperature

    Operation 3. Push the START button (fig. D) to start the timer function. The timer indicator on the display will indicate the remaining time for the temperature measurement (fig. D). 4. Push the STOP button (see fig. G) to interrupt the timer function, for example, to check how well cooked the food is.
  • Page 24 Operation 2. Now push the MIN button until you have reached the desired target temperature. If you would like to correct your entry, you can use the SEC button reduce the preset time by one minute each. 3. If the target temperature setting is correct, you can exit the select function by pushing the MODE button 4.

  • Page 25: Cleaning

    Operation Cleaning WARNING! Risk of electric shock! Improper handling of the digital BBQ thermometer poses an in- creased risk of electrical shock. – Do not insert the tip of the tem- p of the t f the perature sensor in the socket. the socket he sock WARNING!
  • Page 26 Operation NOTICE! Risk of short circuit! Water that has penetrated the housing may cause a short circuit. − Never submerge the digital BBQ thermometer in water. − Make sure that no water pene- water pe er p trates the housing. NOTICE! Risk of damage! age!
  • Page 27 Operation − Do not in any case place the barbecue thermometer in the dishwasher. It would be de- stroyed as a result. 1. Let all parts of the barbecue thermometer cool off completely. 2. Wipe the receiver and the base unit off with a damp cloth.

  • Page 28: Storage And Transport

    Operation Storage and transport − Clean the barbecue thermometer as described. − Remove all batteries if you do not intend to use the barbecue thermometer for a prolonged period of time or when putting it into storage. − Store the barbecue thermometer and the accesso- ries in a dry, frost-free area that is out of the reach of children.

  • Page 29: Technical Data

    Technical data Technical data Model: FB6200-S (transmitter) FB6200-E (receiver) Power supply: 6V, 4 x 1.5V DC AAA type AAA / LR 03 Receiver category: Transmit duty cycle: 10 % Cable length temp. sensor: 47.24 " (120 cm) " (120 cm) (120 cm) Cordless transmission: 10–12 m...

  • Page 30: Fcc Declaration Of Conformity

    FCC Declaration of Conformity FCC Declaration of Conformity This device complies with part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 31 FCC Declaration of Conformity NOTICE! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against on ag harmful interference in a residen- e in a resi...
  • Page 32 FCC Declaration of Conformity − Reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − Connect the equipment into an outlet on a circuit different from that to which the receiver e re is connected. −...

  • Page 33: Disposal

    Disposal Disposal Disposing of packaging − Sort the packaging before you dispose of it. Dispose of cardboard and carton as waste paper and foils via the recyclable material collection service. Disposing of the barbecue thermometer thermom thermo − Should the barbecue thermometer no longer be er no longe er no lo capable of being used at some point in time, dispose...

  • Page 35: Warranty

    Return your completed warranty card AFTER SALES SUPPORT together with the faulty product to: 1-888-367-7373 customer-service@wk-usa.com Product code: 92205 Model: FB6200-S (transmitter) 05/2015 FB6200-E (receiver) Wachsmuth & Krogmann Inc. 621 IL Route 83, Suite 202 Toll free hotline Bensenville, IL 60106...

  • Page 36: Warranty Conditions

    Warranty Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits compa- red to the statutory obligation arising from a warranty: Warranty period:3 years from date of purchase. 6 months for wear parts and consu- and co d co mables under normal and proper and proper nd prope...
  • Page 37 Warranty The warranty does not cover damage caused by: • Accident or unanticipated events (e.g. lightning, water, fire). • Improper use or transport. • Disregard of the safety and maintenance instructions. • Other improper treatment or modification. After the expiry of the warranty period, you still have the pos- still have have sibility to have your product repaired at your own expense.
  • Page 39 Made in China DISTRIBUTED BY: ALDI INC. BATAVIA, IL 60510 www.aldi.us AFTER SALES SUPPORT 1-888-367-7373 customer-service@wk-usa.com YEARS Model: FB6200-E (receiver) Product code: 92205 WARRANTY 05/2015 FB6200-S (transmitter)

This manual is also suitable for:

Fb6200-e
