Hard Disk Trays

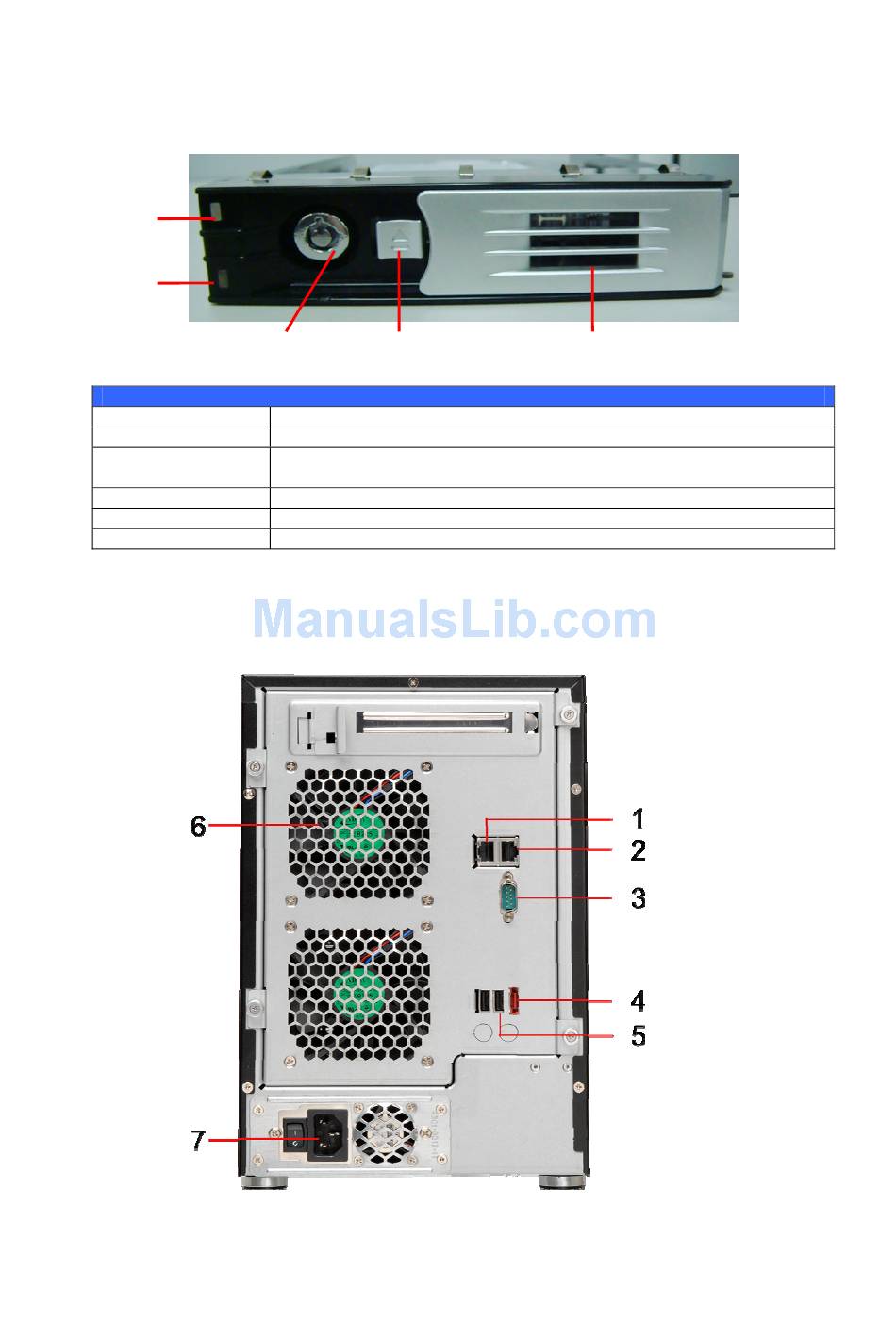

Each of the N7700's hard disk trays has a lock, a latch, and two LED indicators:
1
2
Hard Disk Trays
Item
1.HDD Power LED
2.HDD
Access/Error LED
3.Lock
4.Latch
5.Handle

Rear Panel

The N7700 rear panel features ports and connectors.
3 4
Description
• Solid blue: hard disk is powered on
• Blinking green: system is accessing data on the hard disk
• Use the lock to physically secure the hard disk to the unit
• Use to open and remove or close and secure the tray
• Pull out HDD tray
