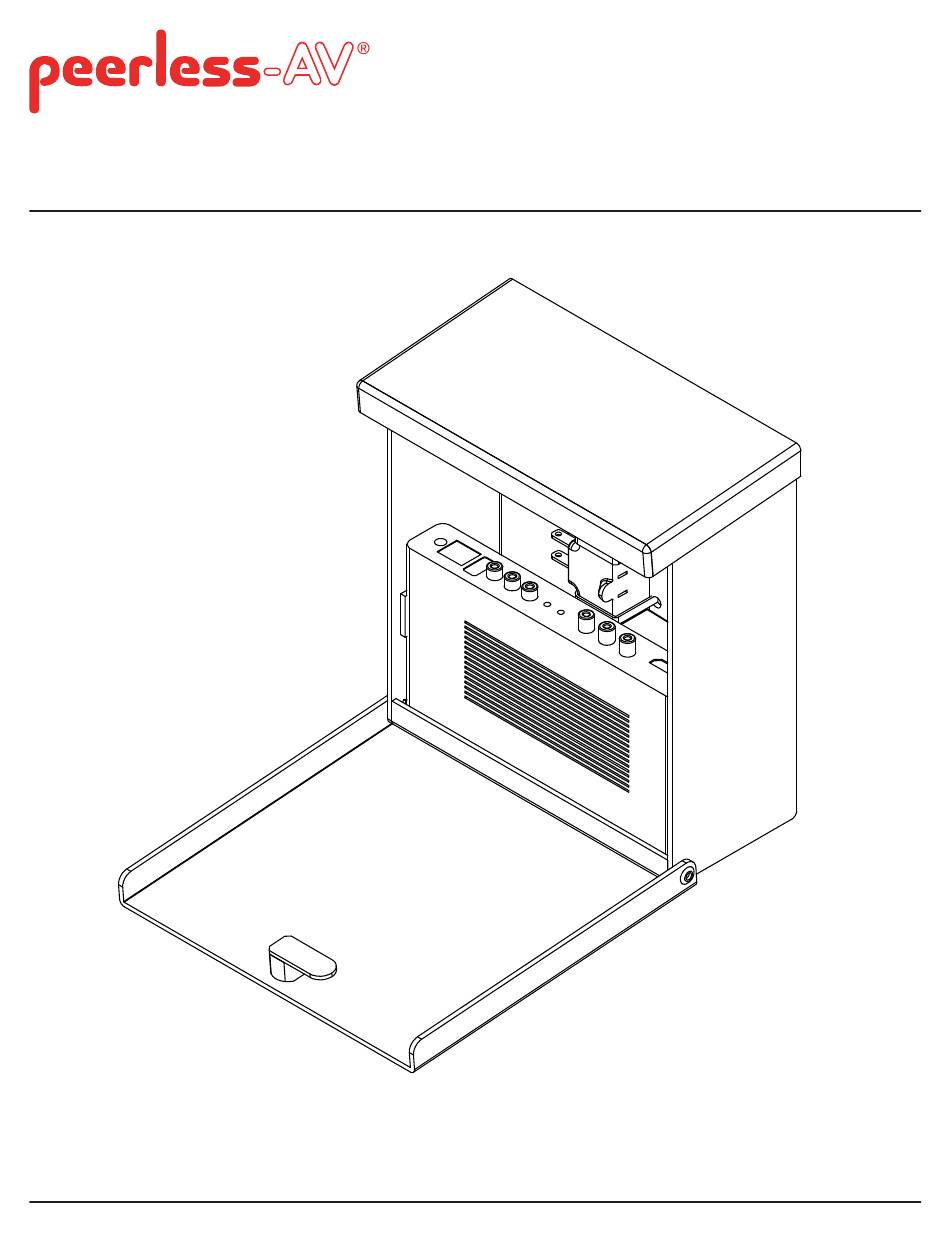

- Page 1 Installation and Assembly: Outdoor Wireless Kit Models: HDS-OWK-% 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com 2016-09-07 SHEET #: 180-9091-1...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Parts List
Before you begin, make sure all parts shown are included with your product. Parts List HDS-OWK-% A wireless receiver assembly, outdoor 180-1427 " 5 D cable tie .187 x 7.5 lg. 590-1168 E cable tie .04 x 5.75 lg. 560-9711 F push-in round plastic plug, 3/8"... - Page 4 Verify that the Transmitter is set to the appropriate input port. © 2012 Peerless Industries, Inc. Peerless-AV™ is a trademark of Peerless Industries, Inc. All rights reserved. HD Flow™ is a trademark of I Do It, LTD. Other parties’ marks are the property of their respective owners. hdflow.com...
-
Page 5: Enclosure Wall Installation
Enclosure Wall Installation Open the wireless receiver enclosure (A) and unplug the wireless receiver power cord from the wireless receiver. Remove the wireless receiver and sub panel assembly as shown in fi g. 1.1. Choose two holes for securing the wireless receiver enclosure (A). - Page 6 Enclosure Wall Installation to Solid Concrete or Cinder Block WARNING • Verify that you have a minimum of 1-3/8" (35mm) of actual concrete thickness in the hole to be used for the con- crete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1" (25mm) mini- mum from the side of the block.
-
Page 7: Enclosure Installation To Esa763Pu Articulating Wall Mount
Enclosure Installation to ESA763PU Articulating Wall Mount NOTE: If display has a VESA 400 horizontal mounting pattern, skip to step 4 on page 8. NOTE: For VESA 200x200 or VESA 200x100 mount hole patterns, skip to step 6 on page 11. 1/4-20 x 1.25"... - Page 8 Open the wireless receiver enclosure (A) and unplug the wireless receiver power cord from the wireless receiver. Remove the wireless receiver and sub panel assembly as shown in fi g. 4.1. Loosely attach the small enclosure mounting brackets (J) to the wireless receiver enclosure (A) with two 1/4-20 x 1/2 socket head screws (G) and two 1/4-20 nuts (H) as shown in fi...
- Page 9 Installing Adapter Brackets to Display WARNING • Tighten screws so display brackets are fi rmly attached to display. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque. •...
- Page 10 NOTE: enclosure removed for clarity. Begin with the longest length screw, hand thread screw through multi-washer, display brackets and DISPLAY spacer in that order into display as shown below. MULTI-WASHER Screw must make at least three full turns into the SPACER mounting hole and fi...
- Page 11 Enclosure Installation to ESA763PU Articulating Wall Mount VESA 200 x 200 or VESA 200 x 100 Mounting Pattern Remove four 1/4-20 x .6" screws using a 5mm allen wrench and loosen two 1/4-20 x 1.25" screws 1/2 turn to allow for display bracket adjustment.
- Page 12 Open the wireless receiver enclosure (A) and unplug the wireless receiver power cord from the wireless receiver. Remove the wireless receiver and sub panel assembly as shown in fi g. 6.3. Loosely attach the large enclosure mounting brackets (K) to the wireless receiver enclosure (A) with two 1/4-20 x 1/2 socket head screws (G) and two 1/4-20 nuts (H) as shown in fi...
- Page 13 Align one display bracket with one set of display mounting holes. Place spacers between display bracket and display. Begin with the longest length screw, hand thread screw through the multi-washer, display brackets, and spacer into display as shown. Screw must make at least three full turns into the mounting hole and fi t snug into place.
- Page 14 Center the universal adapter bracket horizontally on back of display as shown in fi gure 6.6. Tighten two 1/4-20 x 1.25" screws. Reinstall four 1/4-20 x .6" screws using a 5 mm allen wrench into fi xed-stop position 1 as shown in fi gure 6.7. 1/4-20 x 1.25"...
- Page 15 WARNING • Do not lift more weight than you can handle. Use additional man power or mechanical lifting equipment to safely handle placement of the display. • Do not tighten screws with excessive force. Overtightening can cause damage to mount. Tighten M10 x 15 mm screws (E) to 40 in.
-
Page 16: Enclosure Installation To Ept650 Tilt Wall Mount
Enclosure Installation to EPT650 Tilt Wall Mount Open the wireless receiver enclosure (A) and unplug the wireless receiver power cord from the wireless receiver. Remove the wireless receiver and sub panel assembly as shown in fi g. 8.1. Loosely attach the small enclosure mounting brackets (J) to the wireless receiver enclosure (A) with two 1/4-20 x 1/2 socket head screws (G) and two 1/4-20 nuts (H) as shown in fi... - Page 17 Installing Tilt Brackets WARNING • Tighten screws so adapter brackets are fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque. •...
- Page 18 10-1 Begin with longer length screw, hand thread through multi-washer, tilt bracket and spacer in that order into display as shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not over tighten.
-
Page 19: Wireless Receiver Setup
Wireless Receiver Setup Insert the sub panel assembly into the wireless receiver enclosure (A) above the foam pads as shown. Push the sub panel assembly towards the rear of the until it makes contact with the back wall and the bottom of the enclosure . - Page 20 Insert the power cord from your display through the cord access hole in the bottom of the enclosure as shown. Plug the power cord into the triple tap grounded outlet. Coil up the excess cord and secure with a cable tie (E). Store excess cord inside enclosure.
- Page 21 Flow™ Install Guide included. 21 of 22 2016-09-07 SHEET #: 180-9091-1 © 2012 Peerless Industries, Inc. Peerless-AV® is a registered trademark of Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
- Page 22 CONTACT INFORMATION Customer Care Need help with installation or set up? Call Peerless-AV Customer Care 1-800-865-2112 (available 7:00am- 7:00pm CST, Monday - Friday), or email us at info@peerless-av.com. Peerless -AV 2300 White Oak Circle Aurora, IL 60502 USA www.peerless-av.com...
