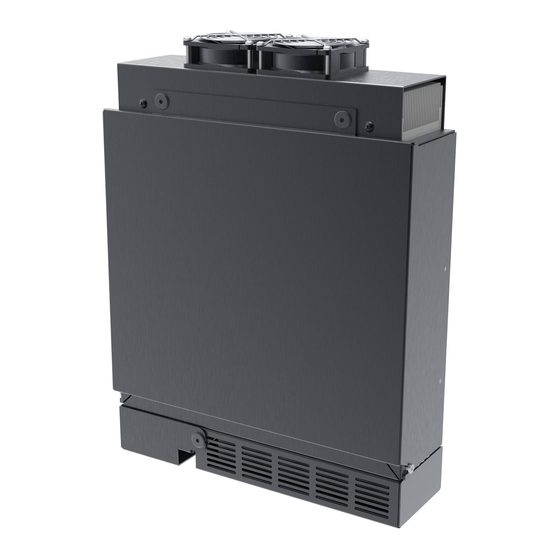

XACE-01, XACE-02
1
2019-09-26
#:180-9135-4
(2020-08-25)
Advertisement
Table of Contents
Related Manuals for peerless-AV XACE-01
Summary of Contents for peerless-AV XACE-01
- Page 1 XACE-01, XACE-02 Visit website for translated user guide. Visite la página web para ver la traducción de la guía del usuario. Veuillez consulter le site internet pour la traduction du guide de l'utilisateur. Siehe Website für Bedienungsanleitung auf Deutsch. Visitare il sito web per la guida dell'utente tradotta.
-
Page 2: Electrical Code
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced Peerless-AV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •... -
Page 3: General Safety Precautions
GENERAL SAFETY PRECAUTIONS Read before operating equipment Thank you for purchasing our product. Before using it, please read this user guide carefully and follow the instructions for safe operation. Please keep this manual for future reference and always include it when transferring or transporting this product to a different location. -
Page 4: Operating Parameters
OPERATING PARAMETERS Your device will run at a higher or lower temperature than the outside ambient temperature. To verify your device will function under typical operating conditions, consult the device's manual to identify and record the power consumption ( _______ wattage) and maximum operating temperature (_______ °). Use chart below to determine the active enclosure temperature differential based on your device(s) power consumption (wattage). - Page 5 OPERATING PARAMETERS CAUTION Grommet Grip Part Size Range ENG - Two device maximum. Do not stack devices. Secure devices side-by-side. 3mm - 3.9mm 4mm - 4.9mm 5mm - 5.9mm 6mm - 6.9mm 7mm - 7.9mm 8mm - 8.9mm dual 3mm 3mm - 3.9mm dual 4mm 4mm - 4.9mm...
-
Page 6: Parts List
Parts (Before beginning, make sure you have all parts shown below). Parts List XACE-01 XACE-02 Description Part # Part # enclosure assembly 180-T1837-1 180-T1838-1 4mm allen wrench 560-9646 560-9646 velcro strap 560-0931 560-0931 wire gauge 180-T1818 180-T1818 3mm grommet 410-1094-R... - Page 7 WARNING ENG - Before starting the installation of any electronic devices, ensure that the electrical cord is not plugged into electricity. Failure to do so may result in injury or death. Loosen Optional security screws. Remove enclosure cover plate. 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 8 ENG loosen Remove. 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 9 Refer to operating parameters before attaching device. CAUTION ENG - Two device maximum. Do not stack devices. Secure devices side-by-side. ENG not included CAUTION ENG - Allow 1/4" space between device(s) and all internal surfaces for safe ventilation. ENG tighten 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 10 Remove gasket cover, and save hardware. ENG not included ENG Loosen. Do not remove. 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 11 Remove cable gland and save hardware. 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 12 Remove unused grommets. Do not remove preinstalled cable. blank (4) 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 13 Determine the smallest opening that your cable fits into. Use the grommet identified by that opening. Grommet Grip Part Size Range 3mm - 3.9mm 4mm - 4.9mm 5mm - 5.9mm 6mm - 6.9mm 7mm - 7.9mm 8mm - 8.9mm dual 3mm 3mm - 3.9mm dual 4mm 4mm - 4.9mm...
- Page 14 Slide grommets into enclosure, aligning grooves of grommet with grooves in cable gland. ENG Align grooves Top View ENG Note orientation of red edge Front View 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 15 CAUTION ENG All spaces must be filled. Blank grommets must be used where no cable is inserted. RED EDGES CAUTION ENG Orient grommet using red edges. Red edges must join in the center. Failure to follow these instructions can result in the product being damaged or destroyed, voiding the warranty.
- Page 16 10-1 Reassemble cable gland. ENG Groove must align and face inside enclosure. 10-2 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 17 11-1 Replace gasket cover, routing cables between inner and outer gasket covers. 11-2 Tighten. Route cables between gap in gasket cover. 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 18 12-1 Replace enclosure cover plate. 12-2 15 in. • lb (1.7 N.M.). CAUTION ENG - Cover plate must close without interference from internal devices. 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 19 ENG - For your safety, only mount with a mount that supports the weight of the enclosure and any internal hardware. When mounting the enclosure outdoors or in harsh environments, only use wall mounts that are designed to resist water and rust. 300mm 100mm 200mm 100mm Mount sold separately XACE-01 L (4) 100mm 100mm XACE-02 2019-09-26 #:180-9135-4 (2020-08-25)
-
Page 20: Product Specifications
Mechanical AC Input 100 VAC to 240 VAC, Overall Dimensions (W x H x D) 50 to 60 Hz XACE-01 13.95" x 18.08" x 3.99" (354 x 459 x 101mm) Power Consumption 150W MAX XACE-02 17.45" x 18.08" x 3.99"... - Page 21 This page intentionally left blank. 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 22 This page intentionally left blank. 2019-09-26 #:180-9135-4 (2020-08-25)
- Page 23 This page intentionally left blank. 2019-09-26 #:180-9135-4 (2020-08-25)
