DHC BT2000EV Owner's Manual

Golf cart maintenance battery analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

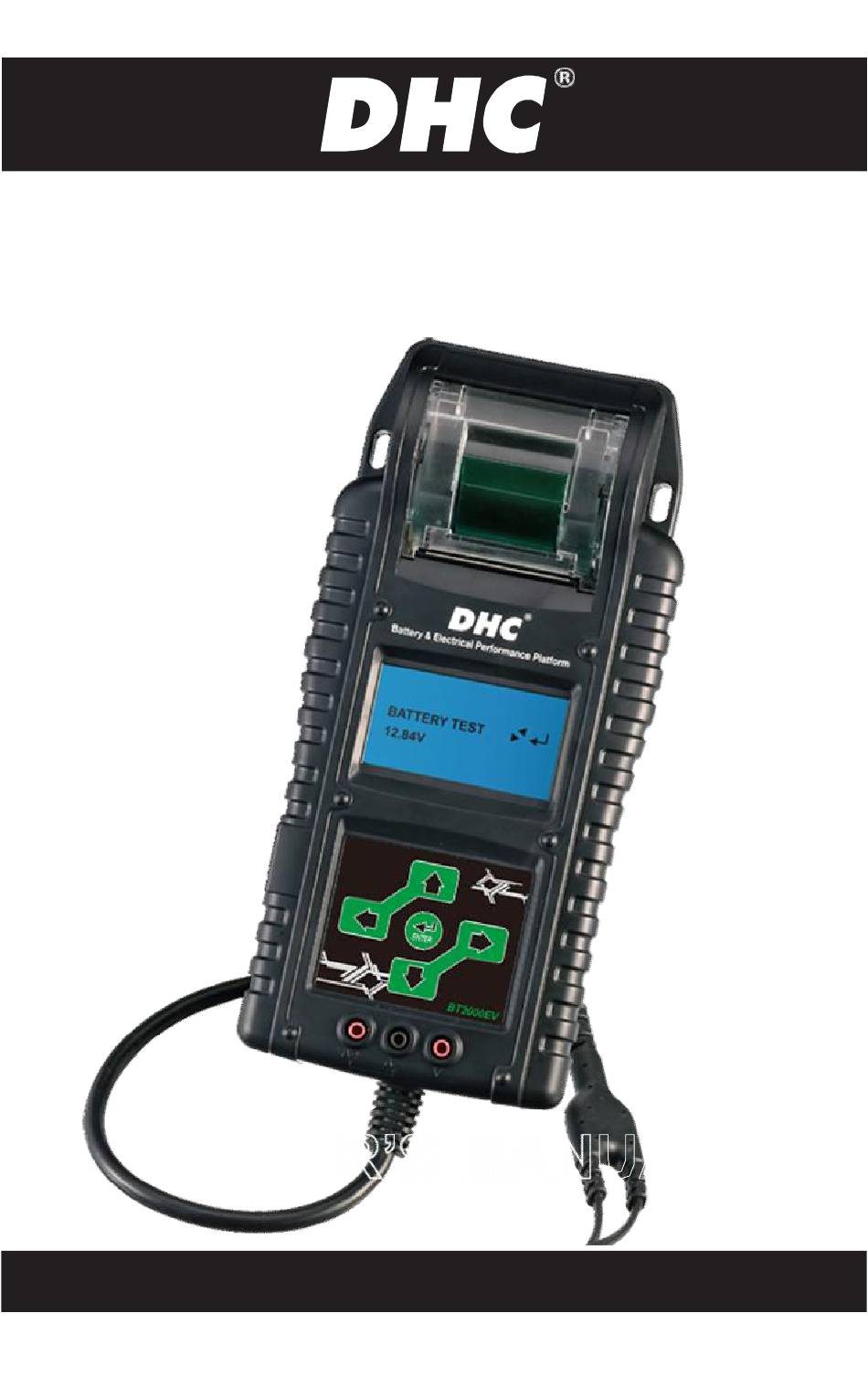

Model BT2000EV
GOLF CART MAINENANCE BATTERY ANALYZER
OWNER'S MANUAL
READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT2000EV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DHC BT2000EV

Summary of Contents for DHC BT2000EV

  • Page 1 Model BT2000EV GOLF CART MAINENANCE BATTERY ANALYZER OWNER’S MANUAL READ ENTIRE MANUAL BEFORE USING THIS PRODUCT...
  • Page 2 MODEL NO. BT2000EV GOLF CART MAINTENANCE BATTERY ANALYZER TEST PROCEDURES / OPERATING INSTRUCTIONS IMPORTANT： 1. For testing 6 volt, 8 volt, and 12 volt batteries 2. Suggested operation range 32℉(0℃) to 122℉(50℃) in ambient temperature. Printer Display Directional Keys USB Port...

  • Page 3: Personal Safety Precautions

    WARNING： Pursuant to California Proposition 65, this product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. 1. Working in the vicinity of a lead acid battery is dangerous. Batteries generate explosive gases during normal battery operation.

  • Page 4: Preparing To Test

    Be sure to make colors matched between the connectors and sockets as shown below. black white yellow BT2000EV backside - 3 -...

  • Page 5: Battery Test

    BATTERY TEST 1. Before you test a battery in a vehicle, turn off the ignition, all accessories and loads. 2. Make sure you have put 6 AA 1.5V batteries into the battery chamber. Oxyride batteries are not recommended because of the initial 1.7 Volt output.
  • Page 6 5. Press the ◄ ► key to select Battery Test. Press «ENTER» button. 6. Select the number of batteries from pack to test. # OF BATTERY 1/2/3/4/5/6/7/8 7. Select the battery brand you are going to test. You can find the following battery lineup. BATTERY BRAND: JCI / TROJAN / US BATTERY / EXIDE / DEKA 8.
  • Page 7 BAD & REPLACE BAD & REPLACE XX.XXV The battery will not hold a charge. It should be replaced immediately. BAD CELL & REPLACE BAD CELL & REPLACE XX.XXV The battery has at least one cell short circuit. It should be replaced immediately. 11.

  • Page 8: Language Select

    SETTINGS AND INFORMATION RETRIEVAL LANGUAGE SELECT 1. Hook the tester up to a battery. 2. The tester defaults to the BATTERY TEST display. Press the directional keys to get to the LANGUAGE SELECT display. 3. Press ENTER and the display will show the language options. Press the directional keys to select the language you want the tester to display.
  • Page 9 TEST FLOW Press LEFT / RIGHT buttons to select the following functions when the unit is turned on. BATTERY TEST XX.XX V TEST COUNTER CLEAR MEMORY BAT. TEST: XXXX LANGUAGE INFORMATION SELECT VOLTMETER 2000 / 01 / 01 xx : xx : xx AMMETER BRIGHTNESS - 8 -...
  • Page 10 PC NAVIGATION GUIDE Each BT2000EV comes with a CD, including the drive of the software installation and its user guide. You can follow the instruction to install the specific software for the diverse demand. SOFTWARE INSTALLATION LIST REVIEW TEST RESULT...

  • Page 11: Warranty

    WARRANTY Any battery tester defective in material or workmanship will be repaired or replaced according to published defective return test repair procedures. The existence of a defect shall be determined by the seller in accordance with published procedures. The published test procedures are available upon request.
